I/P Switch Assembly C2 Connector End View

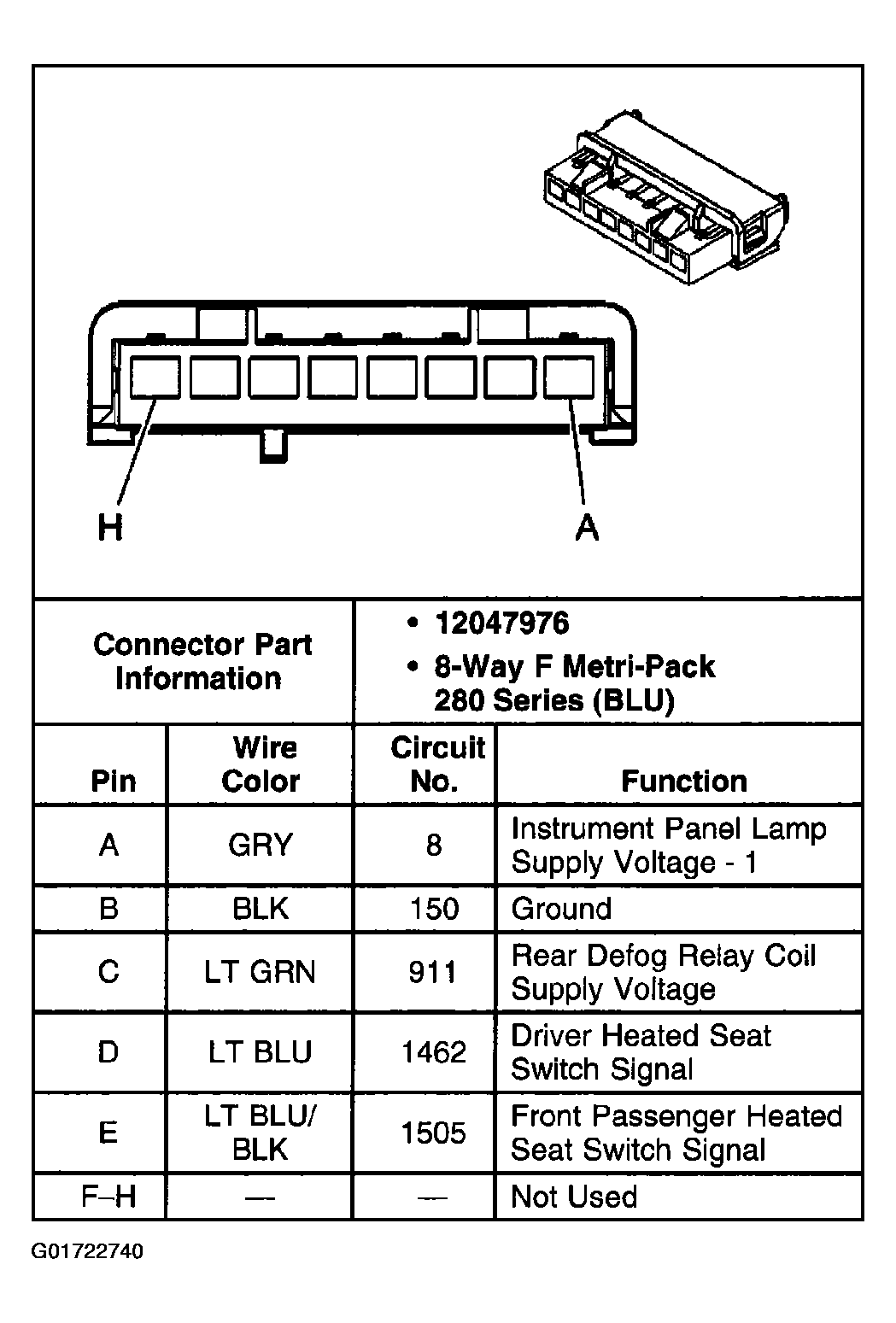

Fig 1: I/P Switch Assembly C2 Connector End View
G01722740Courtesy of GENERAL MOTORS CORP.

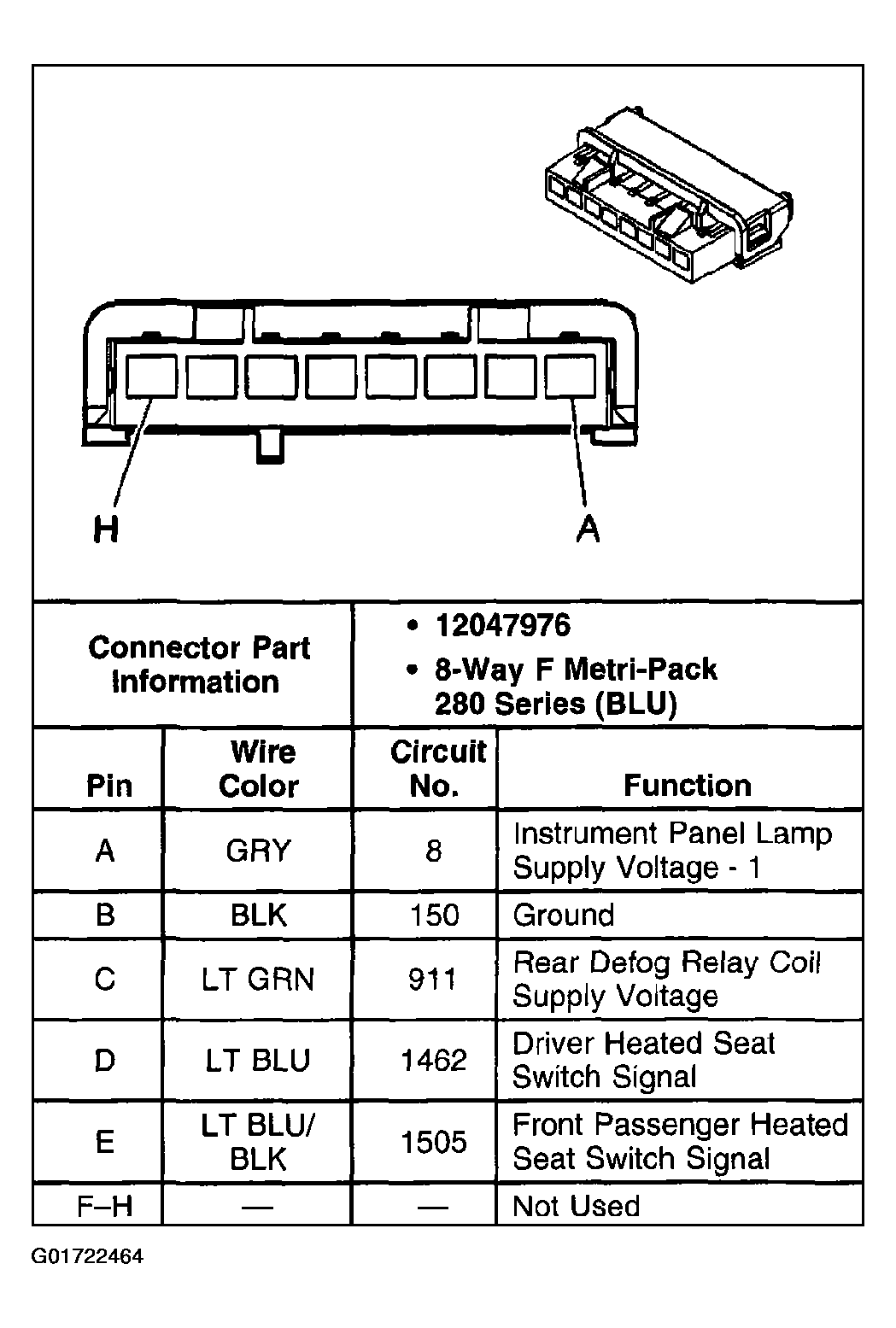

Fig 1: I/P Switch Assembly C2 Connector End View
G01722464Courtesy of GENERAL MOTORS CORP.
