Automatic Level Control (ALC) Inflator Time Relay Connector End View

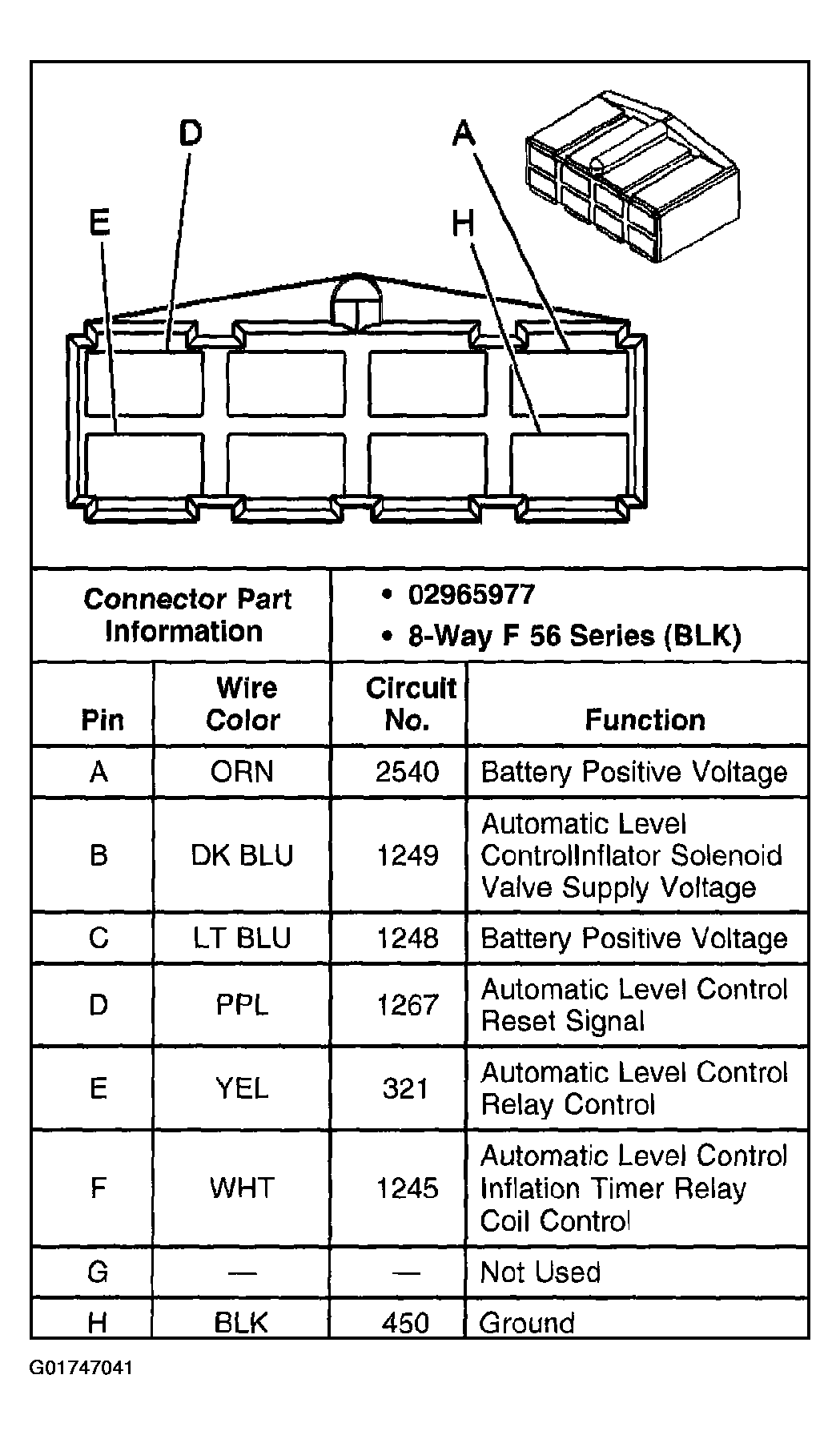

Fig 1: Automatic Level Control (ALC) Inflator Time Relay

G01747041

Courtesy of GENERAL MOTORS CORP.
