Automatic Level Control (ALC) Compressor Relay Connector End View (2 Of 2)

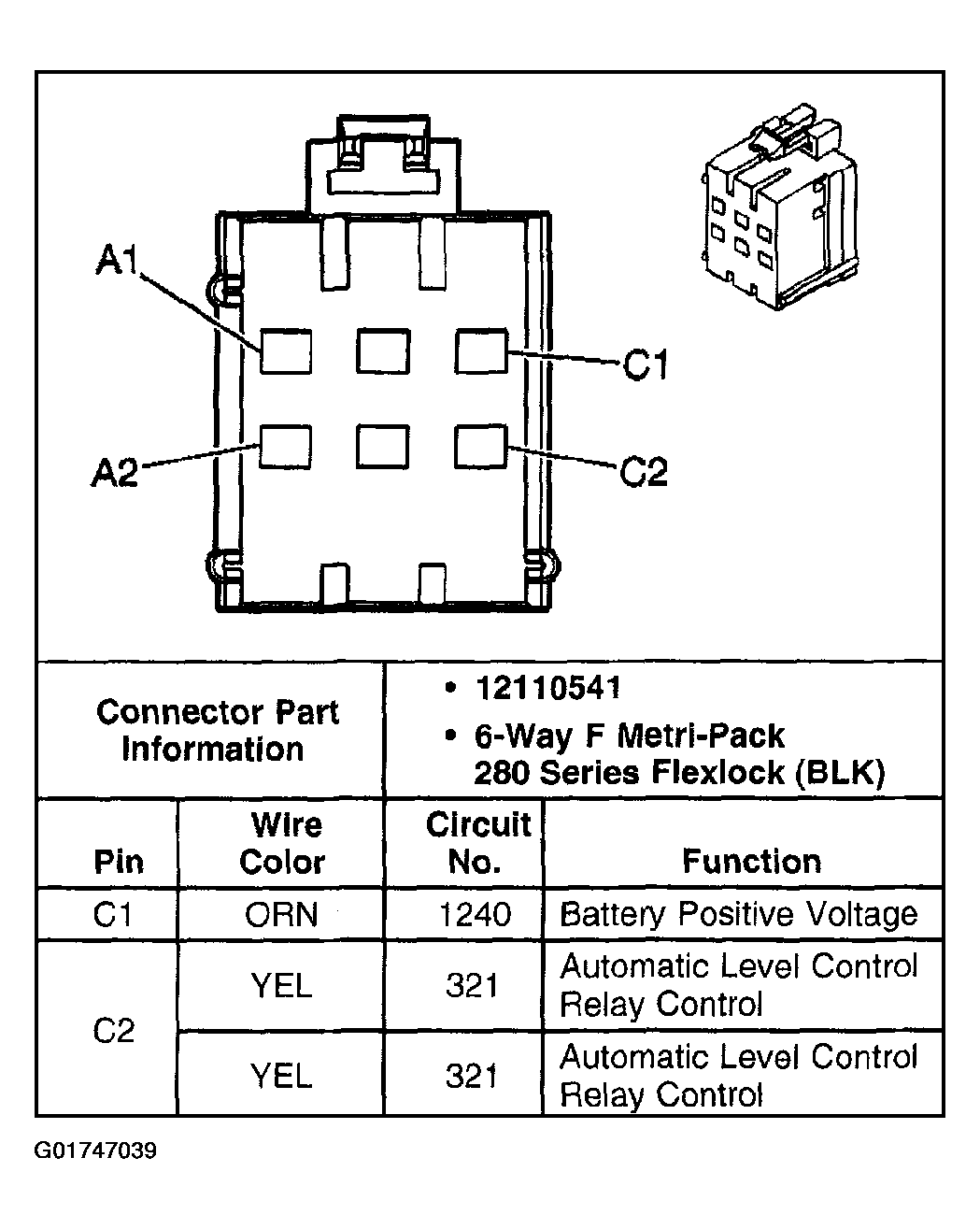

Fig 1: Automatic Level Control (ALC) Compressor Relay (2 Of 2)

G01747039

Courtesy of GENERAL MOTORS CORP.
