Ignition Control Module C1 Connector End View

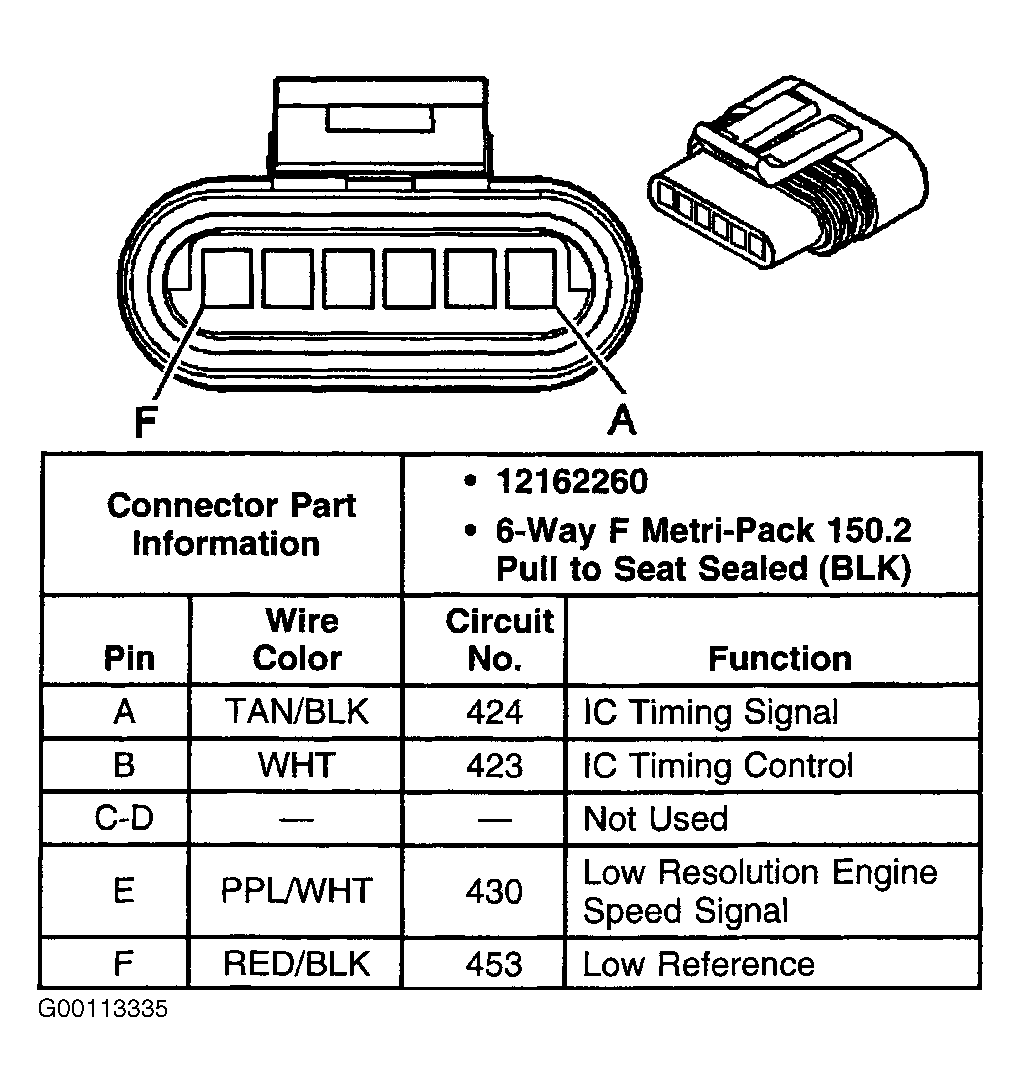

Fig 1: Ignition Control Module C1 Connector End View

G00113335

Courtesy of GENERAL MOTORS CORP.
