HVAC Control Module Connector End View

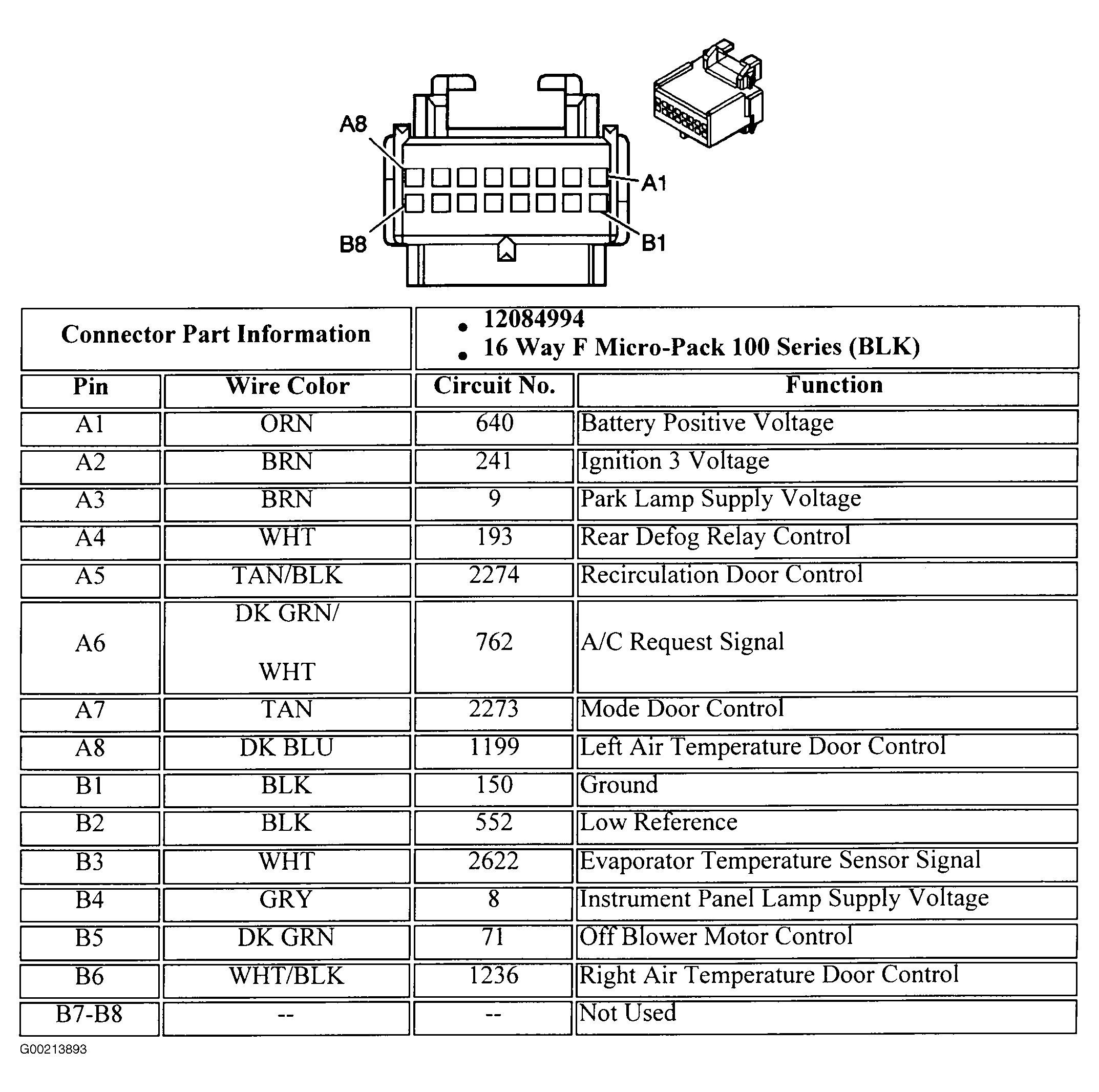

Fig 1: HVAC Control Module Connector End View

G00213893

Courtesy of GENERAL MOTORS CORP.

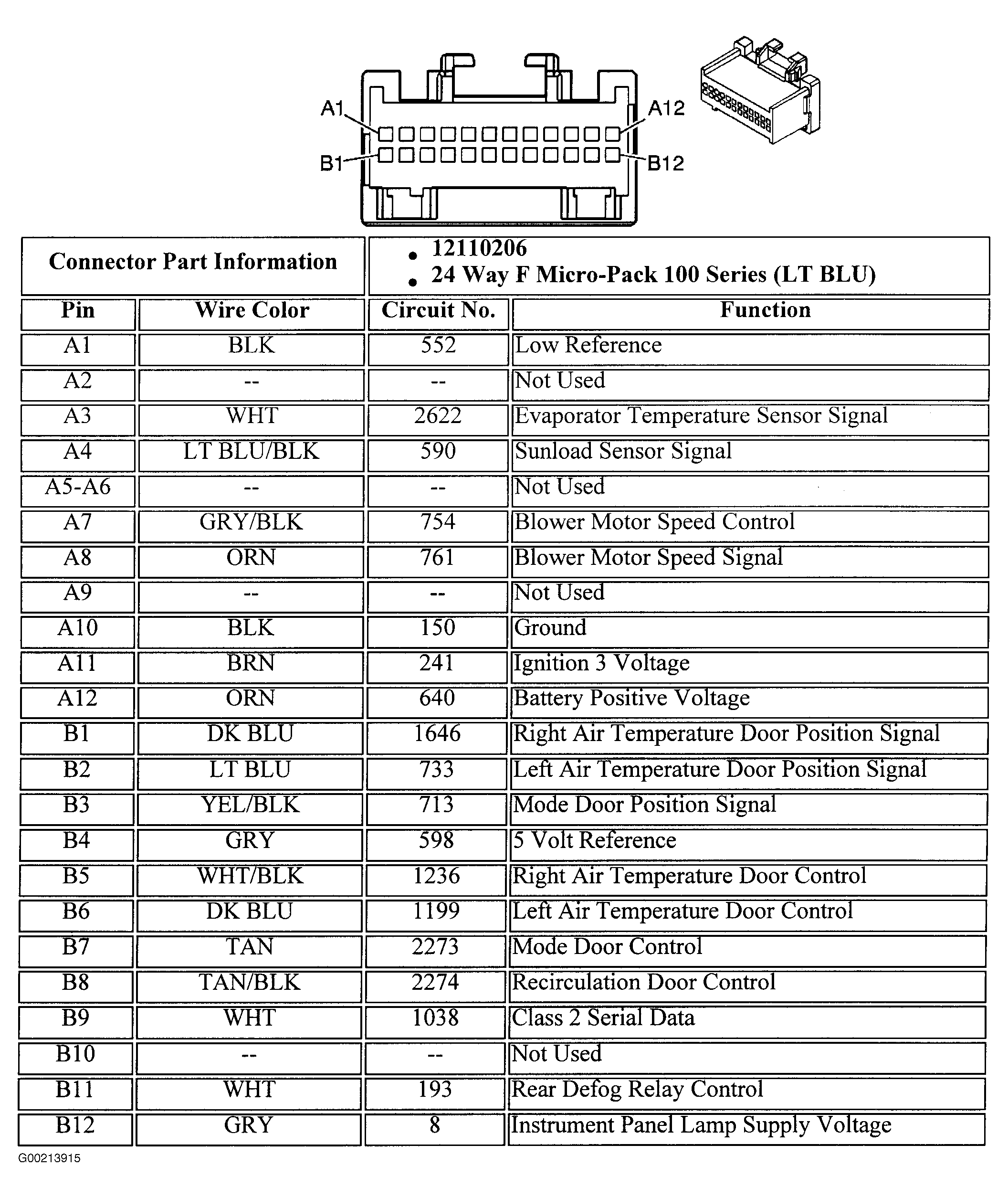

Fig 1: HVAC Control Module Connector End View

G00213915

Courtesy of GENERAL MOTORS CORP.
