Scan Tool Output Controls

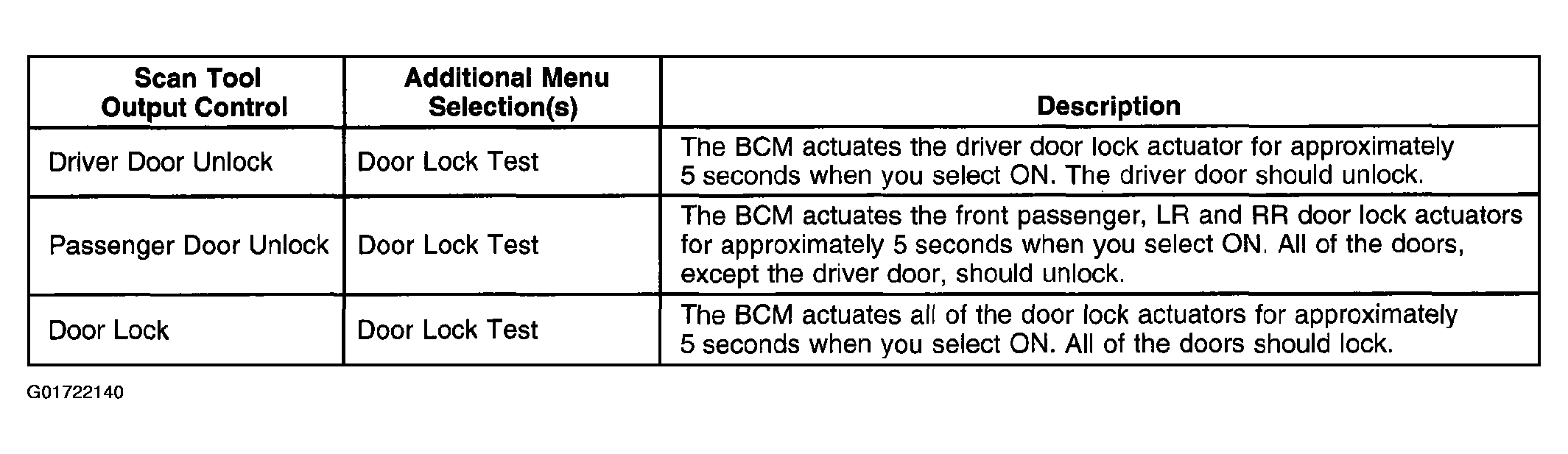

Fig 1: Body Control Module

G01722140

Courtesy of GENERAL MOTORS CORP.

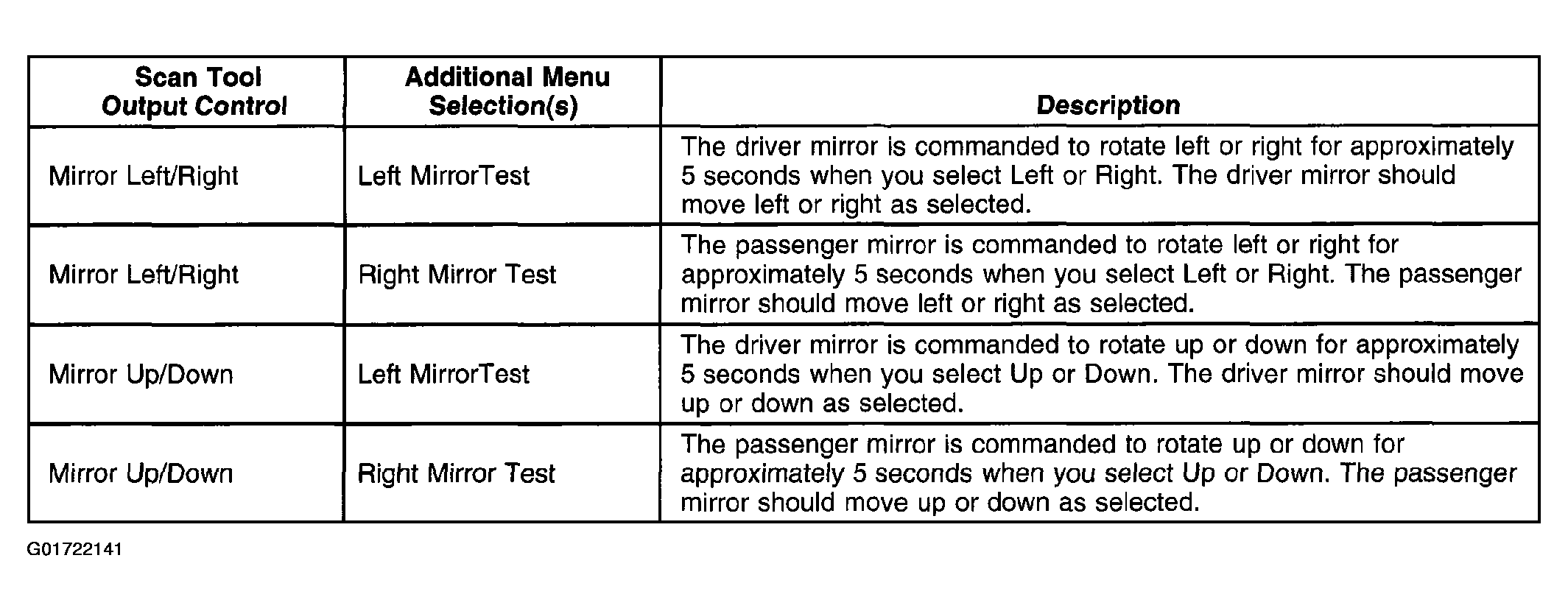

Fig 2: Memory Seat Module

G01722141

Courtesy of GENERAL MOTORS CORP.
