Power Door Systems Component Views

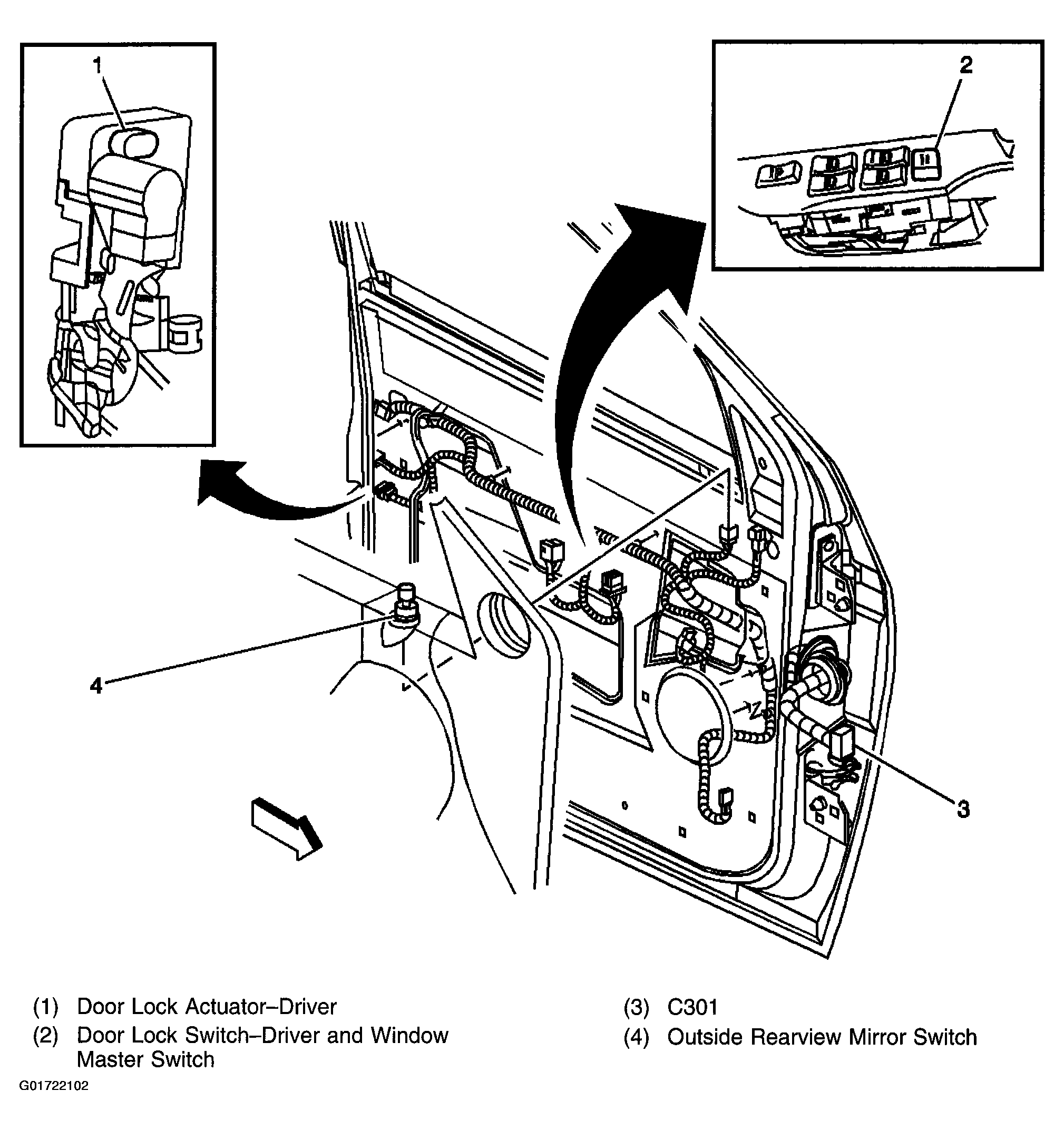

Fig 1: Door Component View - Driver
G01722102Courtesy of GENERAL MOTORS CORP.

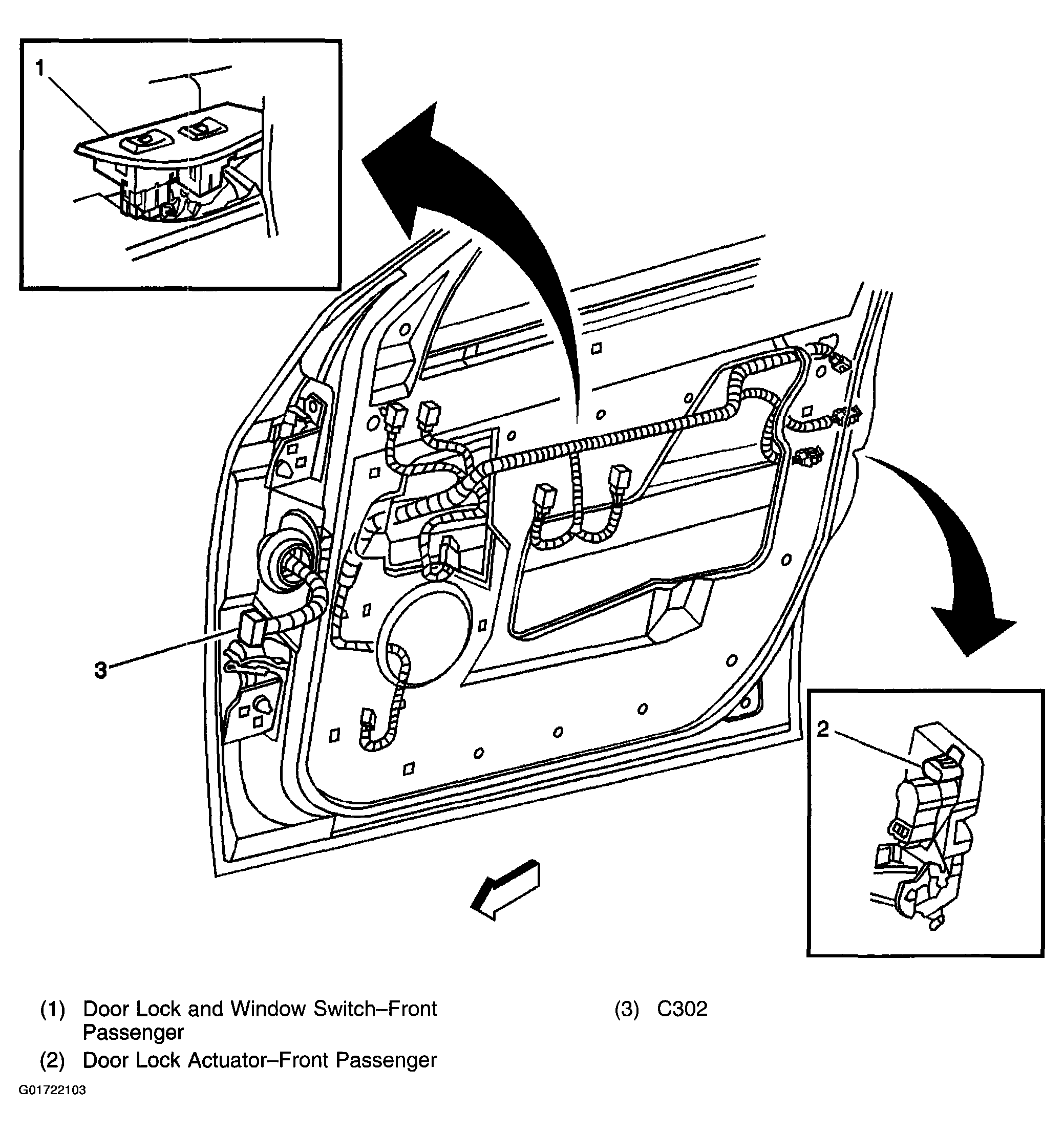

Fig 2: Door Component View - Front Passenger
G01722103Courtesy of GENERAL MOTORS CORP.
Fig 3: Door Component View - LR
G01722104Courtesy of GENERAL MOTORS CORP.

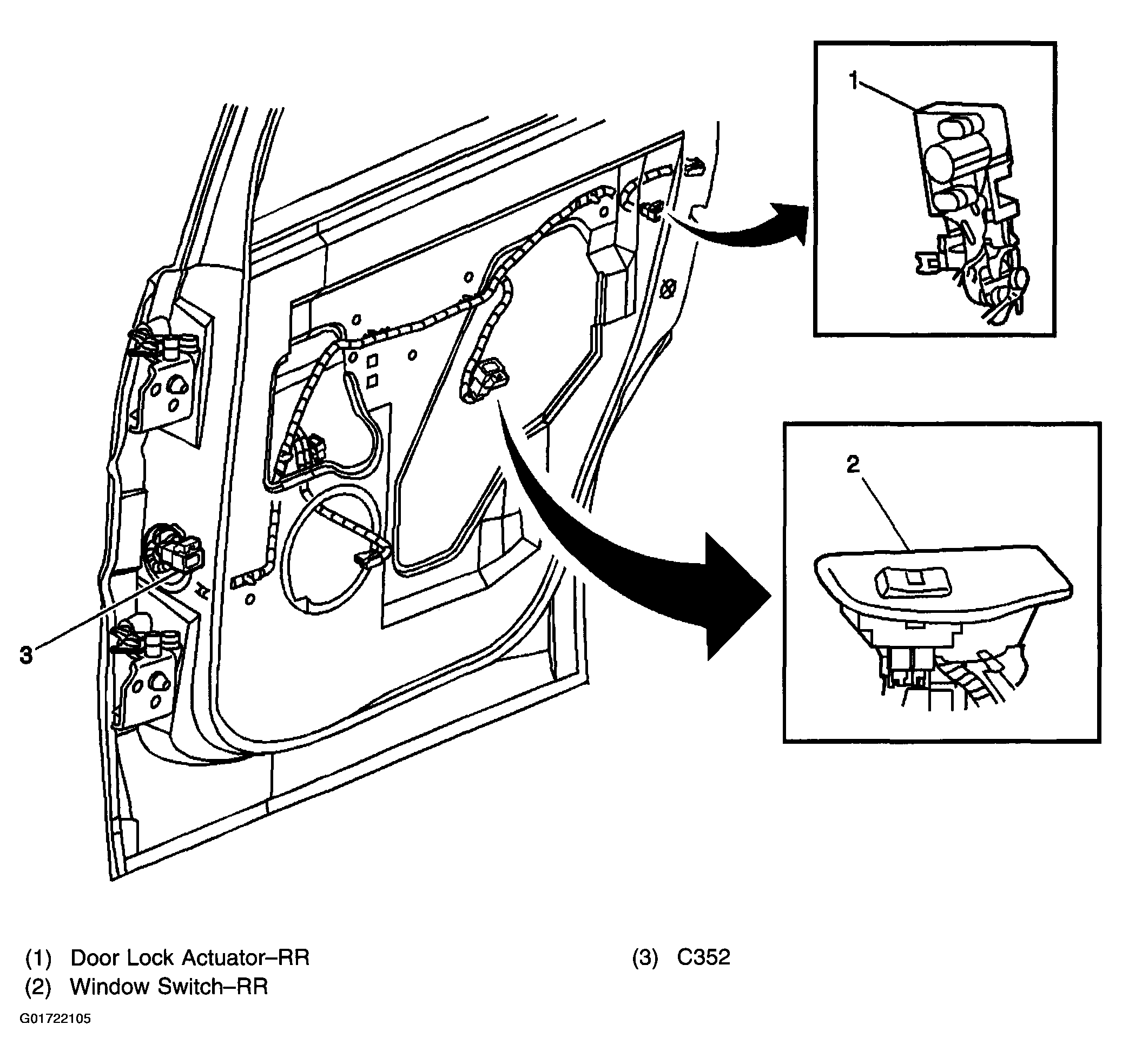

Fig 4: Door Component View - RR
G01722105Courtesy of GENERAL MOTORS CORP.
