Wiper/Washer System Connector End Views

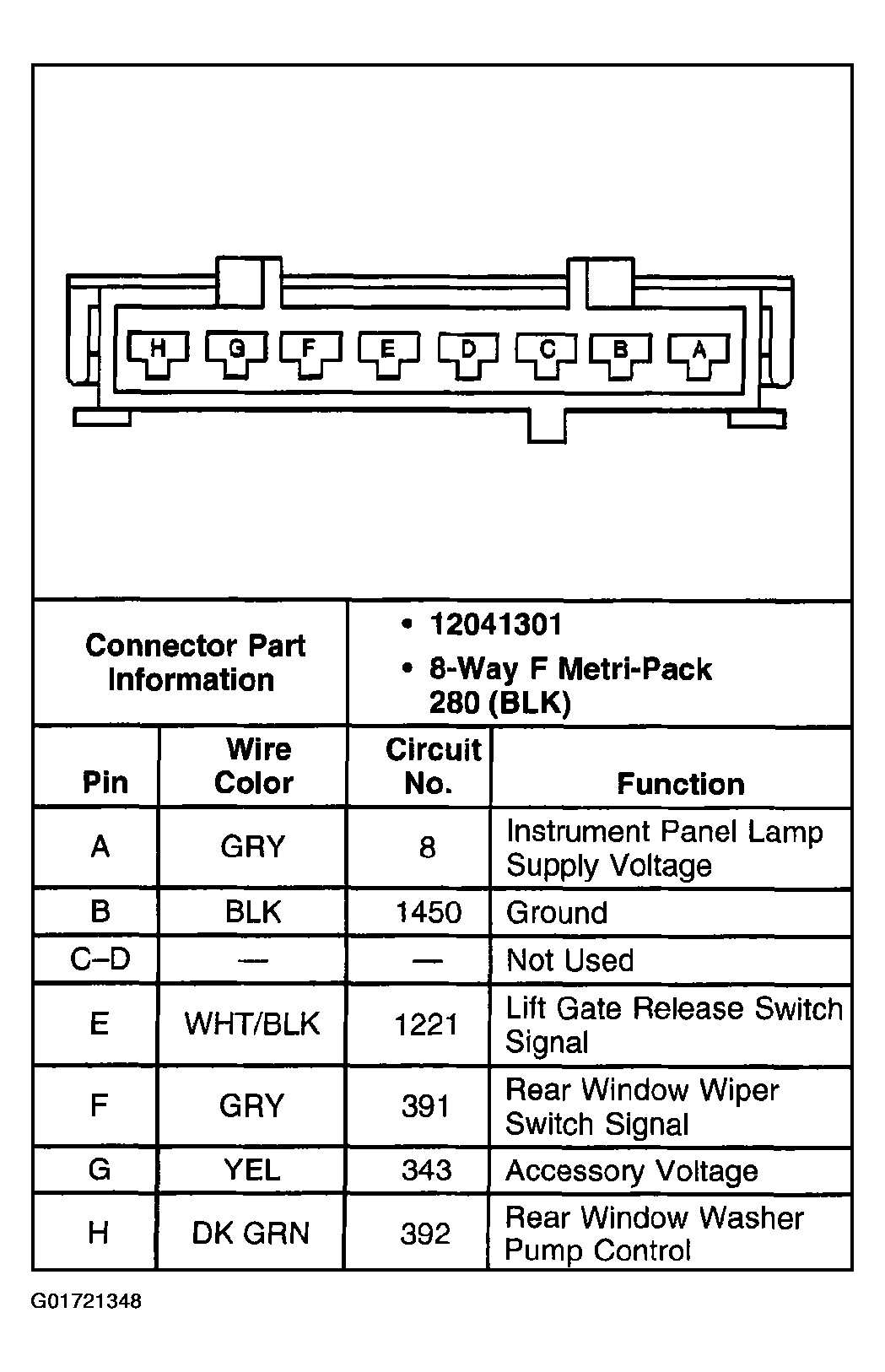

Fig 1: I/P Switch Assembly C1 (Buick) Connector End View

Courtesy of GENERAL MOTORS CORP.

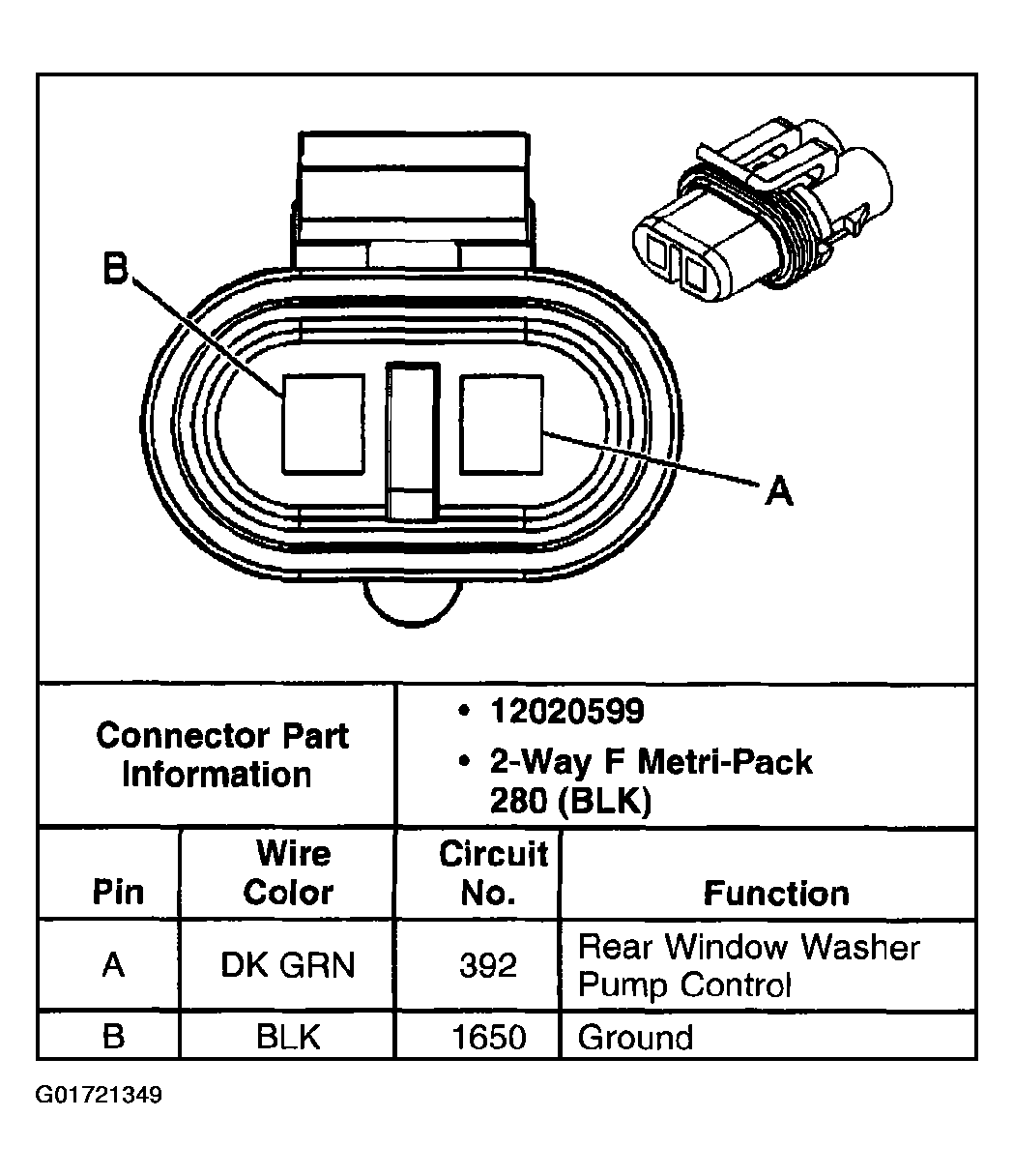

Fig 2: Rear Window Washer Fluid Pump (Buick) Connector End View

Courtesy of GENERAL MOTORS CORP.

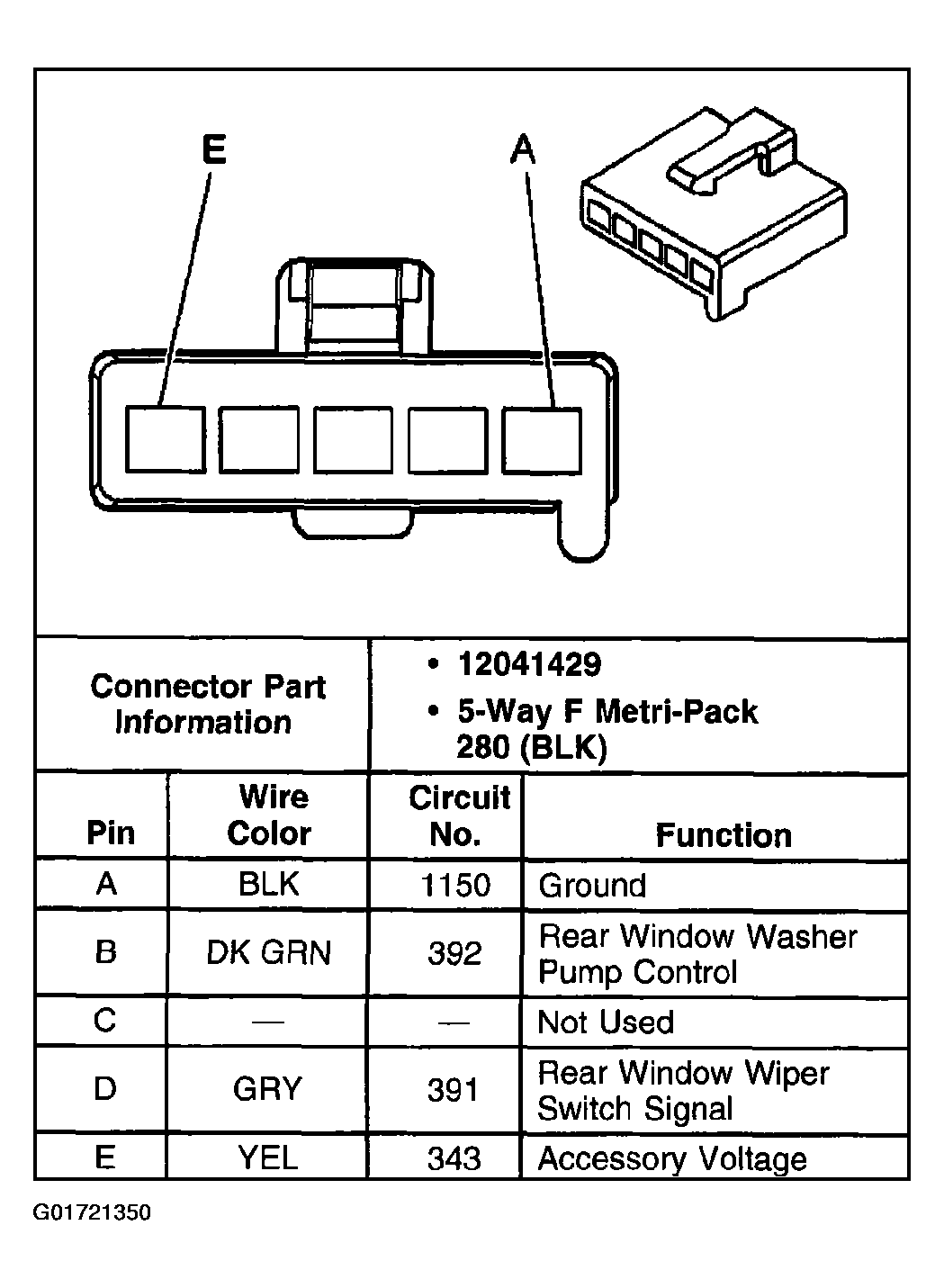

Fig 3: Rear Window Wiper Motor (Buick) Connector End View

Courtesy of GENERAL MOTORS CORP.

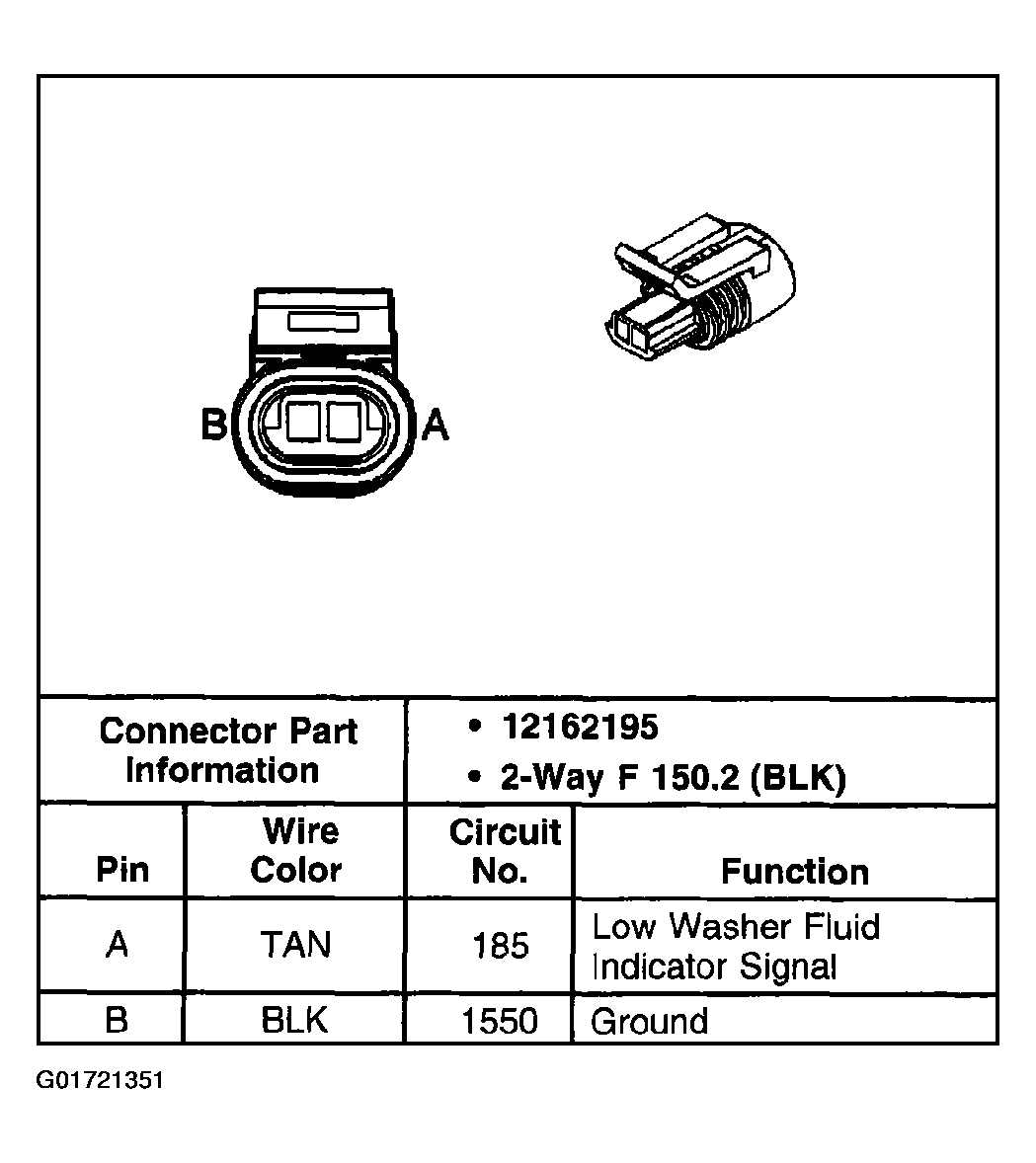

Fig 4: Windshield Washer Fluid Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

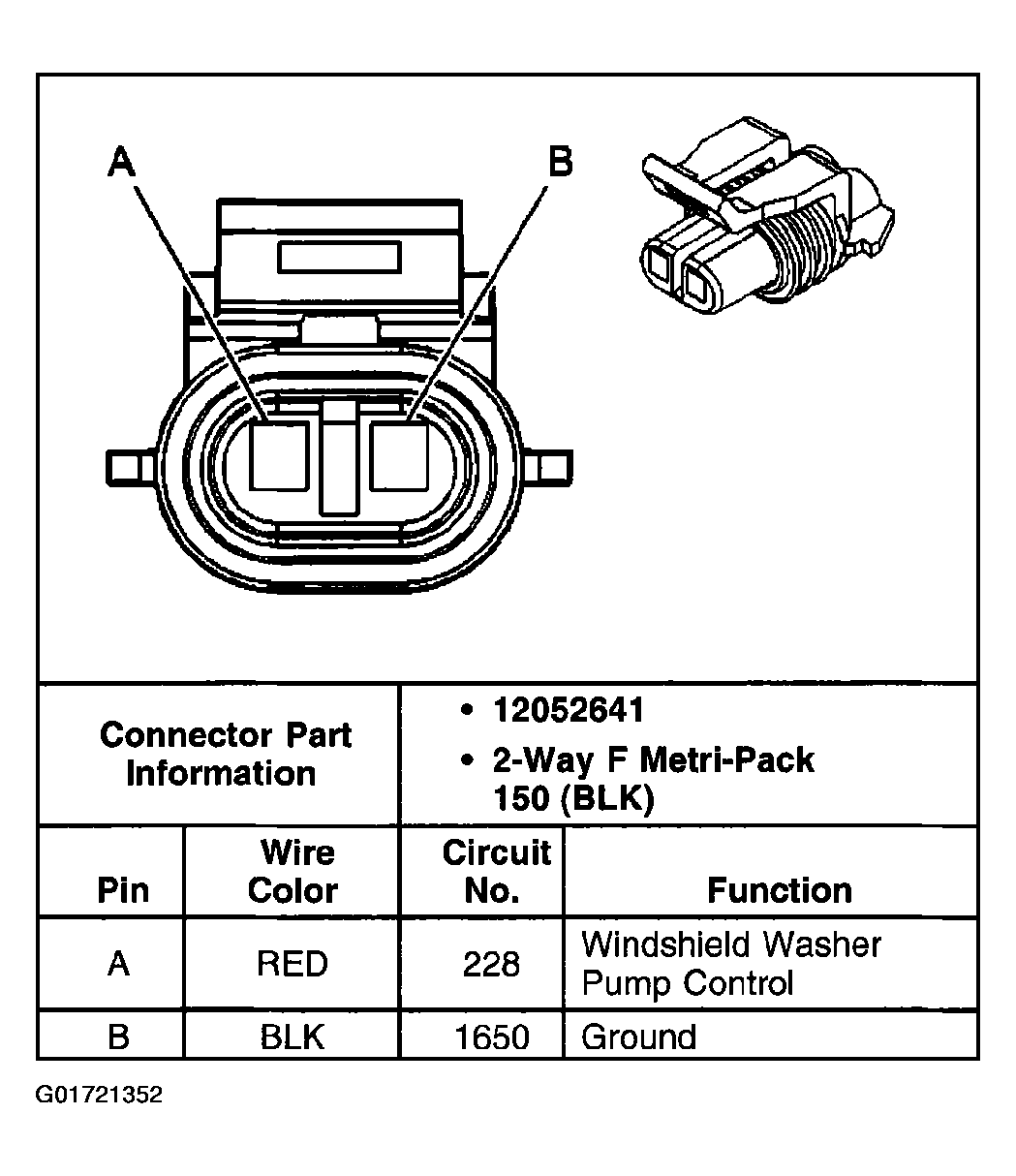

Fig 5: Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.

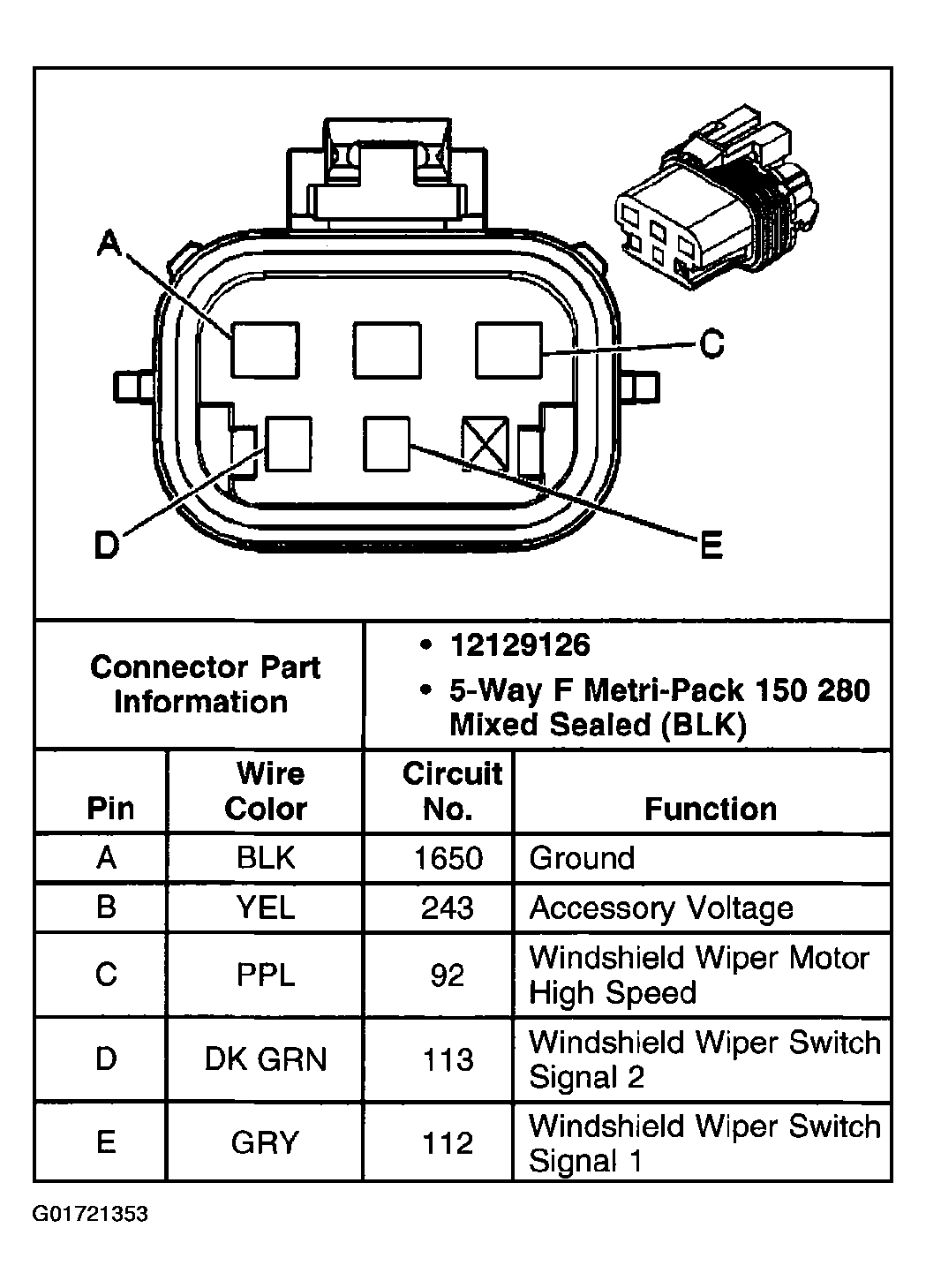

Fig 6: Windshield Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.

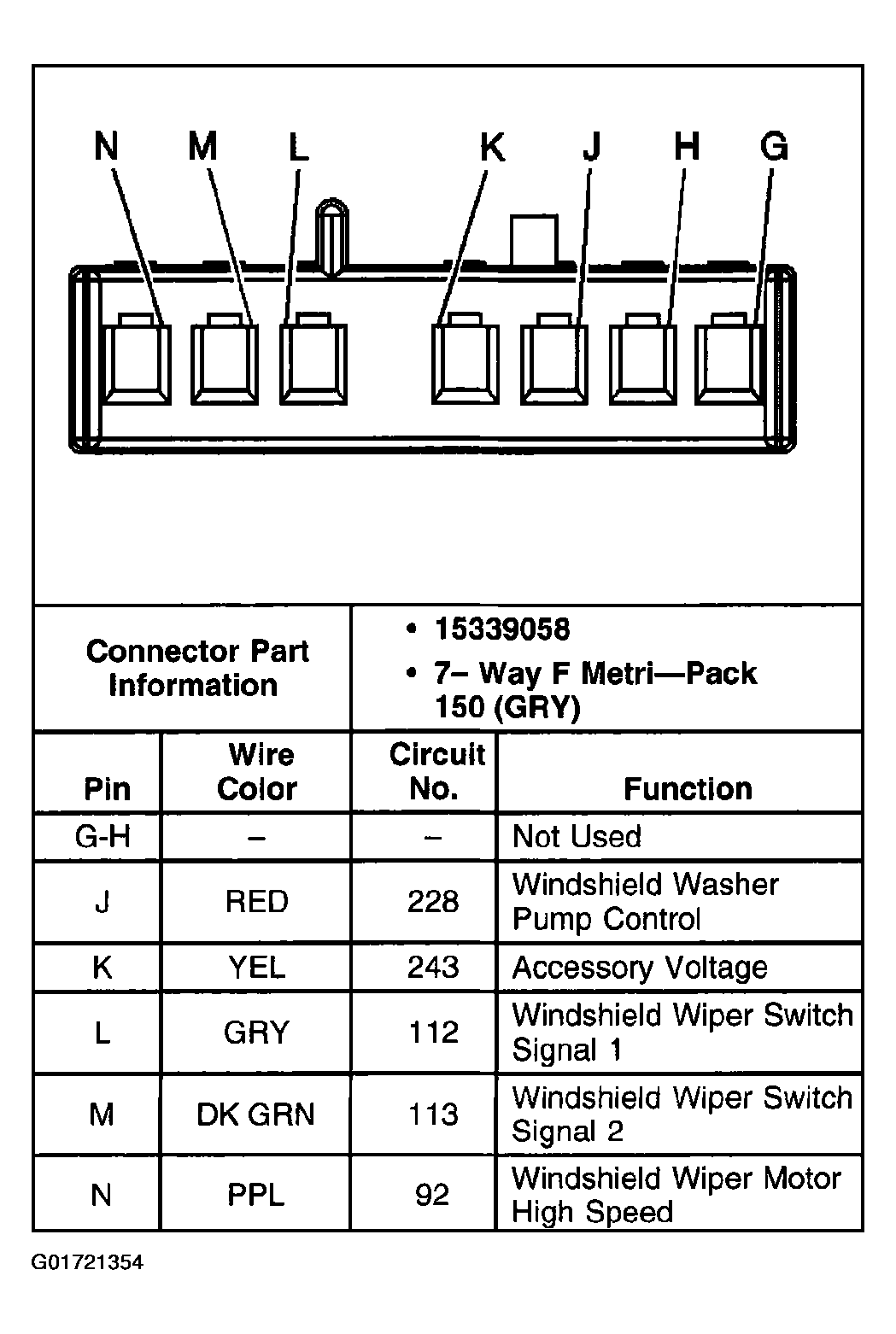

Fig 7: Turn Signal/Multifunction Switch C3 Connector End View

Courtesy of GENERAL MOTORS CORP.
