Cellular Communication Component Views

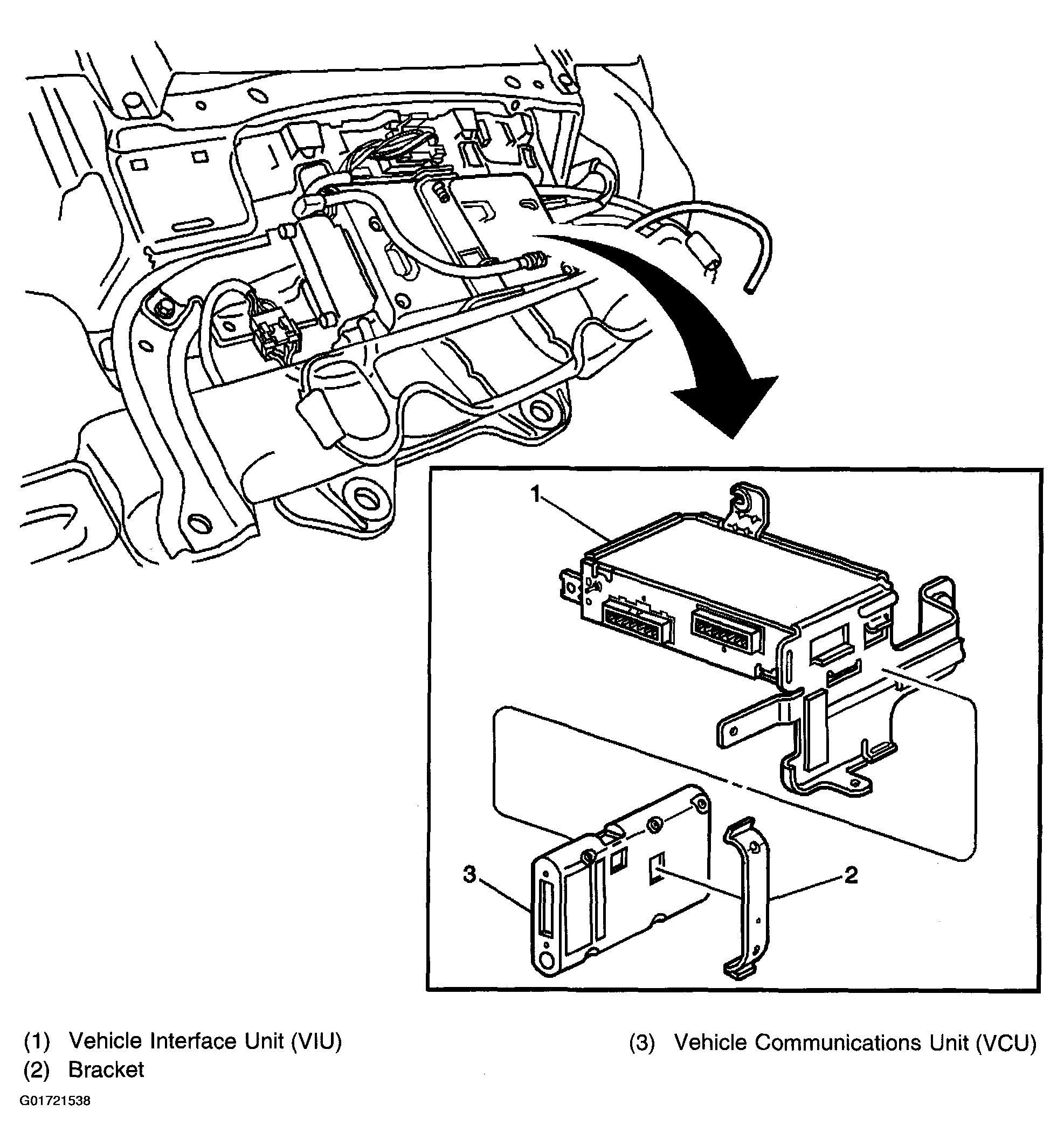

Fig 1: Front Of I/P Component Views
G01721538Courtesy of GENERAL MOTORS CORP.

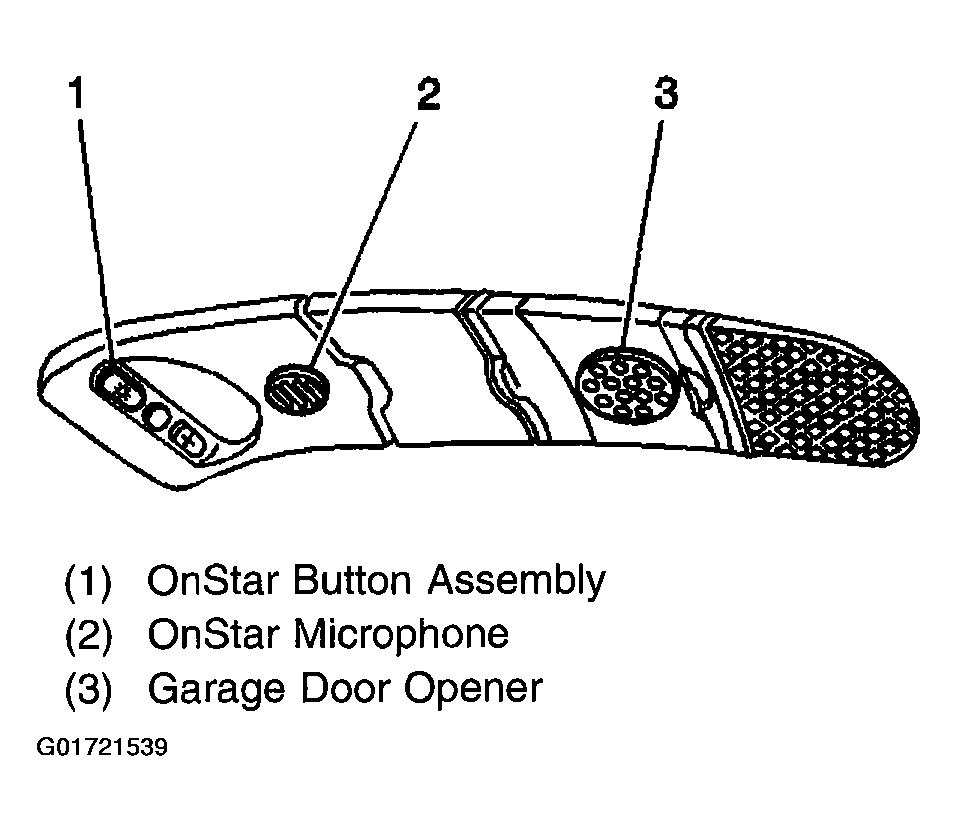

Fig 2: Overhead Console Component Views
G01721539Courtesy of GENERAL MOTORS CORP.
