Body Control Module Schematics (Power, Ground and Serial Data)

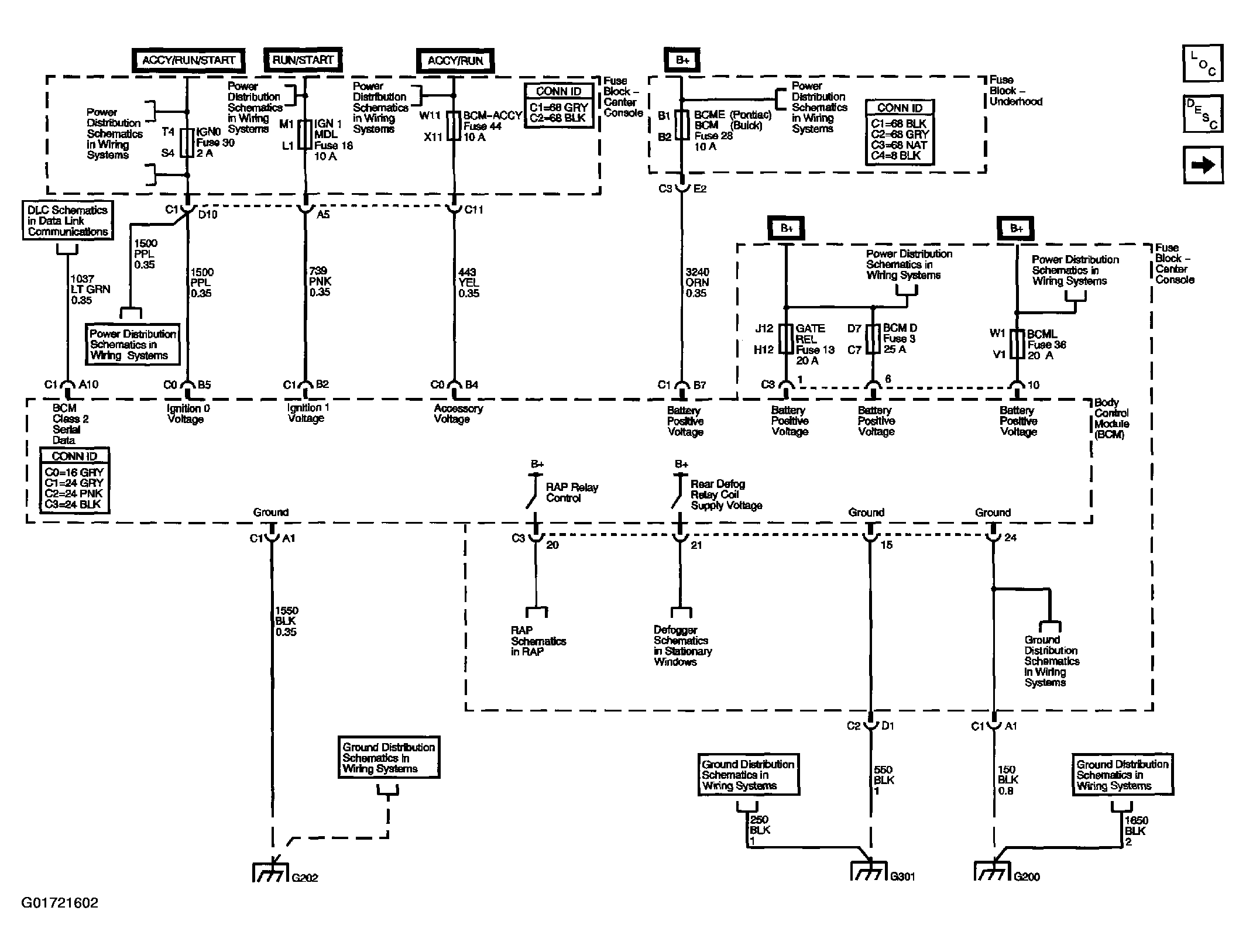

Fig 1: Body Control Module Schematics (Power, Ground and Serial Data)

Courtesy of GENERAL MOTORS CORP.

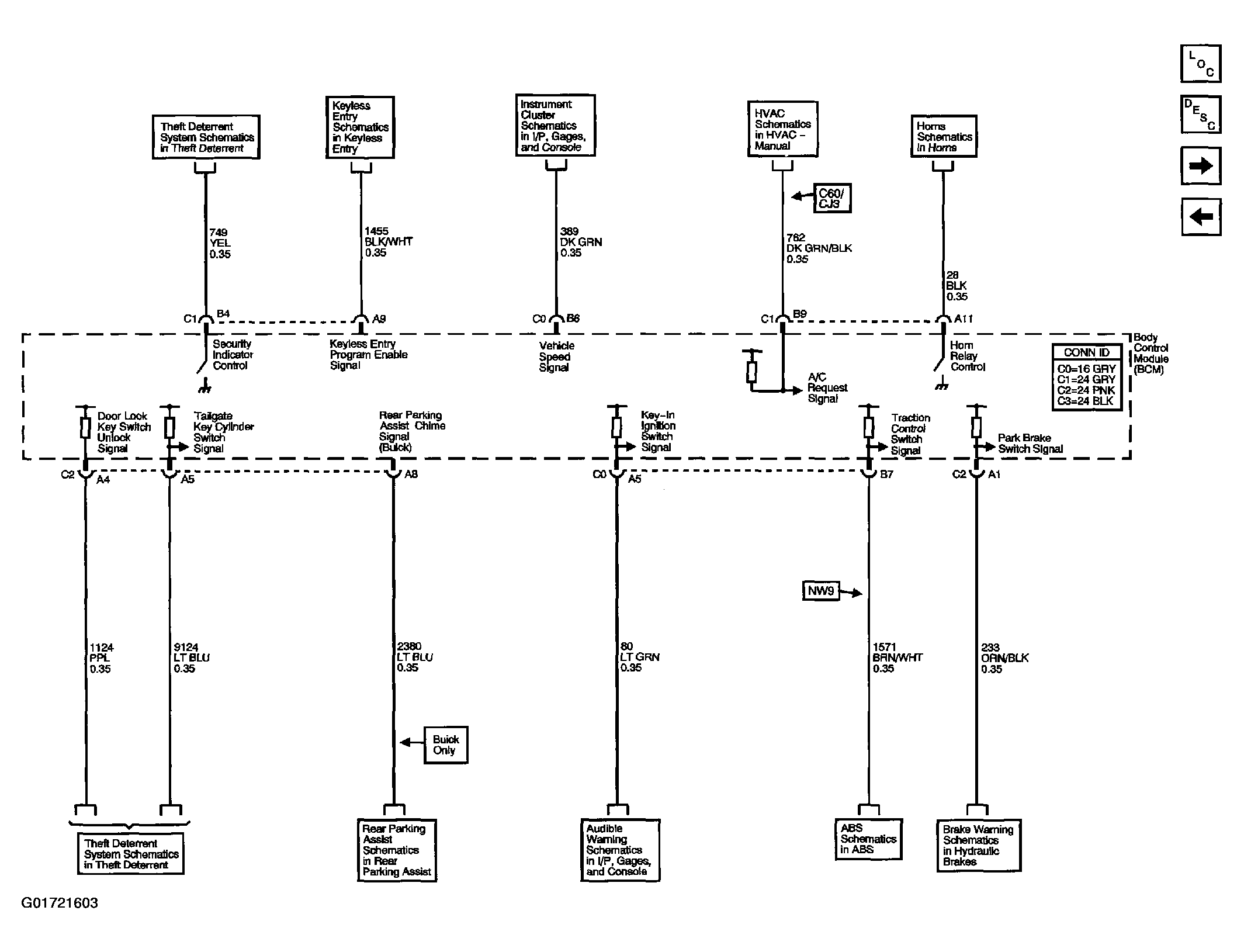

Fig 2: Body Control Module Schematics (Subsystem References)

Courtesy of GENERAL MOTORS CORP.

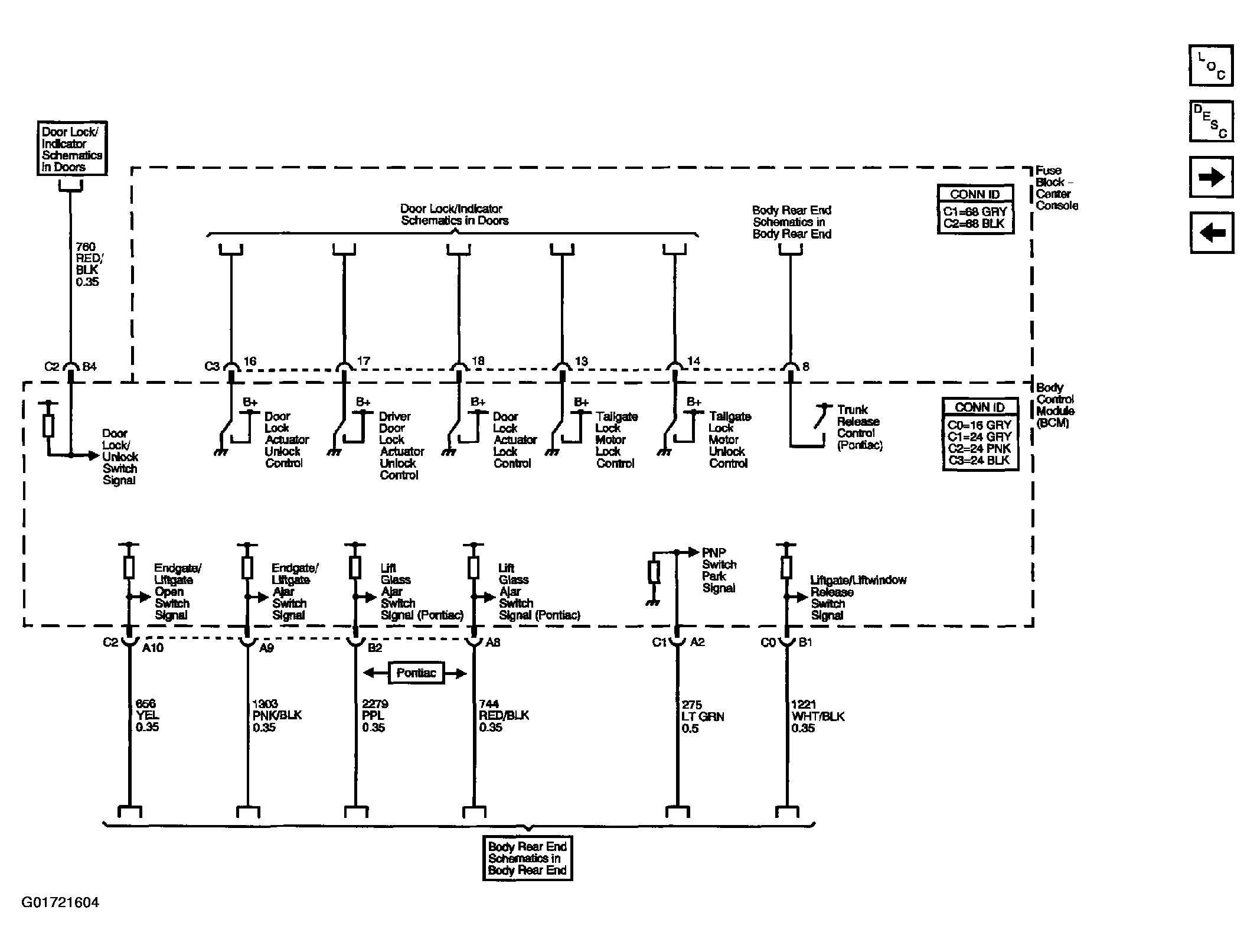

Fig 3: Body Control Module Schematics (Door and Body Rear End References)

Courtesy of GENERAL MOTORS CORP.

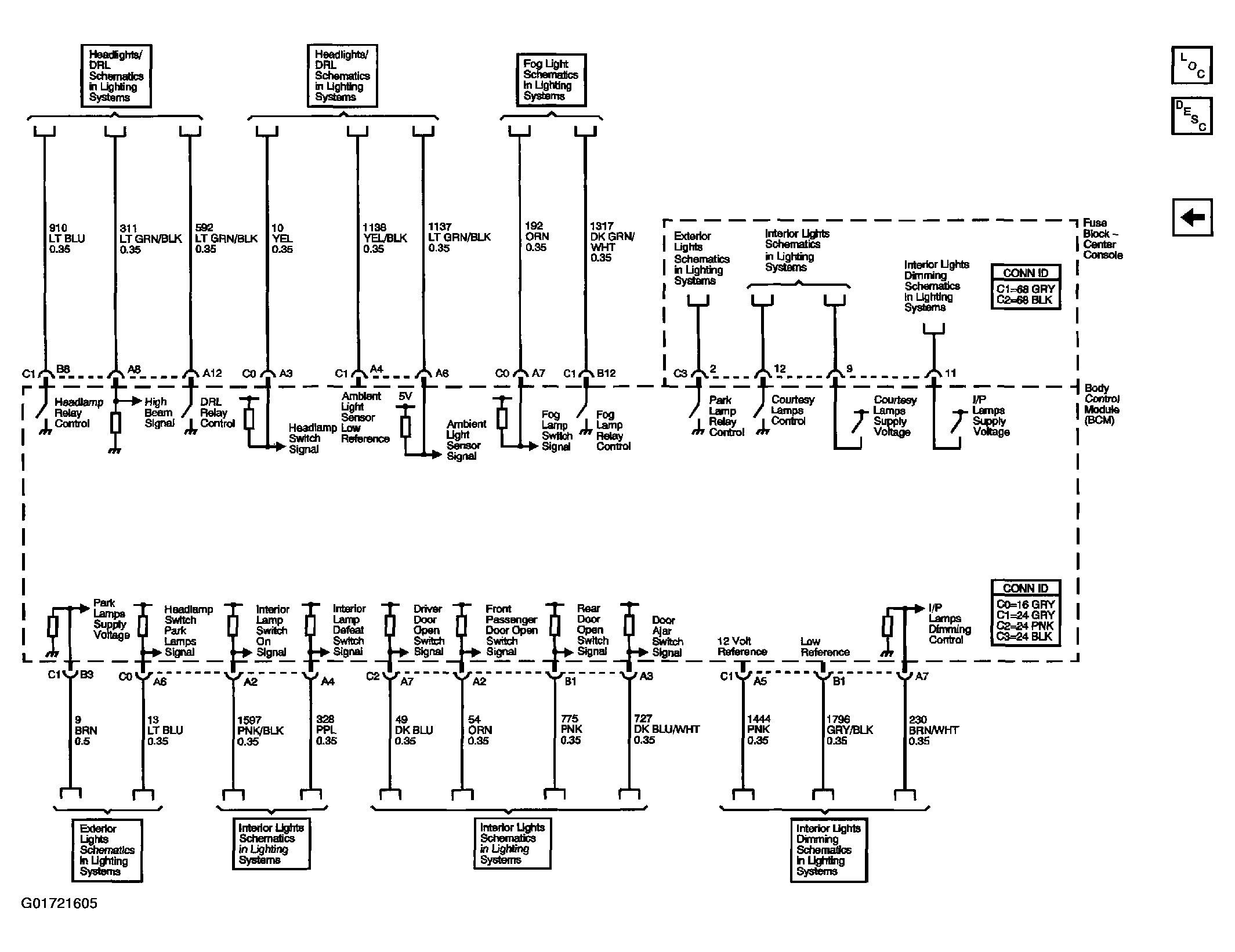

Fig 4: Body Control Module Schematics (Lighting References)

Courtesy of GENERAL MOTORS CORP.
