Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 5 .
KEYLESS ENTRY COMPONENT LOCATION

Component Location
Body Control Module Below Left Side Of Instrument Panel, Left Of Steering Column
Instrument Panel Fuse Block Right Side Of Instrument Panel, In Glove Box
Remote Control Door Lock Receiver Behind Left Side Of Instrument Panel, Behind Driver Information Center
Trunk Lid Release Relay Behind Left Side Of Instrument Panel
Underhood Fuse Block Right Side Of Engine Compartment, Mounted To Strut Tower
Fig 1: Locating Body Control Module
G00012724Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Instrument Panel Fuse Block
G00052828Courtesy of GENERAL MOTORS CORP.

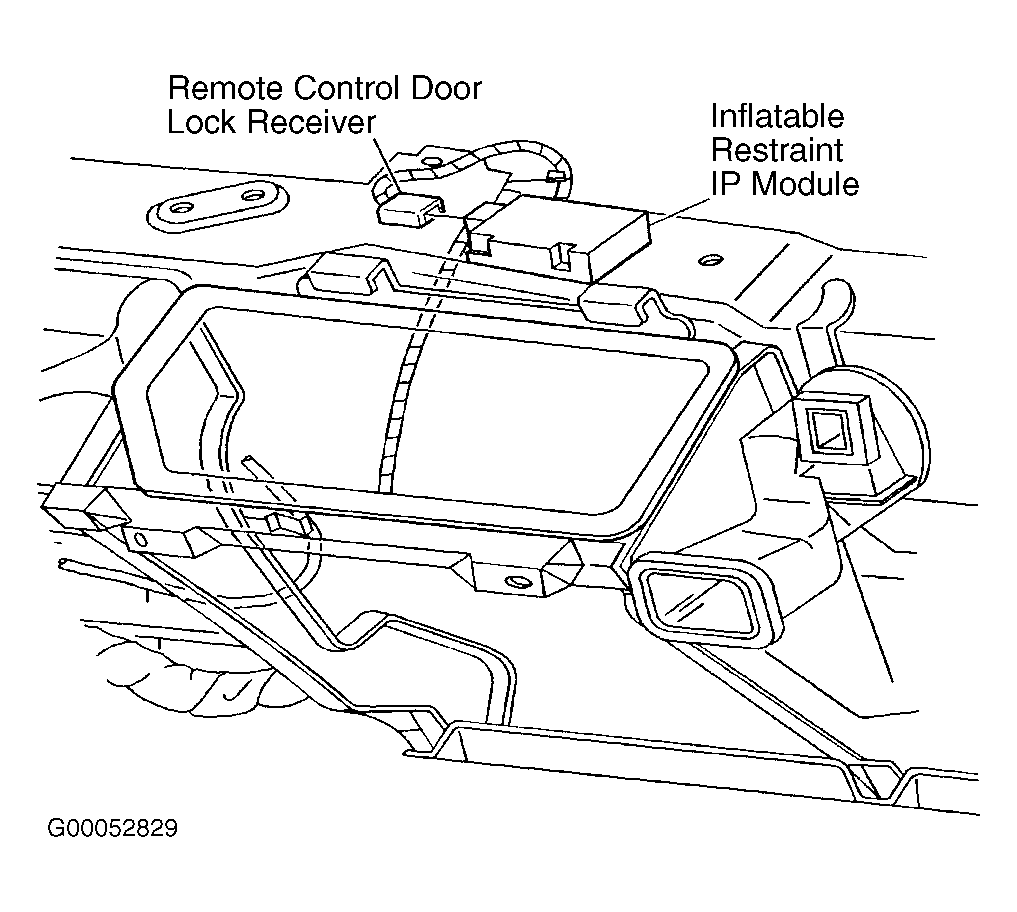

Fig 3: Locating Remote Control Door Lock Receiver
G00052829Courtesy of GENERAL MOTORS CORP.

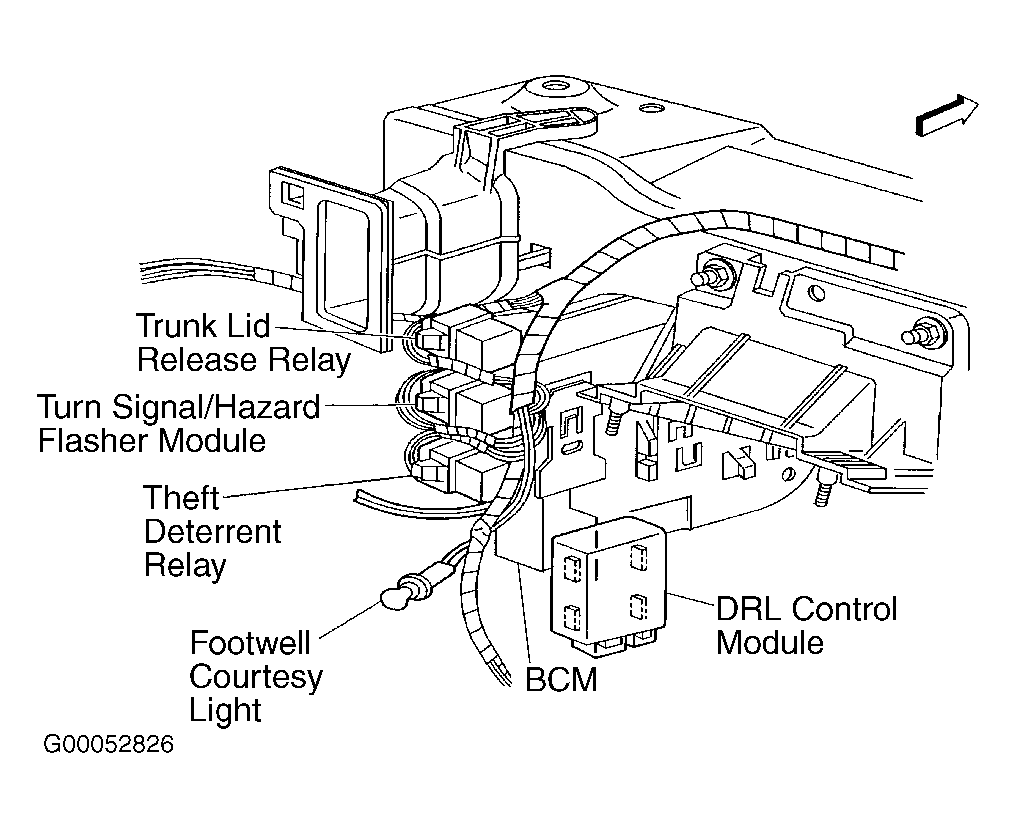

Fig 4: Locating Trunk Lid Release Relay
G00052826Courtesy of GENERAL MOTORS CORP.
Fig 5: Locating Underhood Fuse Block
G00052825Courtesy of GENERAL MOTORS CORP.
