Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 3 .

COMPONENT LOCATIONS

Component	Location
Instrument Panel Fuse Block	Right Side Of instrument Panel, In Glove Box Opening
Power Mirror Switch	Driver's Door Panel
Power Mirror Switch Ground Point	Inside Left Door Sill, Forward Of Left Front Seat

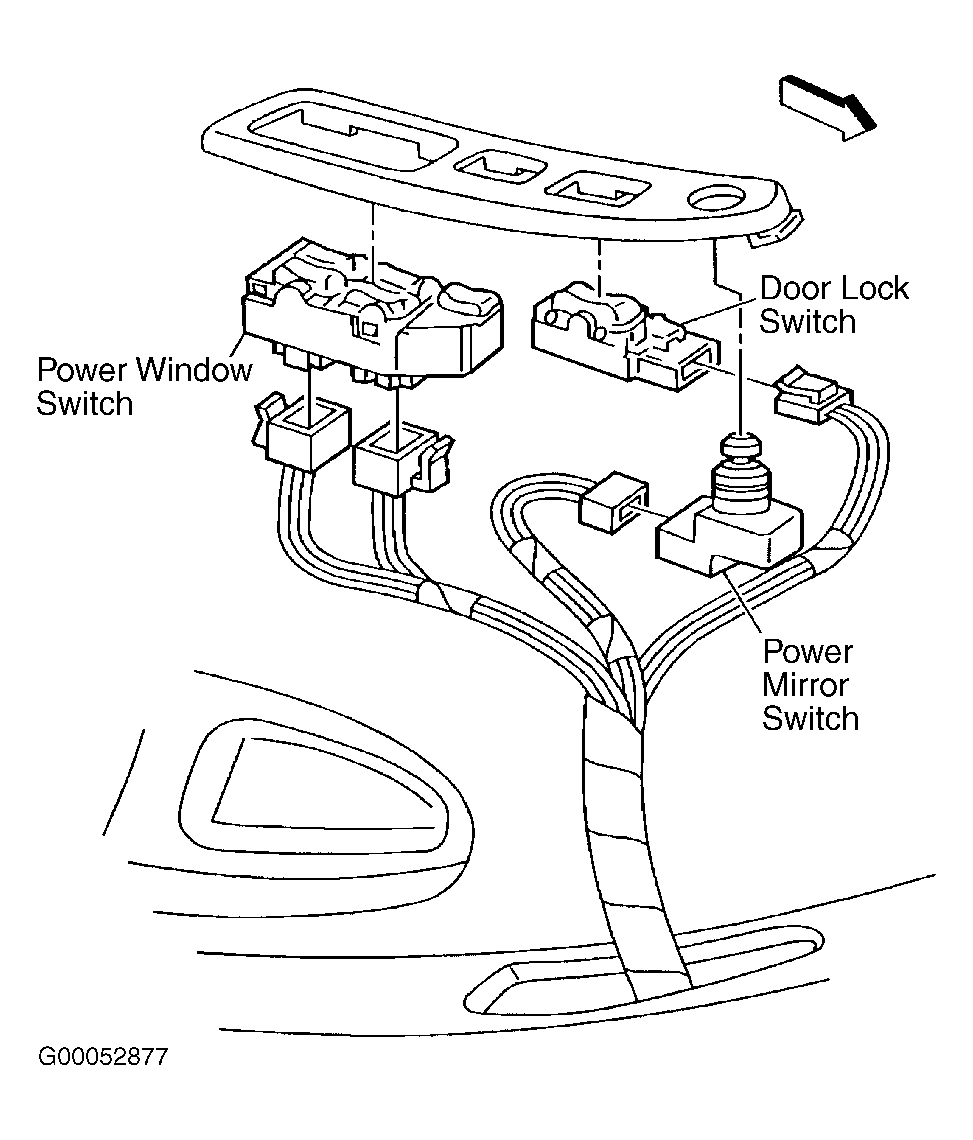

Fig 1: Identifying Driver's Door Switches (4-Door Shown)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

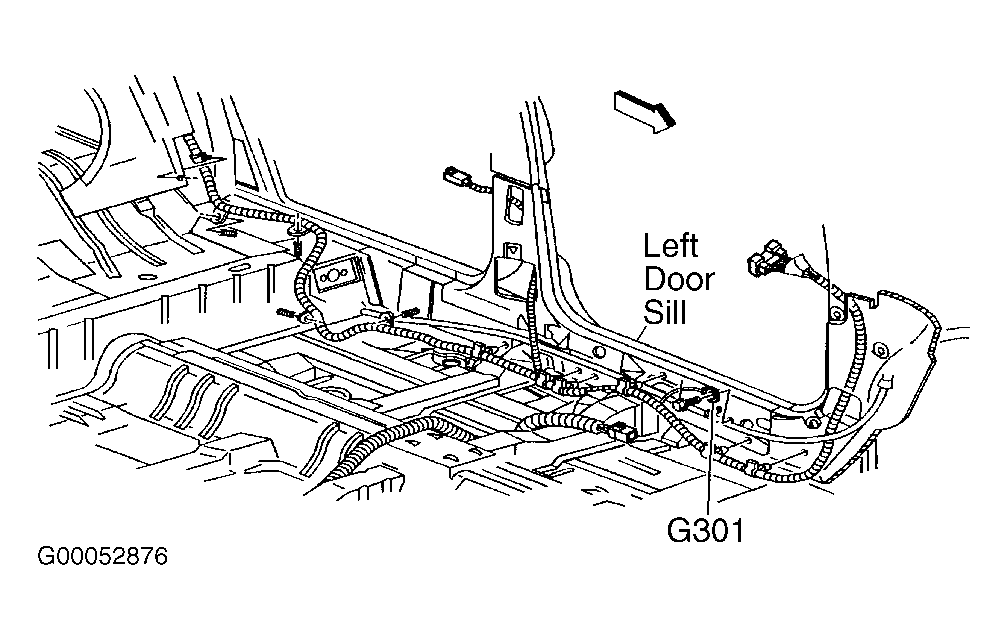

Fig 3: Locating Power Window Switch Ground Point

Courtesy of GENERAL MOTORS CORP.
