Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 8 . RAP module may also be referred to as Accessory Time Delay (ATD) module.
COMPONENT LOCATIONS

Component Location
Body Control Module Behind Left Side Of Instrument Panel
Data Link Connector Bottom Of Instrument Panel, Right Of Steering Column
Door Lock Ajar Switch In Rear Of Respective Door, In Door Latch
Horn Relay In Underhood Fuse Block
Instrument Panel Fuse Block Behind Right Side Of Instrument Panel, In Glove Box
Powertrain Control Module Left Side Of Engine Compartment
Remote Control Door Lock Receiver Behind Left Side Of Instrument Panel, Behind Driver Information Center
Retained Accessory Power Module Behind Right Side Of Instrument Panel, Mounted To Cross Beam Above Instrument Panel Fuse Block
Theft Deterrent Relay Mounted To Front Of BCM Mounting Bracket
Underhood Fuse Block Mounted To Right Front Strut Tower
Vehicle Communication Unit Left Rear Of Trunk Compartment
Vehicle Interface Unit Left Rear Of Trunk Compartment
Fig 1: Identifying Body Control Module Connectors & Location
G99C08634Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Data Link Connector
G00052827Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Daytime Running Lights Module & Theft Deterrent Relay
G00052826Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Instrument Panel Fuse Block
G00052828Courtesy of GENERAL MOTORS CORP.

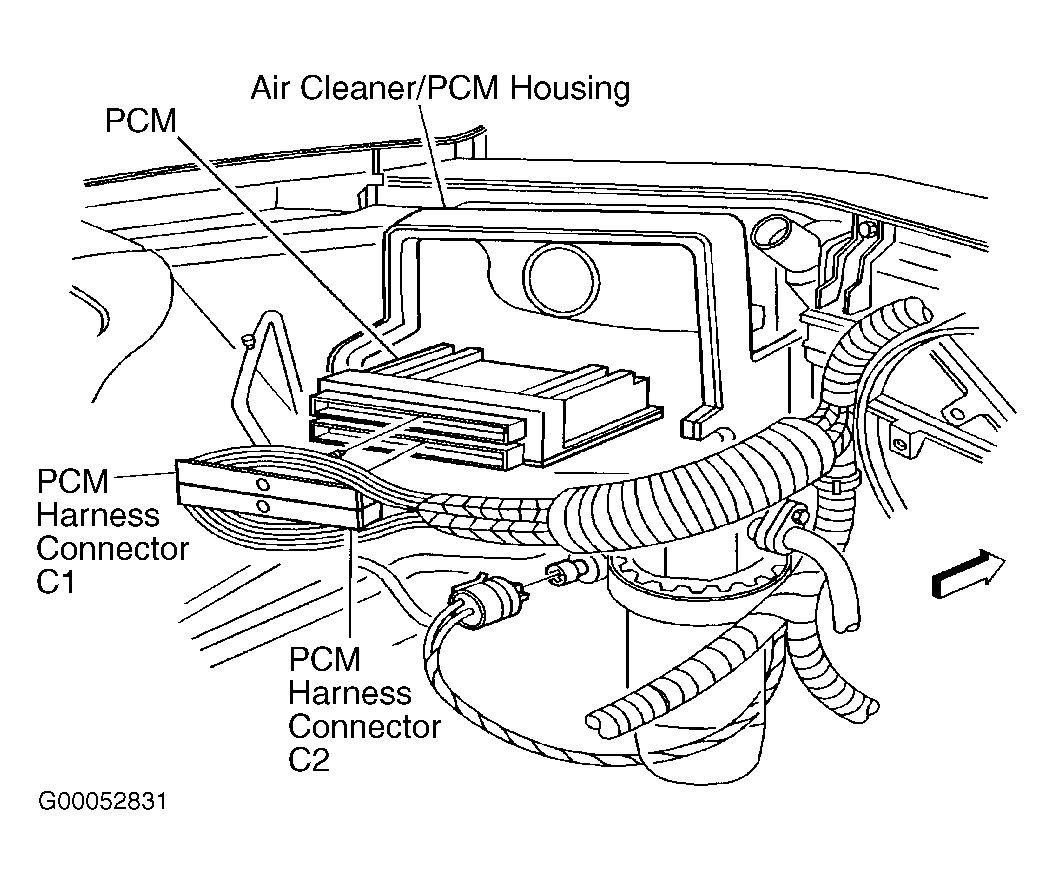

Fig 5: Locating Powertrain Control Module
G00052831Courtesy of GENERAL MOTORS CORP.
Fig 6: Locating Remote Control Door Lock Receiver
G00052829Courtesy of GENERAL MOTORS CORP.

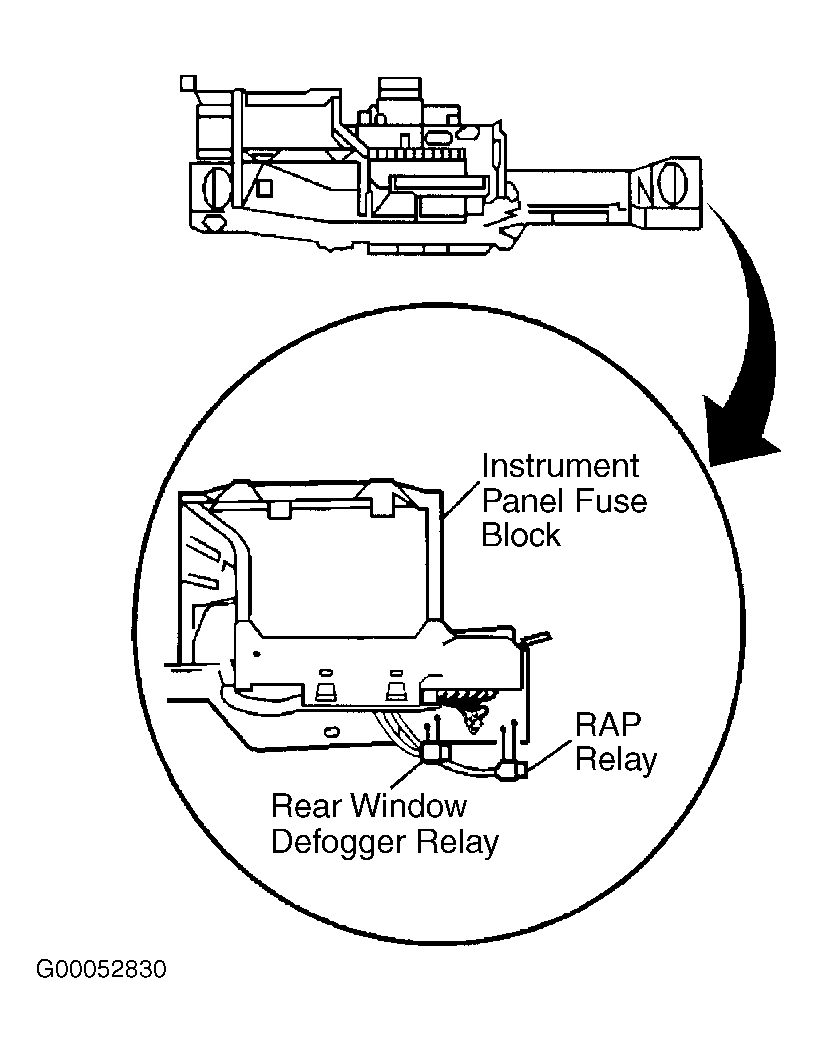

Fig 7: Locating Retained Accessory Power Module
G00052830Courtesy of GENERAL MOTORS CORP.
Fig 8: Locating Underhood Fuse Block
G00052825Courtesy of GENERAL MOTORS CORP.
