LEMON Manuals: Even more car manuals for everyone
Home >> Pontiac >> 2001 >> Firebird Base, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> Diagnostic Information and Procedures >> Engine Overheating

Engine Overheating

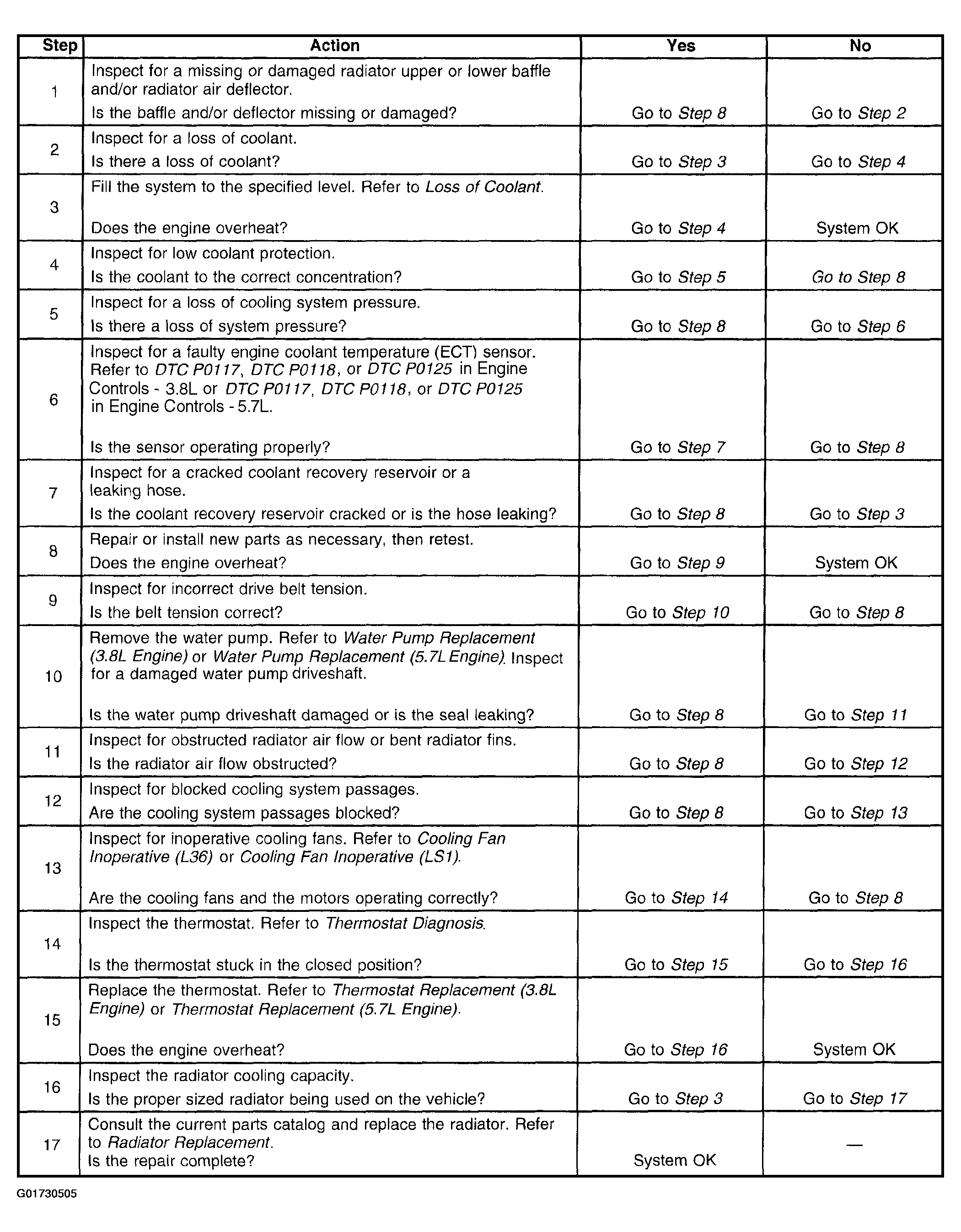

Fig 1: Engine Overheating
G01730505Courtesy of GENERAL MOTORS CORP.
