Automatic Transmission Servicing: Identification: Transmission

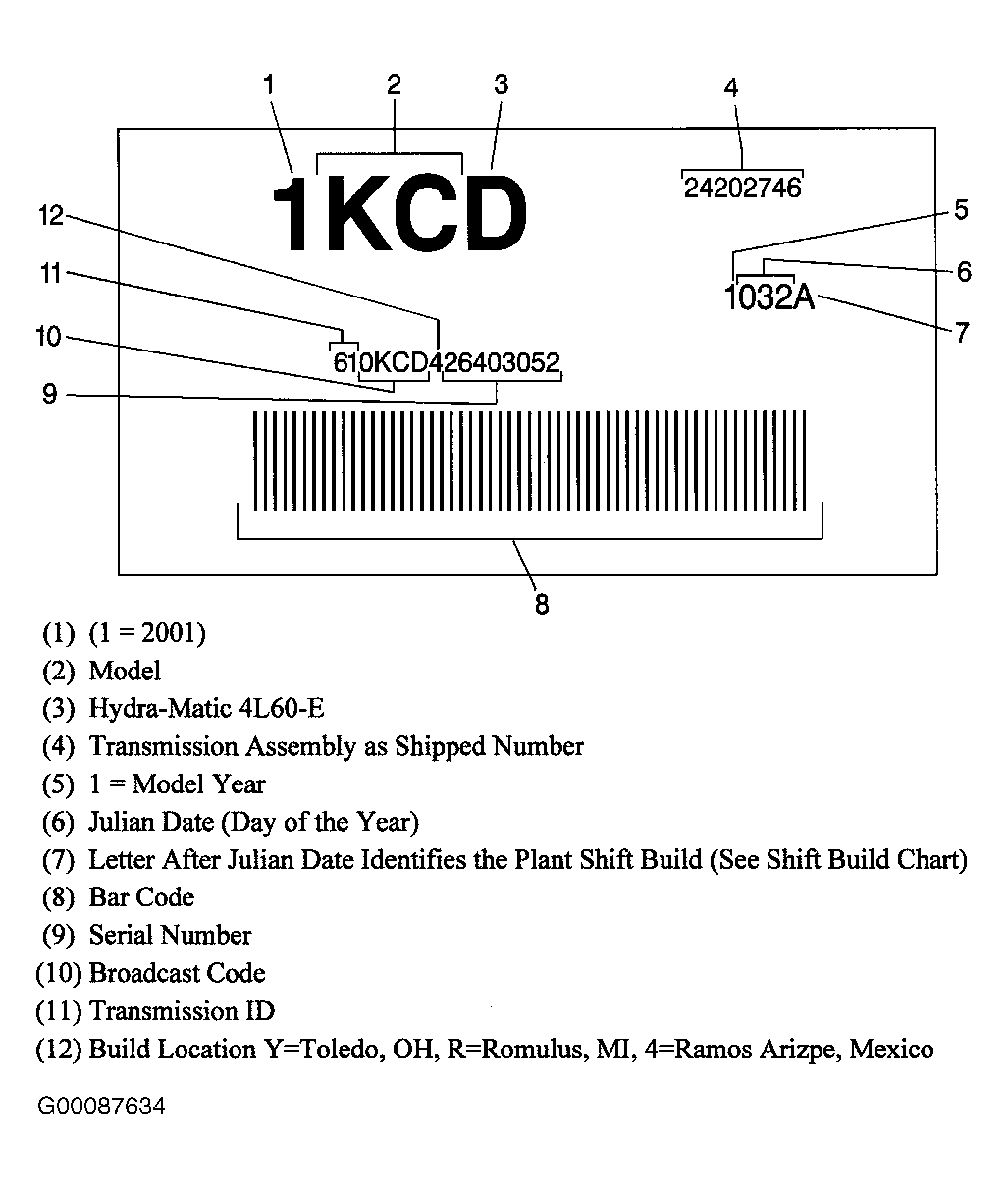

Fig 1: Bar Code Identification Information

Courtesy of GENERAL MOTORS CORP.

Fig 2: Plant & Shift Build Chart

Courtesy of GENERAL MOTORS CORP.

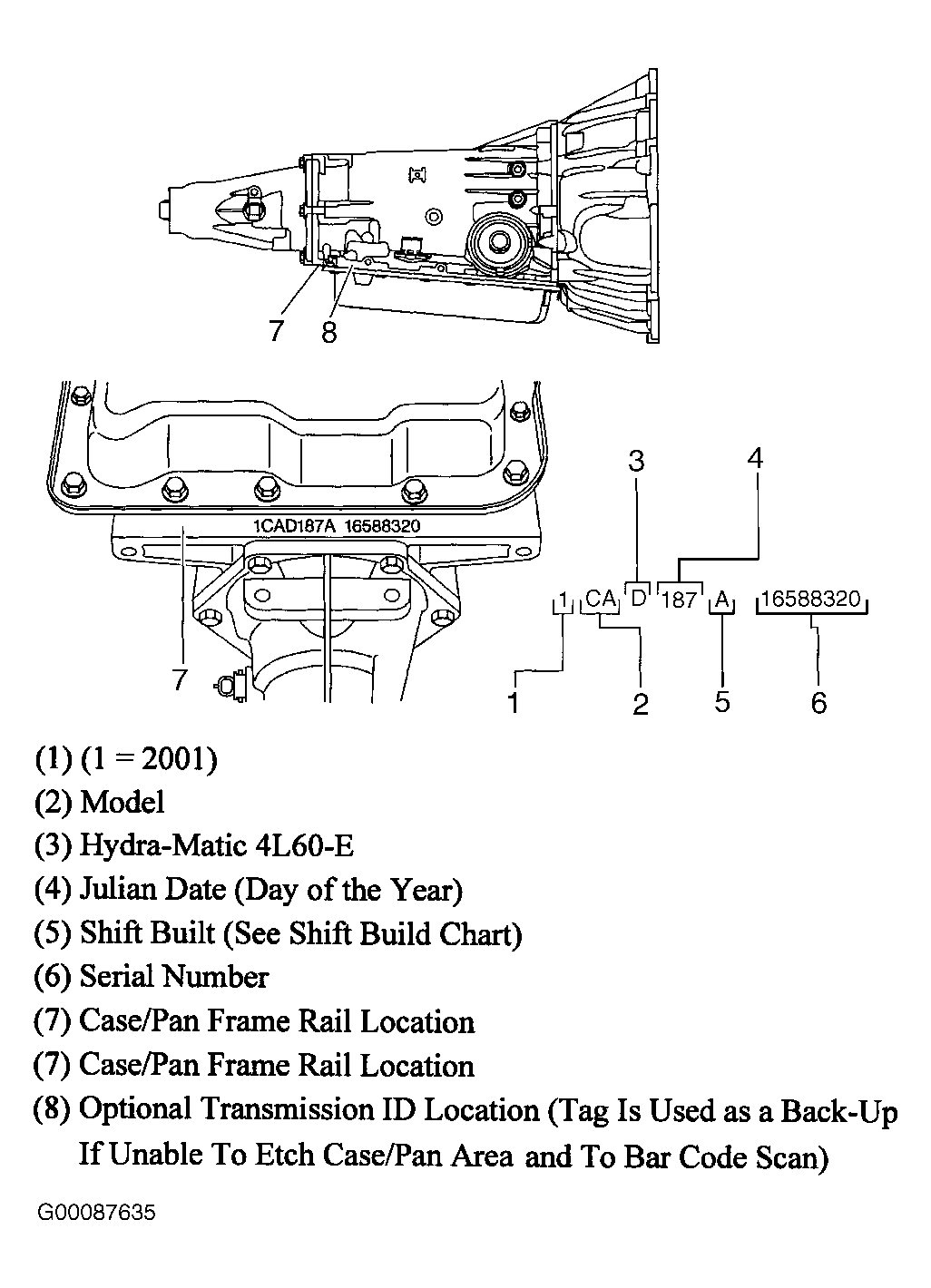

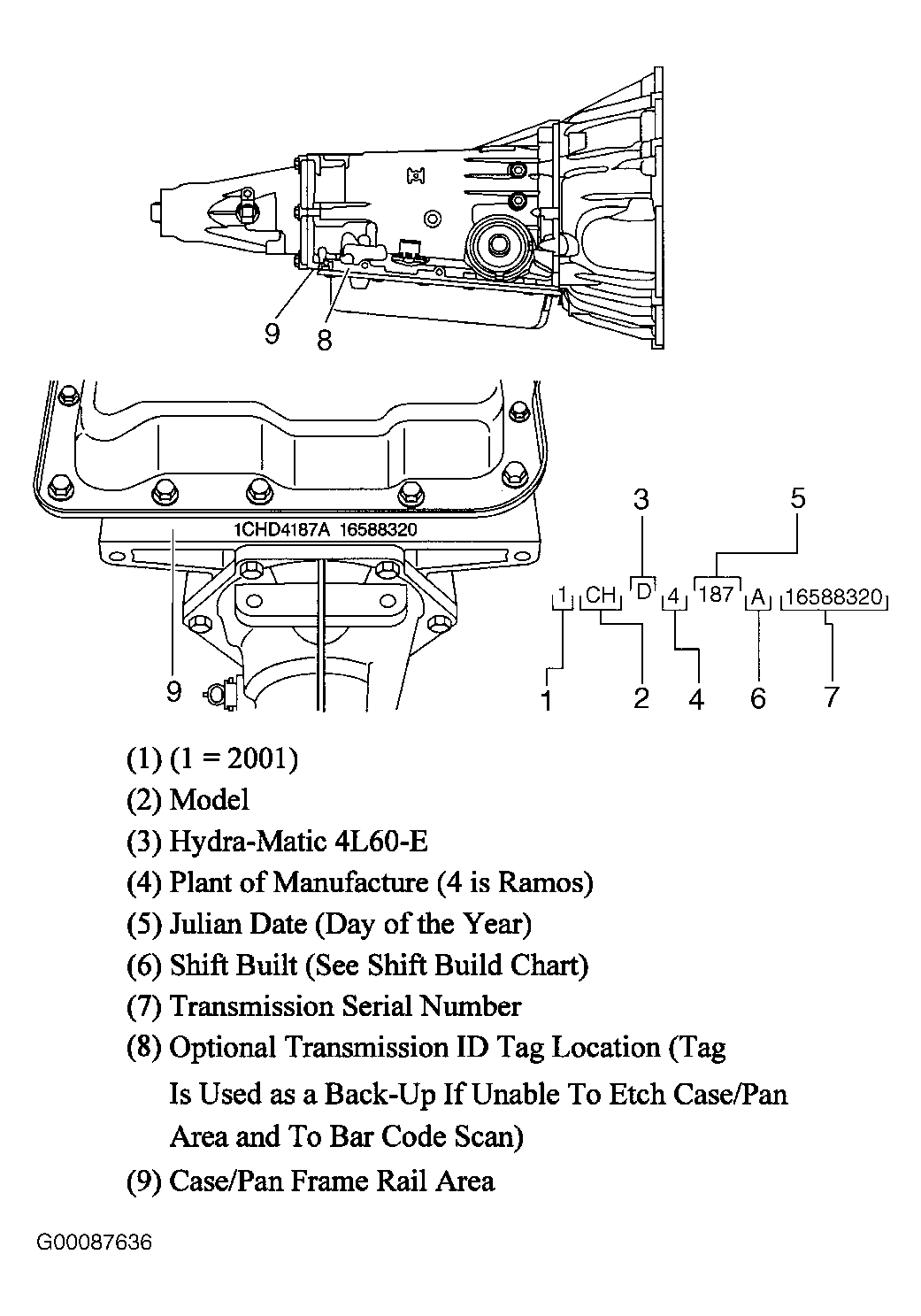

Fig 3: Transmission Identification Information (Ramos Arizpe, Mexico Build)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Transmission Identification Information (Toledo Or Romulus Build)

Courtesy of GENERAL MOTORS CORP.
