Home >> Pontiac >> 2001 >> Firebird Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> Diagnostic Information and Procedures >> Engine Fails To Reach Normal Operating Temperature

Engine Fails To Reach Normal Operating Temperature

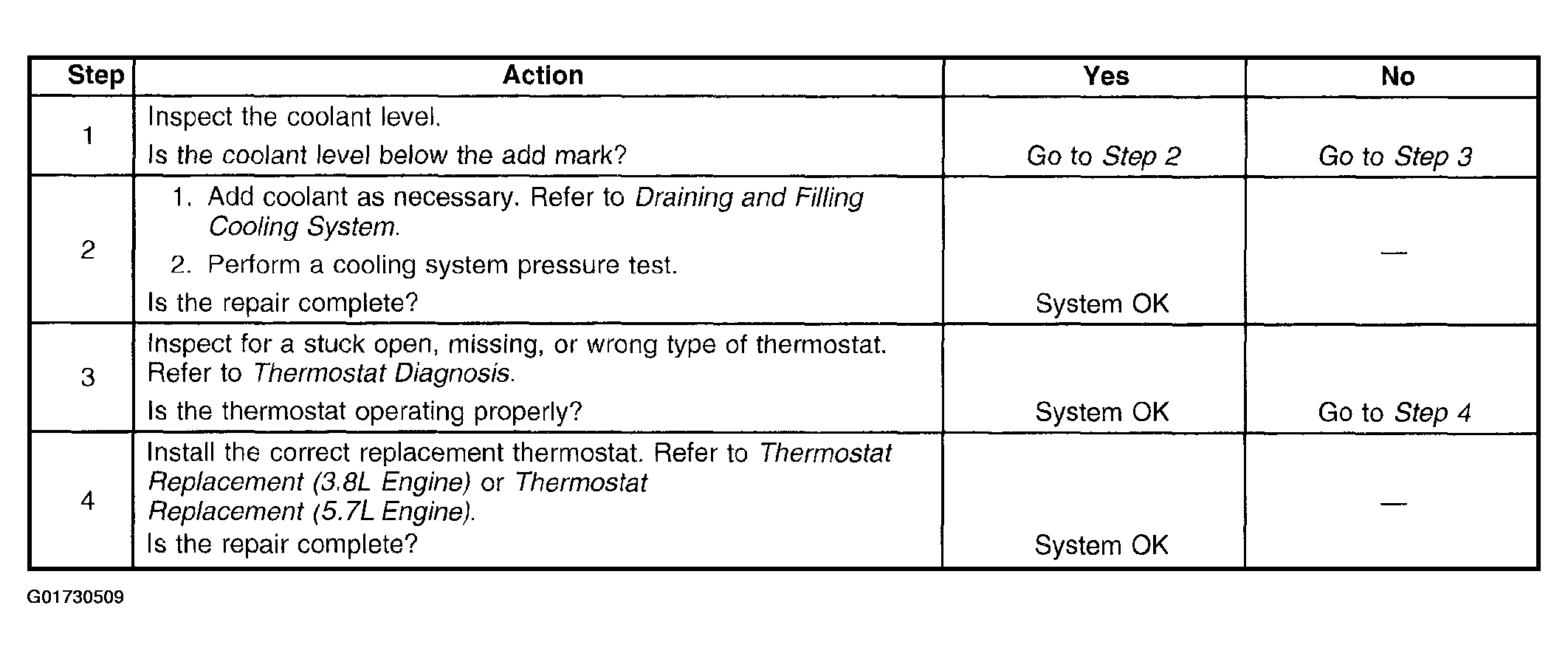

Fig 1: Engine Fails To Reach Normal Operating Temperature

G01730509

Courtesy of GENERAL MOTORS CORP.
