Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 - Fig 4 .

COMPONENT LOCATIONS

Component	Location
Body Control Module	Behind Right Console Access Panel, Inside Of Console, Attached To Center Console Fuse Block
Center Console Fuse Block	Behind Right Console Access Panel, Inside Console
Harness Connector C103	On Left Side Of Engine Compartment, Near Electronic Brake Control Module
Powertrain Control Module	In Engine Compartment, Inside Air Cleaner Assembly
Underhood Junction Block	In Front Of Right Wheelwell, Above Battery

Fig 1: Identifying Underhood Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Center Console Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Cruise Control Module

Courtesy of GENERAL MOTORS CORP.

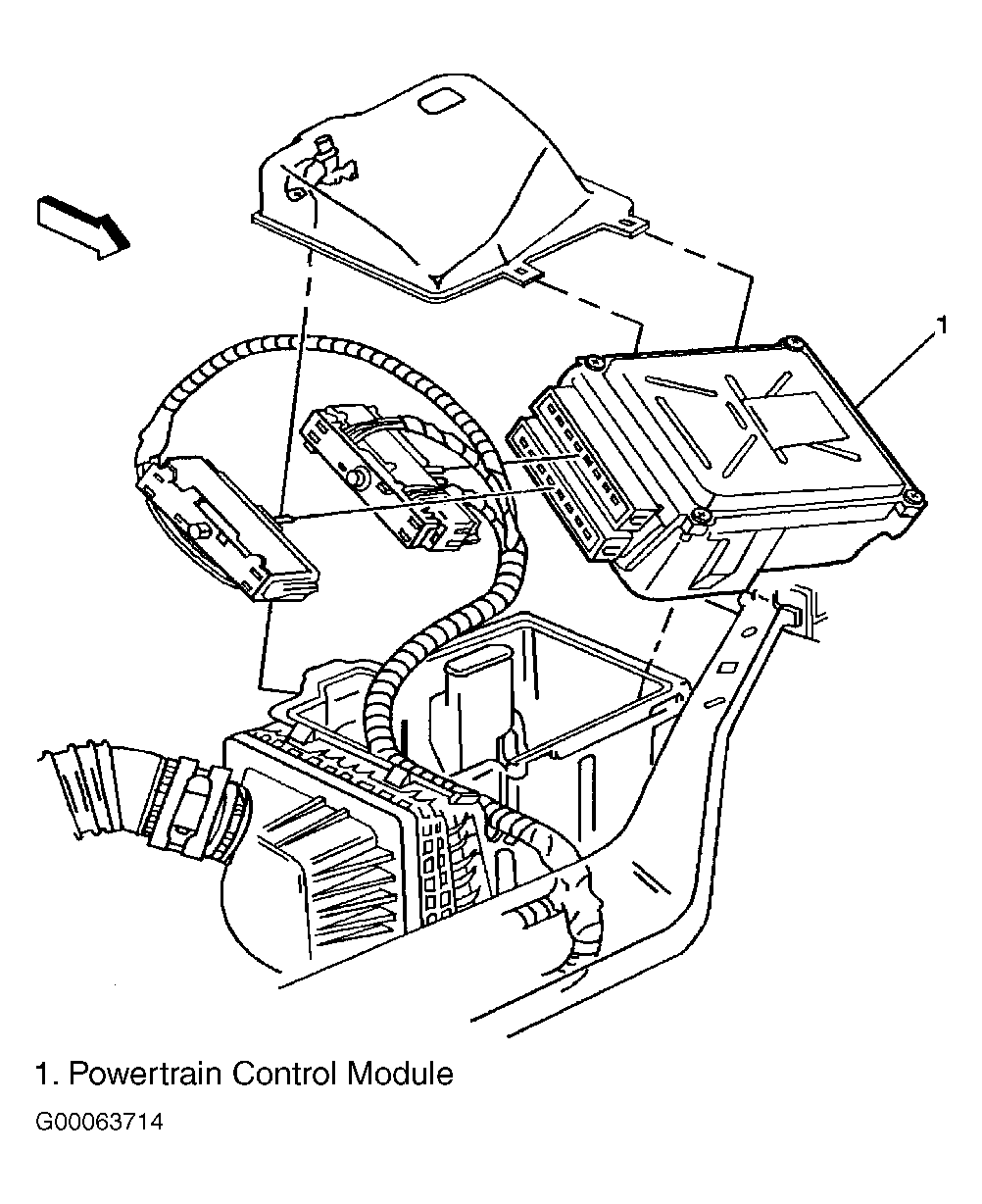

Fig 4: Locating Powertrain Control Module

Courtesy of GENERAL MOTORS CORP.
