Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering pump (3) bracket to the engine.
    NOTE: Refer to Fastener Notice in Cautions and Notices.

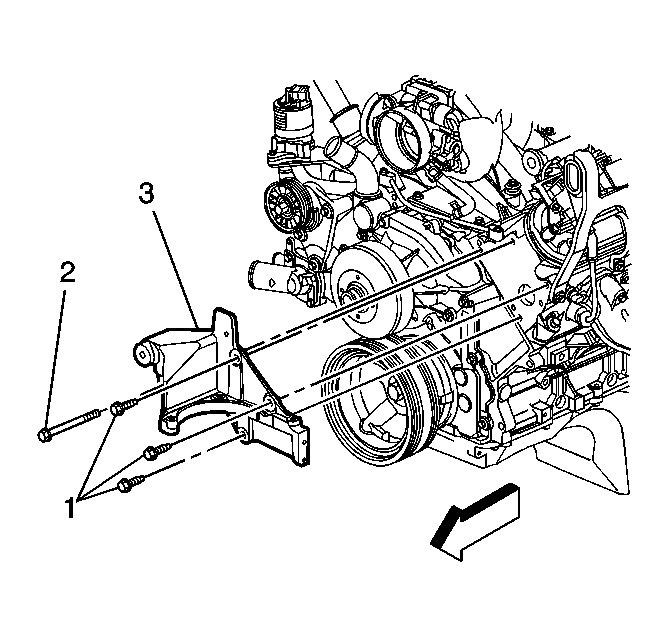

    Fig 1: Installing Power Steering Pump Bracket To Engine
    GM1202281Courtesy of GENERAL MOTORS CORP.
  2. Install the power steering pump bracket retaining bolts.

    Tighten:  Tighten the power steering pump bracket retaining bolts to 25 N.m (18 lb ft).

  3. Install the power steering pump to the bracket. Refer to Power Steering Pump Replacement (4.3L) , Power Steering Pump Replacement (4.8L, 5.3L and 6.0L) , Power Steering Pump Replacement (8.1L) , Power Steering Pump Replacement (6.6L Diesel)  or Power Steering Pump Replacement (Parallel Hybrid Truck) .
  4. Install the positive battery junction block bracket retaining bolts (2) to the power steering pump bracket.

    Tighten:  Tighten the battery junction block retaining bolts to 9 N.m (80 lb in).

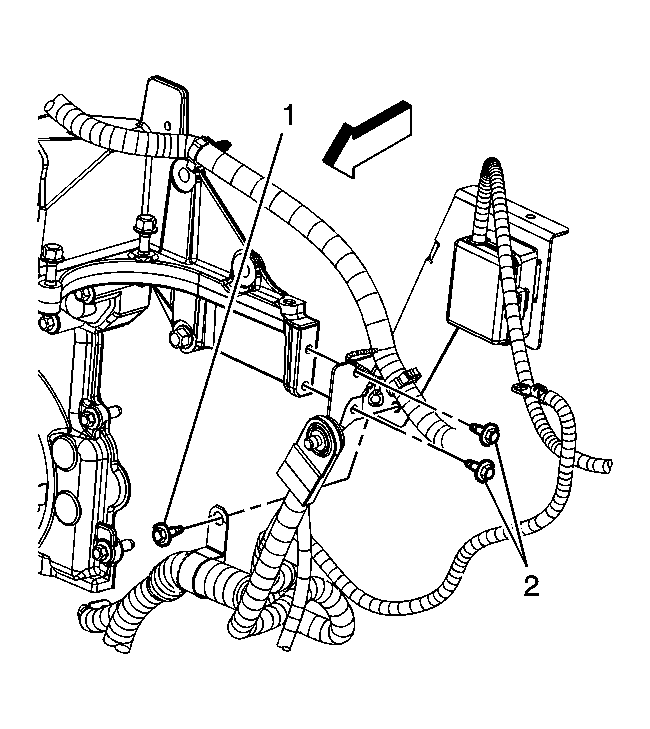

    Fig 2: Installing Positive Battery Junction Block Bracket Retaining Bolts To Power Steering Pump Bracket
    GM1237043Courtesy of GENERAL MOTORS CORP.
