Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the liftgate struts to the liftgate.
  2. Install the upper end of the liftgate struts to the ball joint. Press in to place until fully seated.
  3. Install the lower end of the liftgate struts to the ball joint. Press in to place until fully seated.
  4. Remove the support from the liftgate.
  5. Close the liftgate.

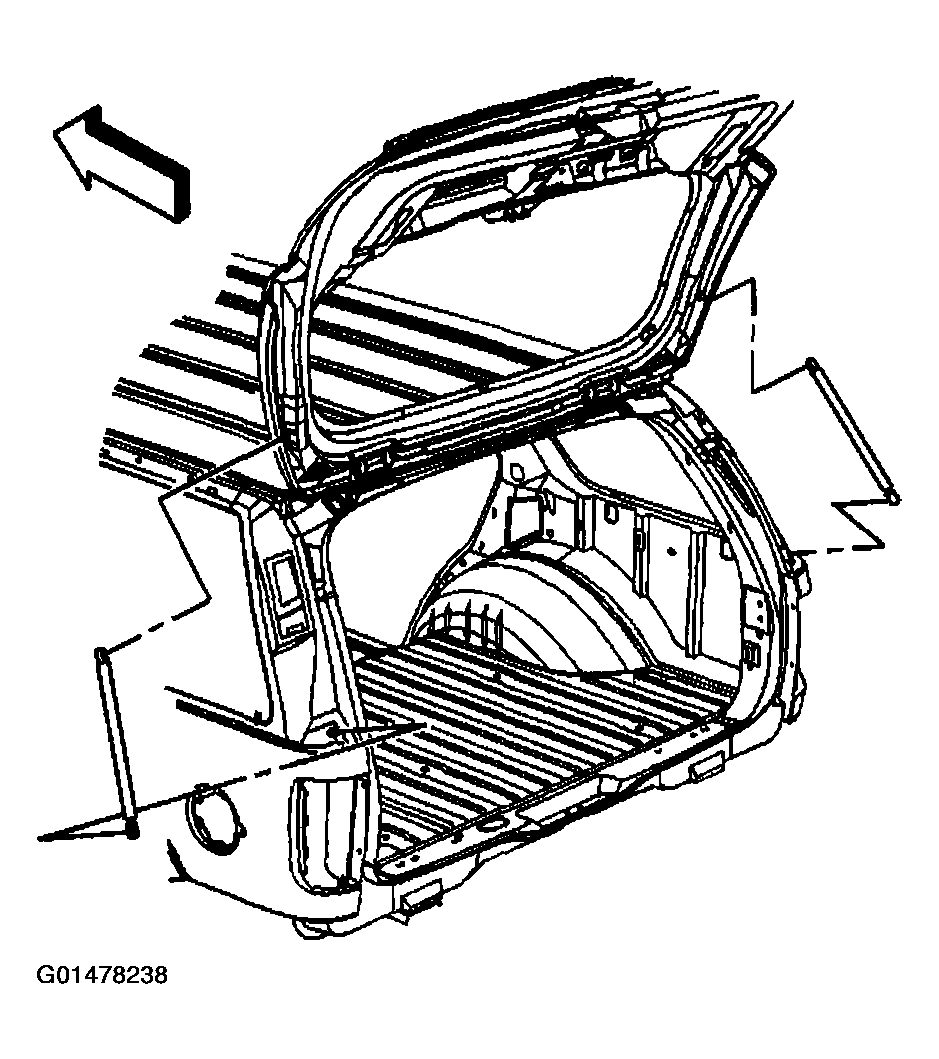

    Fig 1: Liftgate Struts
    G01478238Courtesy of GENERAL MOTORS CORP.
