Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

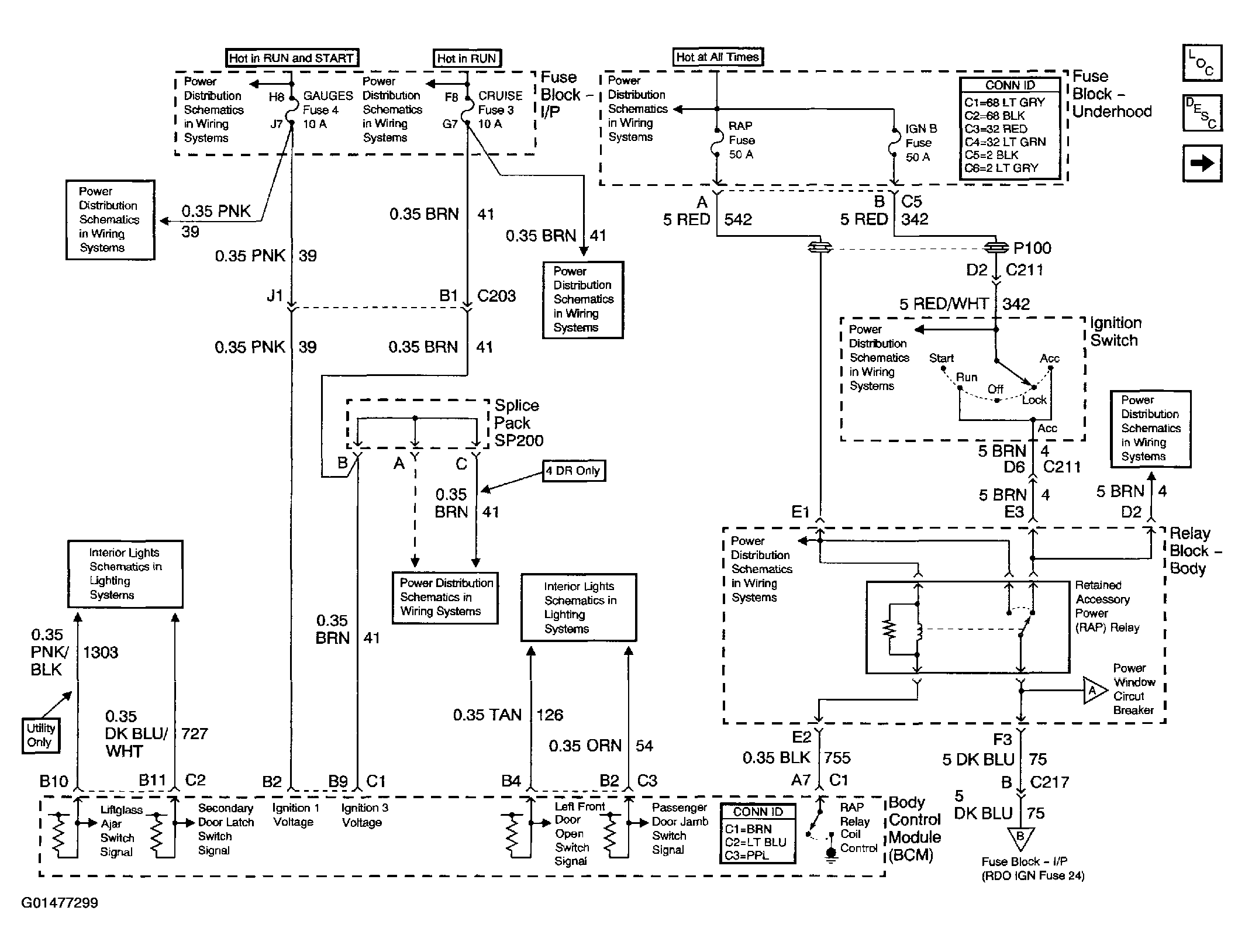

Fig 1: Retained Accessory Power (RAP) Schematics (RAP Relay & Ignition Switch)

Courtesy of GENERAL MOTORS CORP.

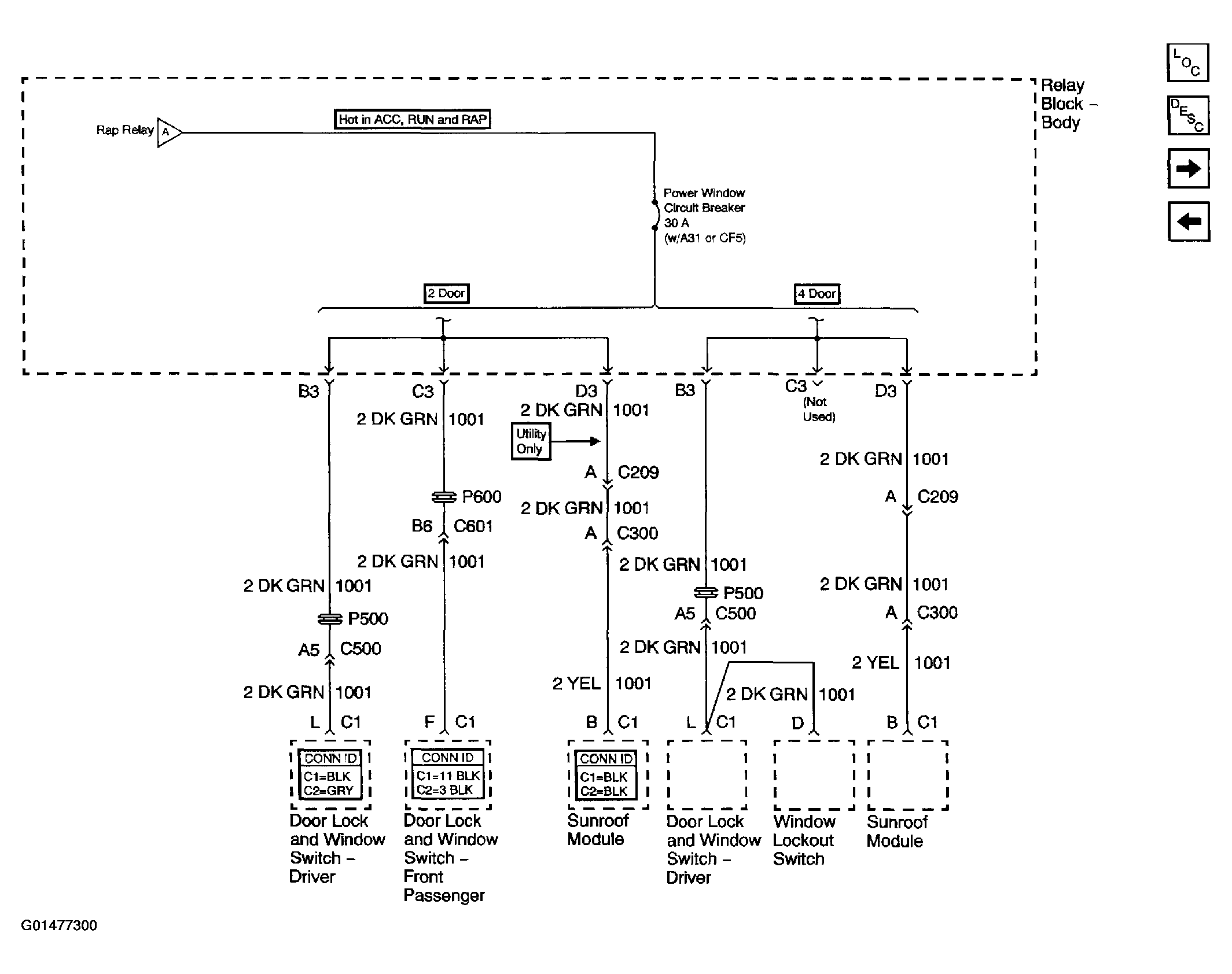

Fig 2: Retained Accessory Power (RAP) Schematics (Door Locks & Window Switches)

Courtesy of GENERAL MOTORS CORP.

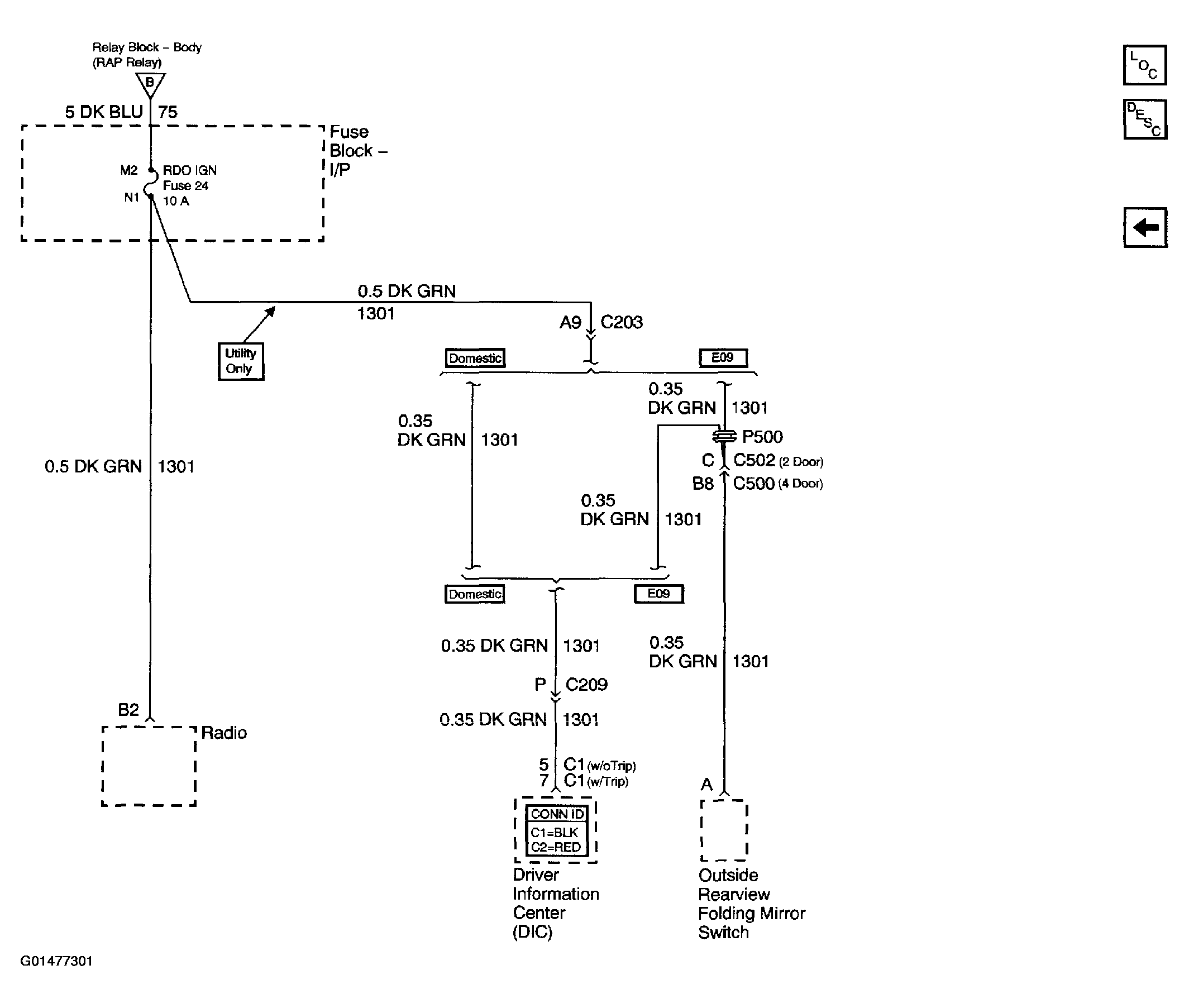

Fig 3: Retained Accessory Power (RAP) Schematics (RDO IGN Fuse)

Courtesy of GENERAL MOTORS CORP.
