Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the transmission to the vehicle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the transmission mounting screws.
Tighten

Tighten the wiper transmission mounting screws to 8 N.m (70 lb in).

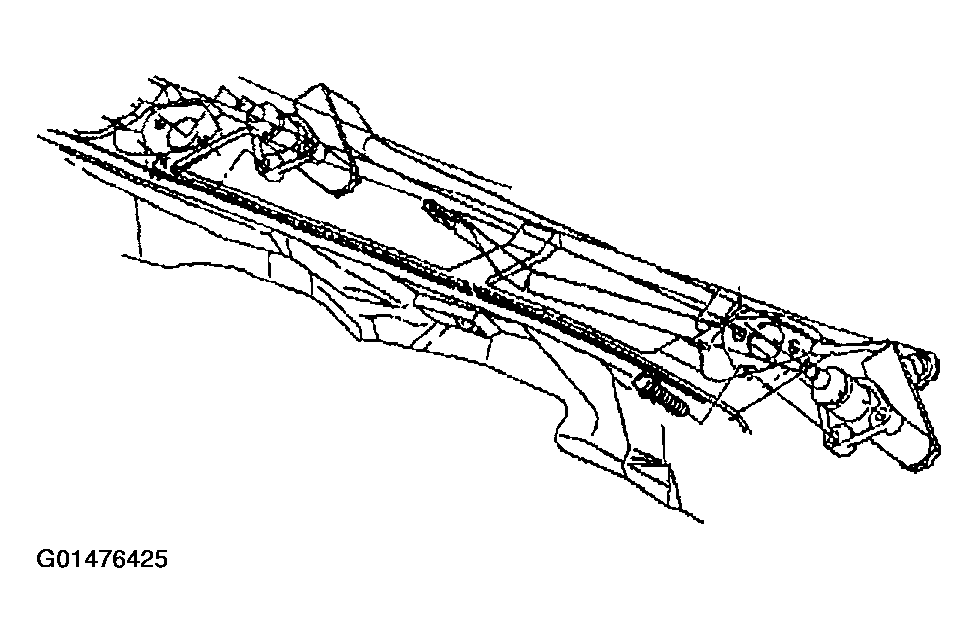

Fig 1: Installing Transmission To Vehicle
Courtesy of GENERAL MOTORS CORP.

Important
- Lubricate the inside of the socket with white lithium grease (GM P/N 9985885) or equivalent.
- The wiper transmission must be assembled to the crank arm past the second detent so the seal is compressed to a maximum height of 25.5 mm (1 in).
Install the transmission drive link to the wiper motor crank arm using the J 39529.
Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT
Install the wiper arms. Refer to WIPER ARM REPLACEMENT .

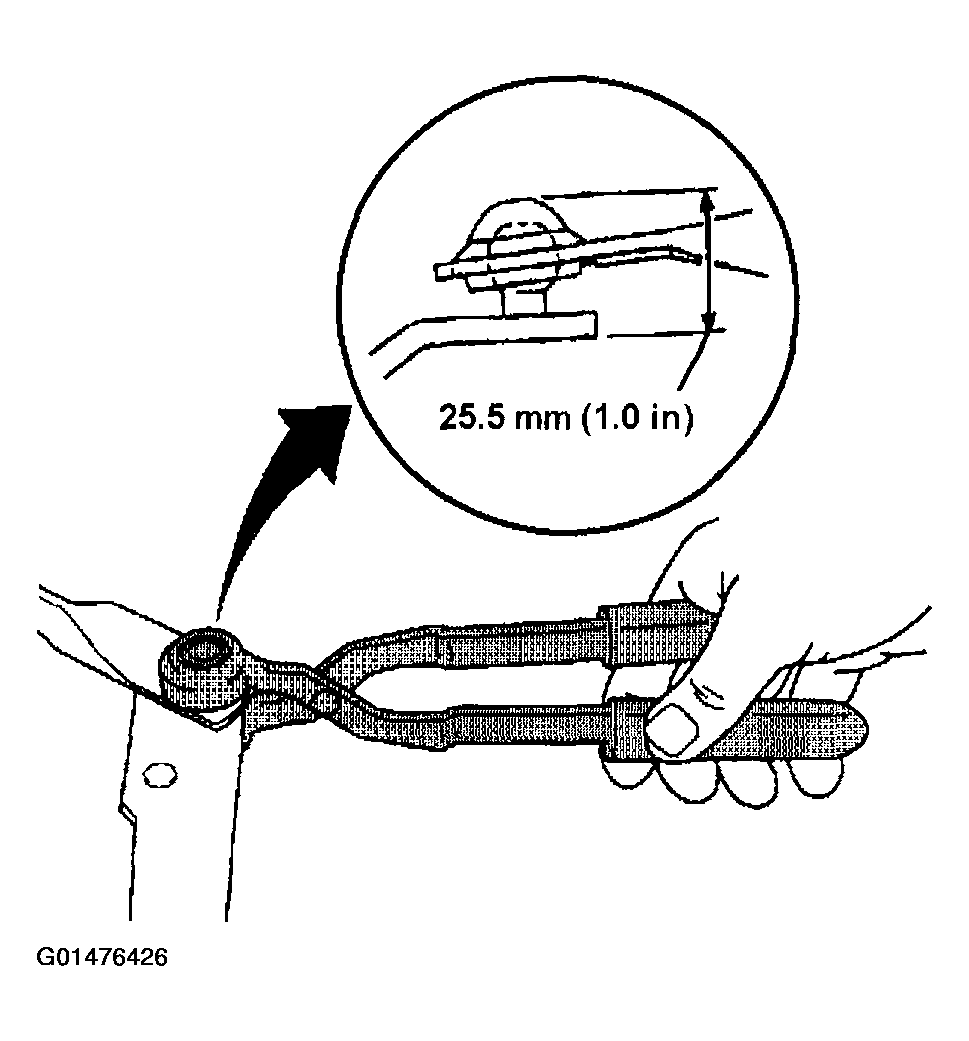

Fig 2: Installing Transmission Drive Link To Wiper Motor Crank Arm Using Wiper Transmission Installer
Courtesy of GENERAL MOTORS CORP.
