Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  3. Remove the transmission from the wiper motor drive link using the J 39232.

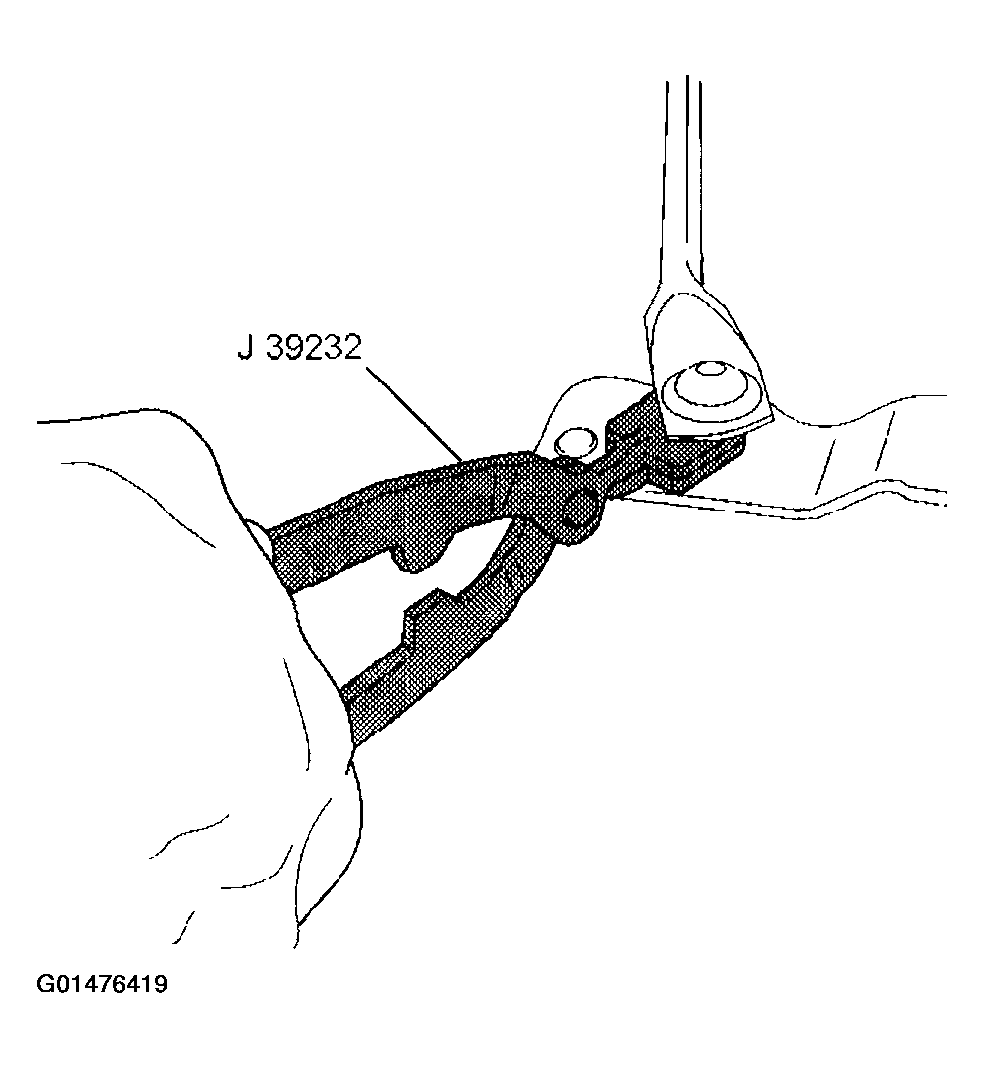

    Fig 1: Removing Transmission From Wiper Motor Drive Link Using Wiper Transmission Separator
    G01476419Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the wiper motor.
  5. Remove the three screws and wiper motor from the vehicle.

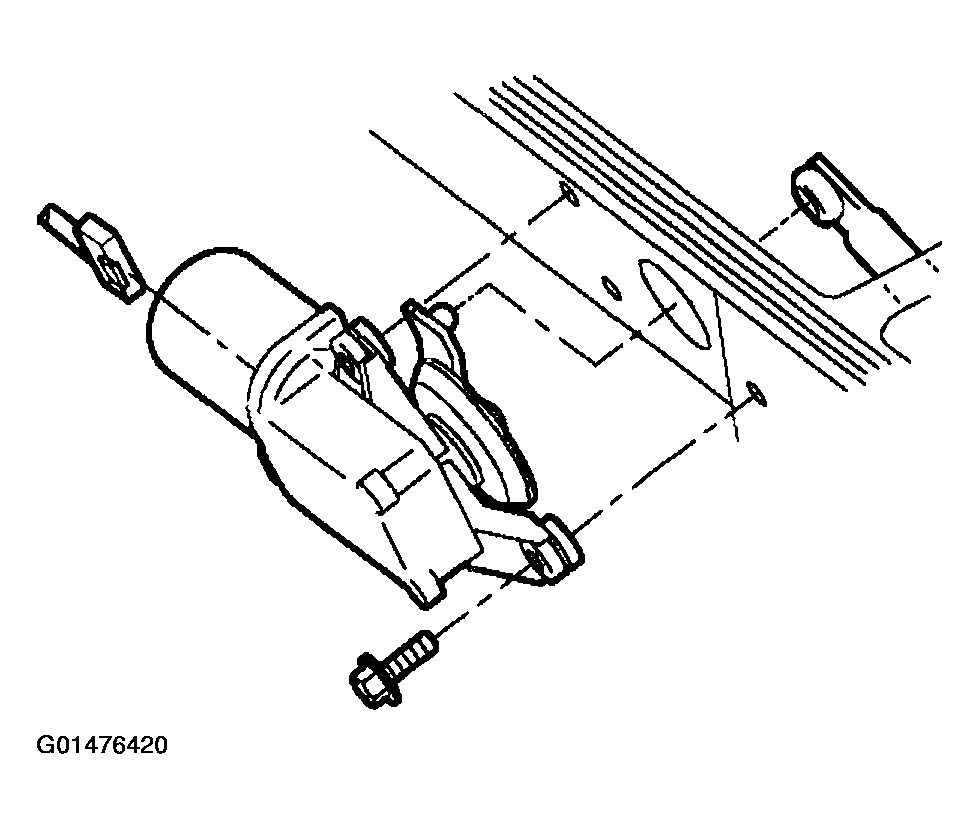

    Fig 2: Removing Three Screws & Wiper Motor From Vehicle
    G01476420Courtesy of GENERAL MOTORS CORP.
