Schematic & Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

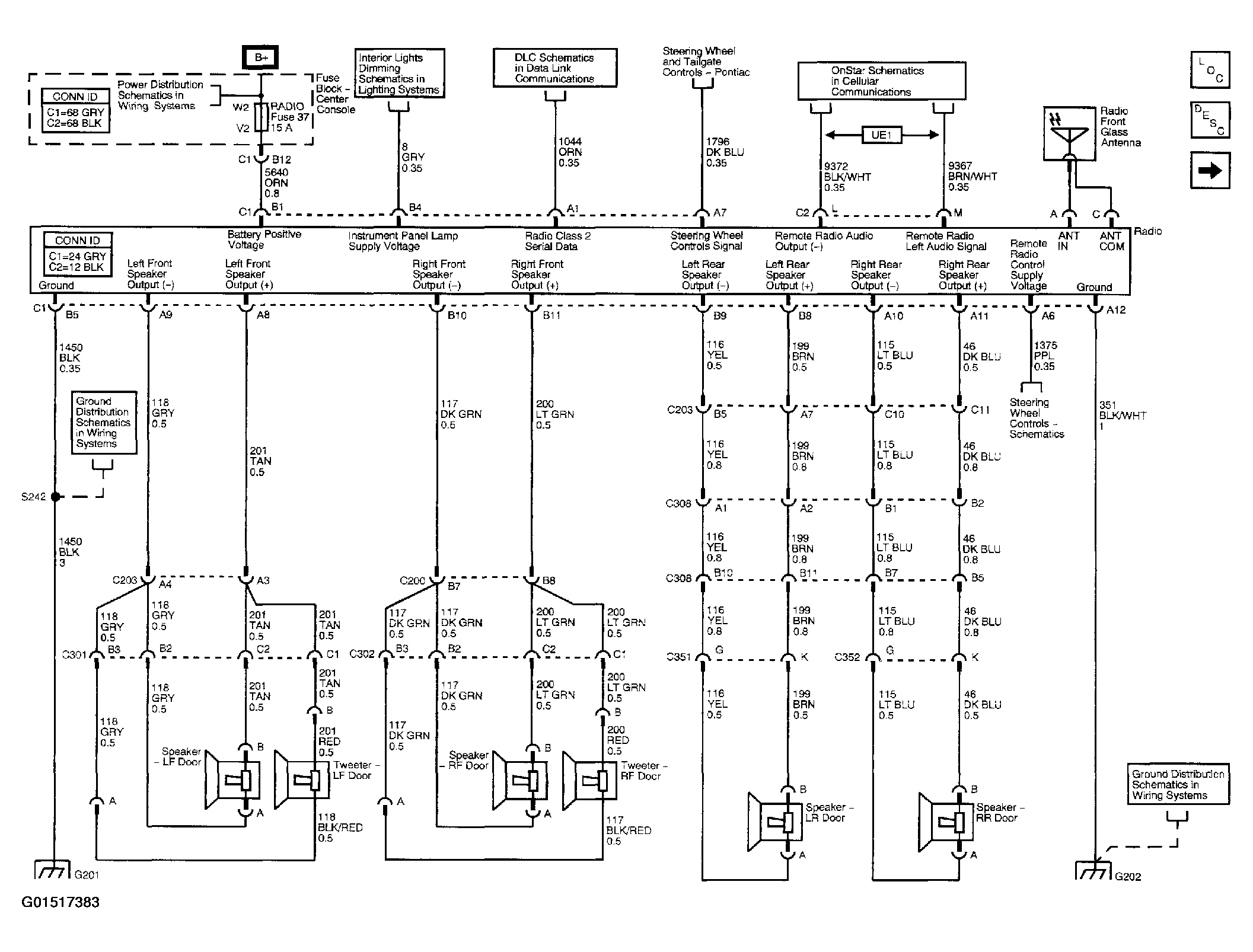

Fig 1: Radio System (U96) Diagram - Pontiac

Courtesy of GENERAL MOTORS CORP.

Fig 2: Radio W/Rear Seat Audio Controls (U96 w/U32) Diagram - Pontiac

Courtesy of GENERAL MOTORS CORP.

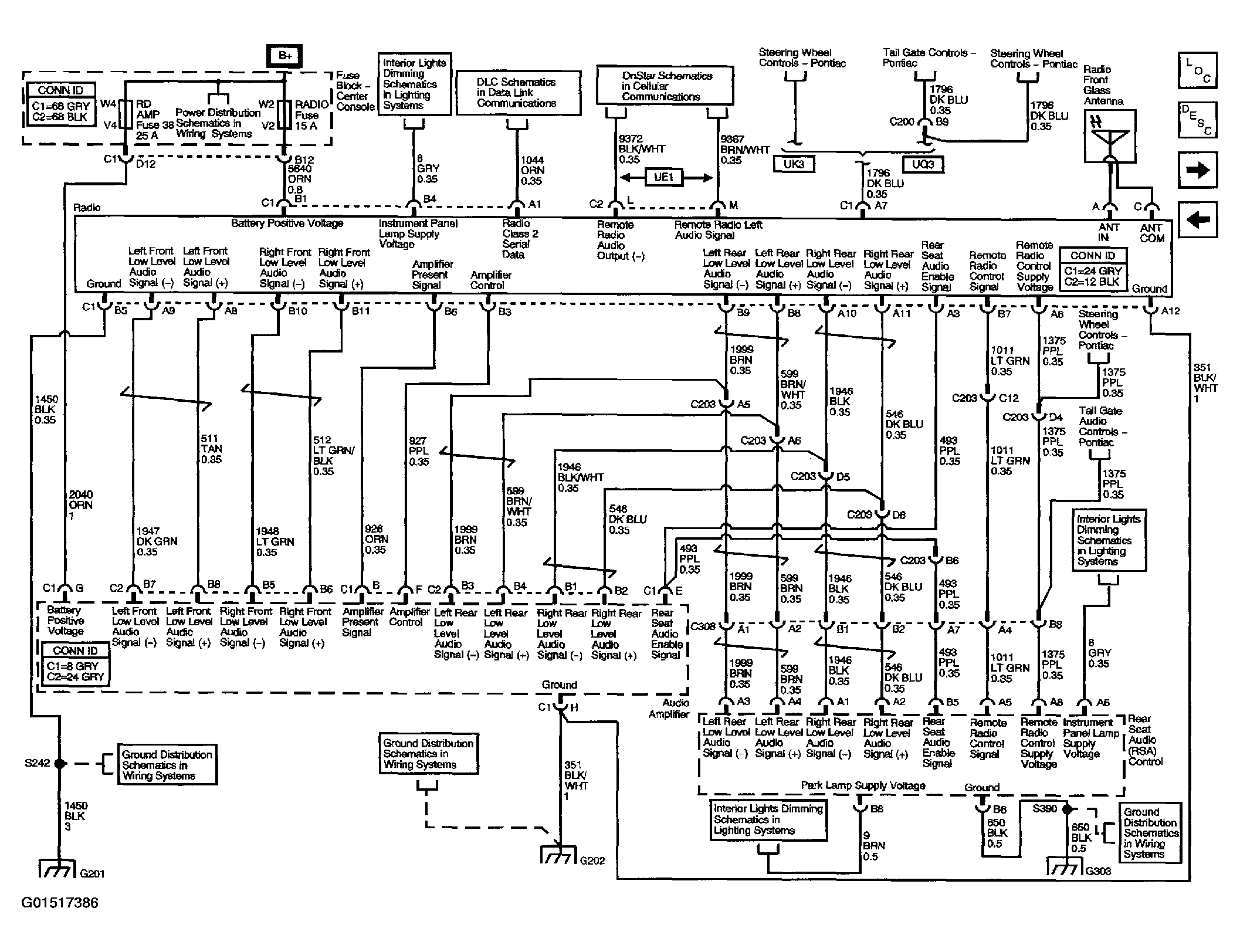

Fig 3: Uplevel Radio Without Rear Seat Audio Controls (UQ3) Diagram - Pontiac

Courtesy of GENERAL MOTORS CORP.

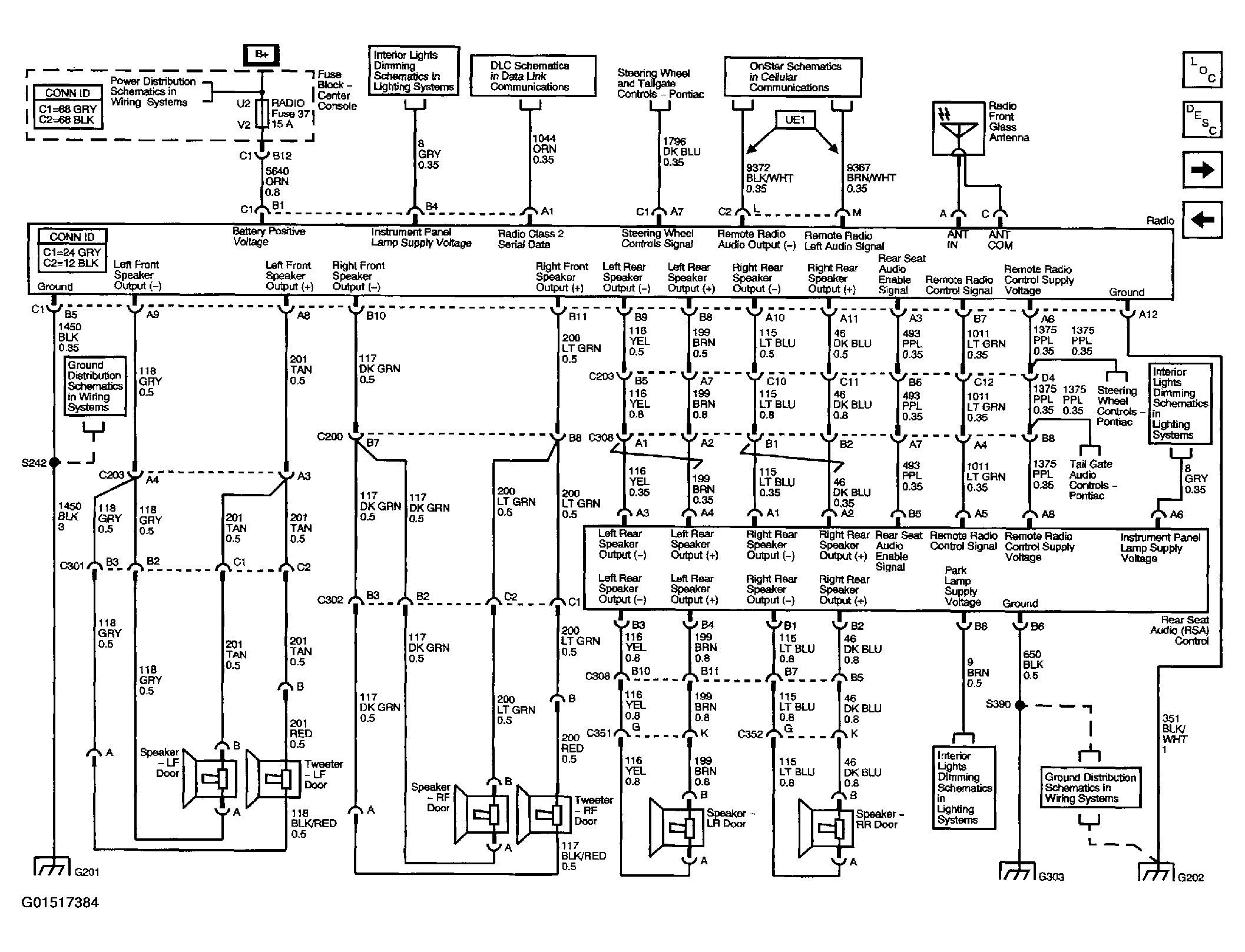

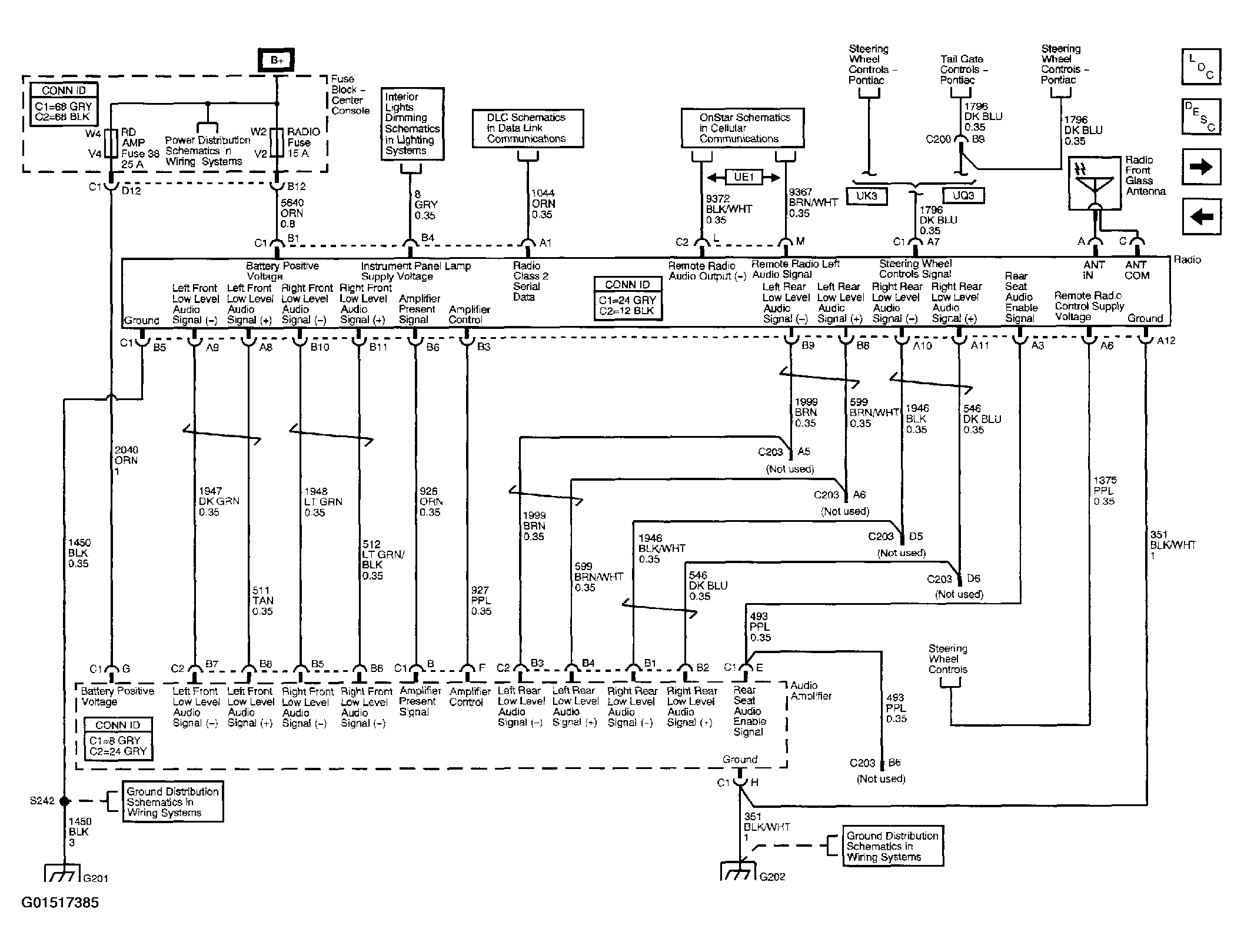

Fig 4: Uplevel Radio W/Rear Seat Audio Controls (UQ3 w/U32) Diagram - Pontiac

Courtesy of GENERAL MOTORS CORP.

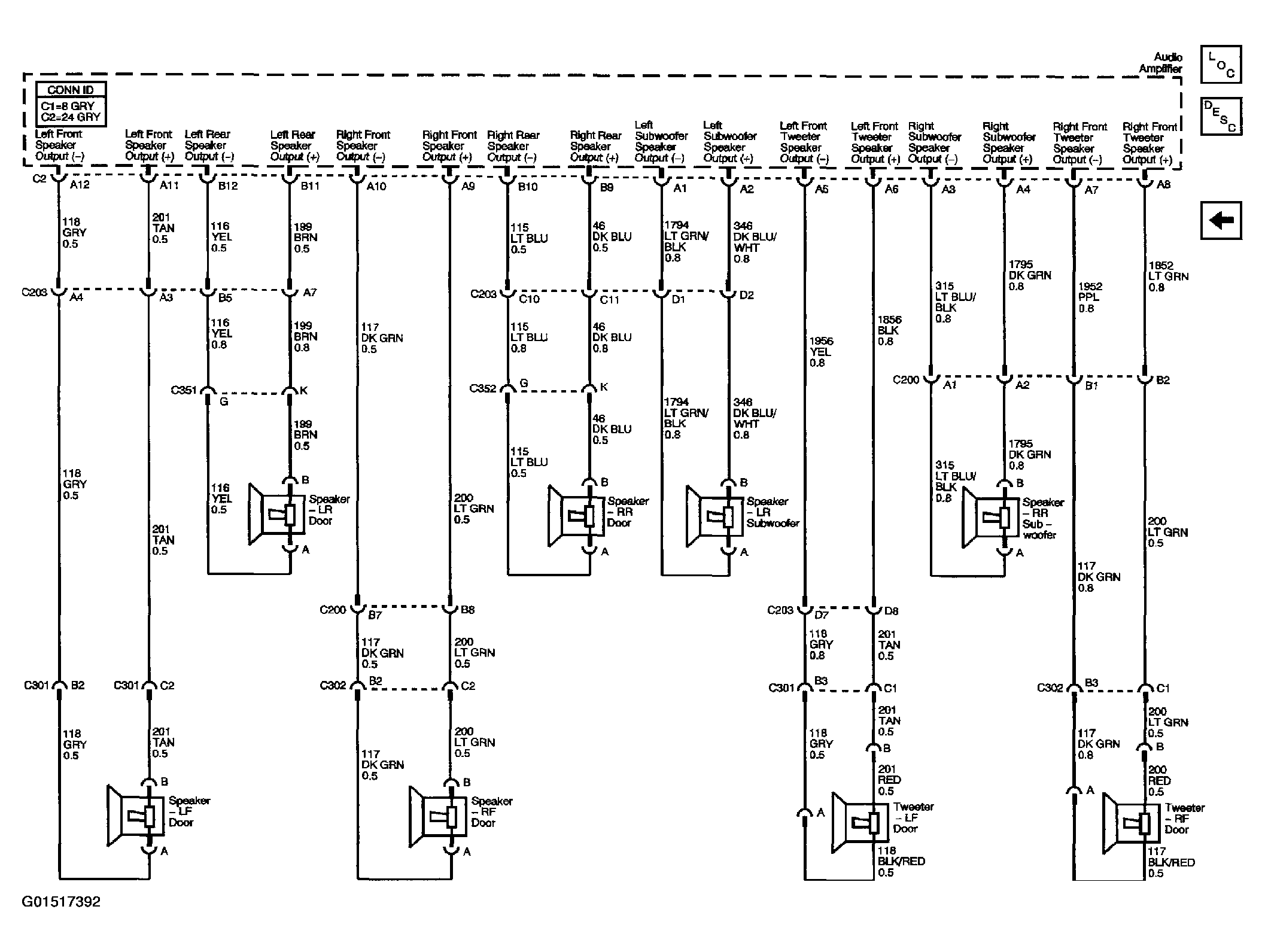

Fig 5: Radio Speakers (UQ3) Diagram - Pontiac

Courtesy of GENERAL MOTORS CORP.

Fig 6: Radio System (U96) Diagram - Buick

Courtesy of GENERAL MOTORS CORP.

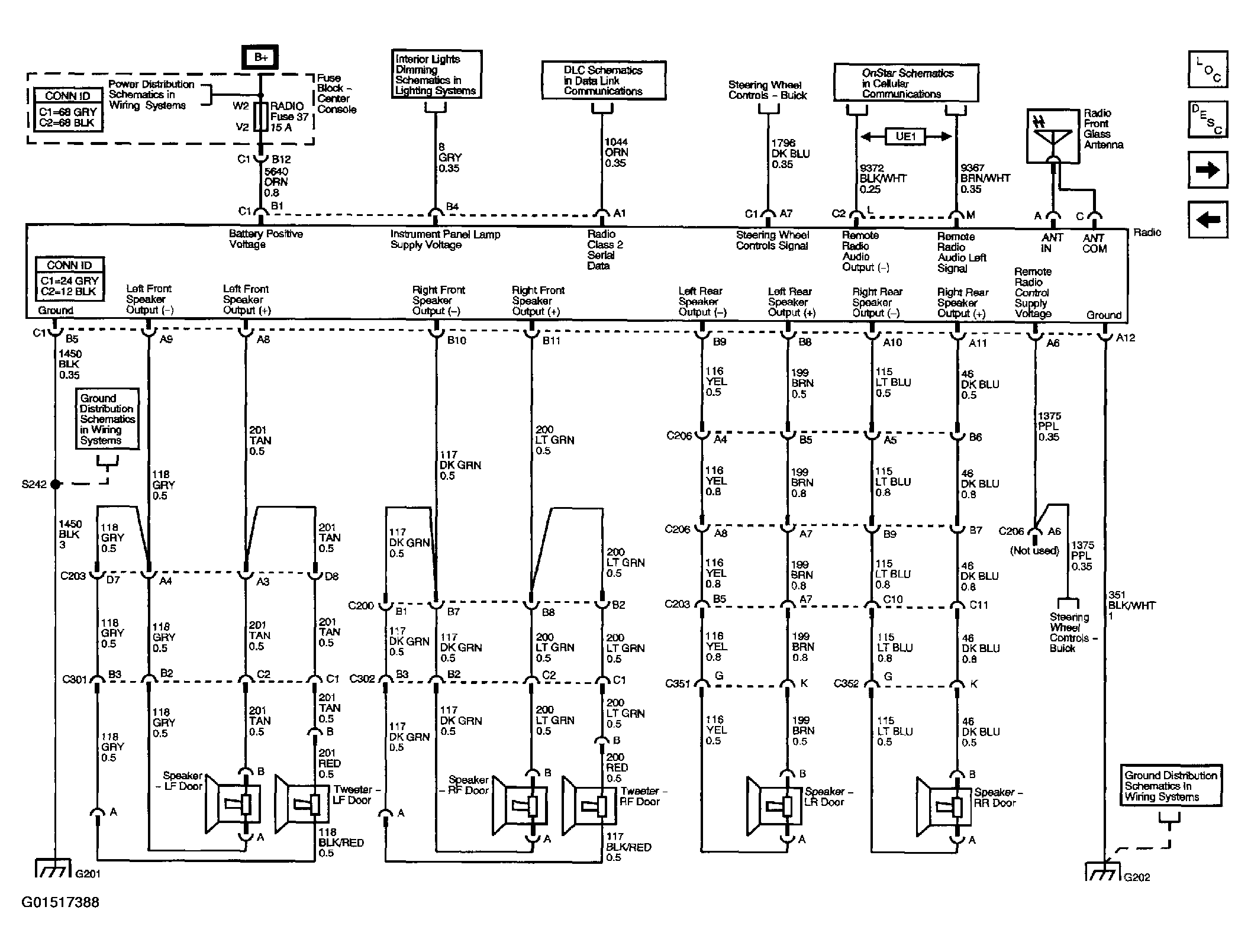

Fig 7: Radio W/Rear Seat Audio Controls (U96 w/U32) Diagram - Buick

Courtesy of GENERAL MOTORS CORP.

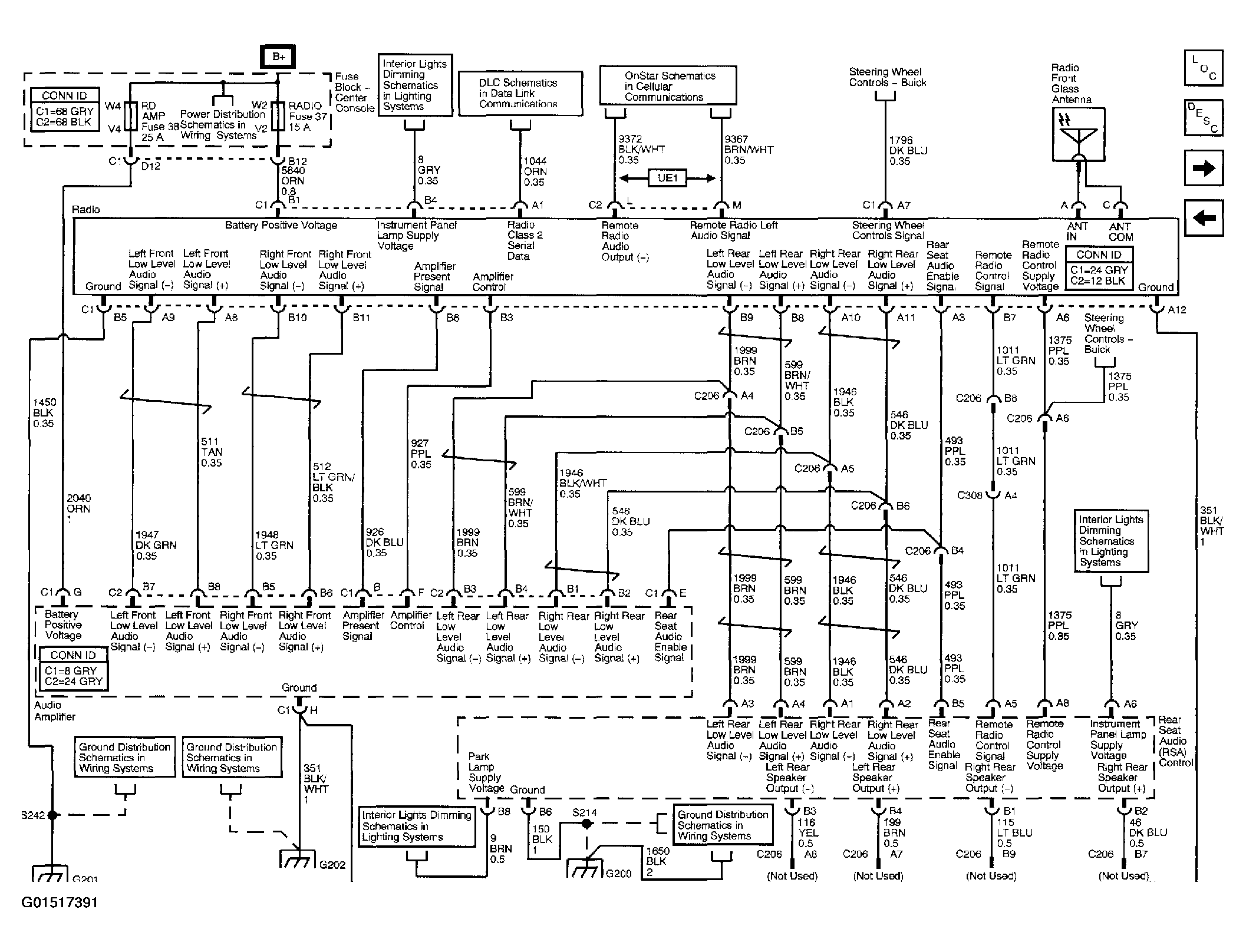

Fig 8: Uplevel Radio Without Rear Seat Audio Controls (UQ3) Diagram - Buick

Courtesy of GENERAL MOTORS CORP.

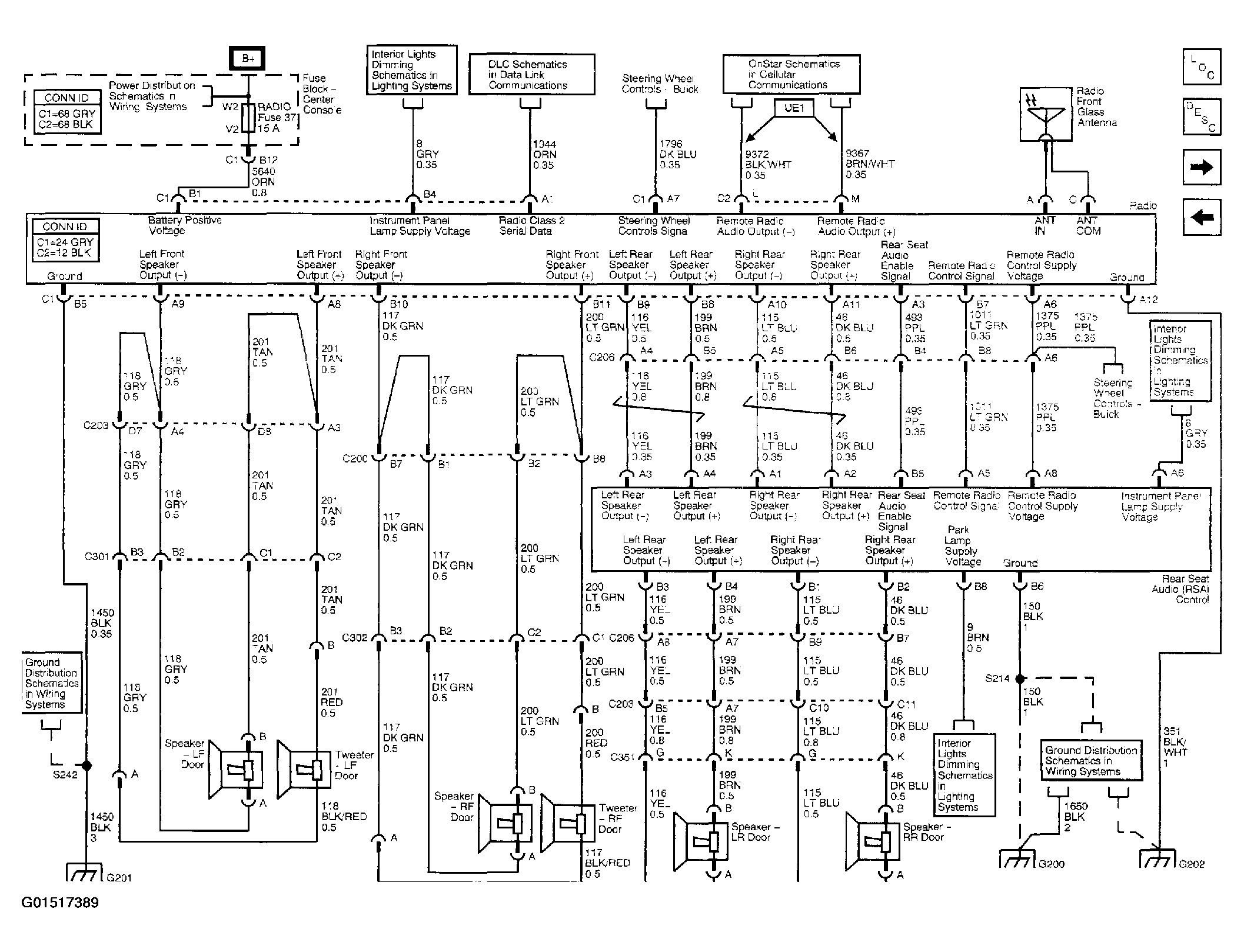

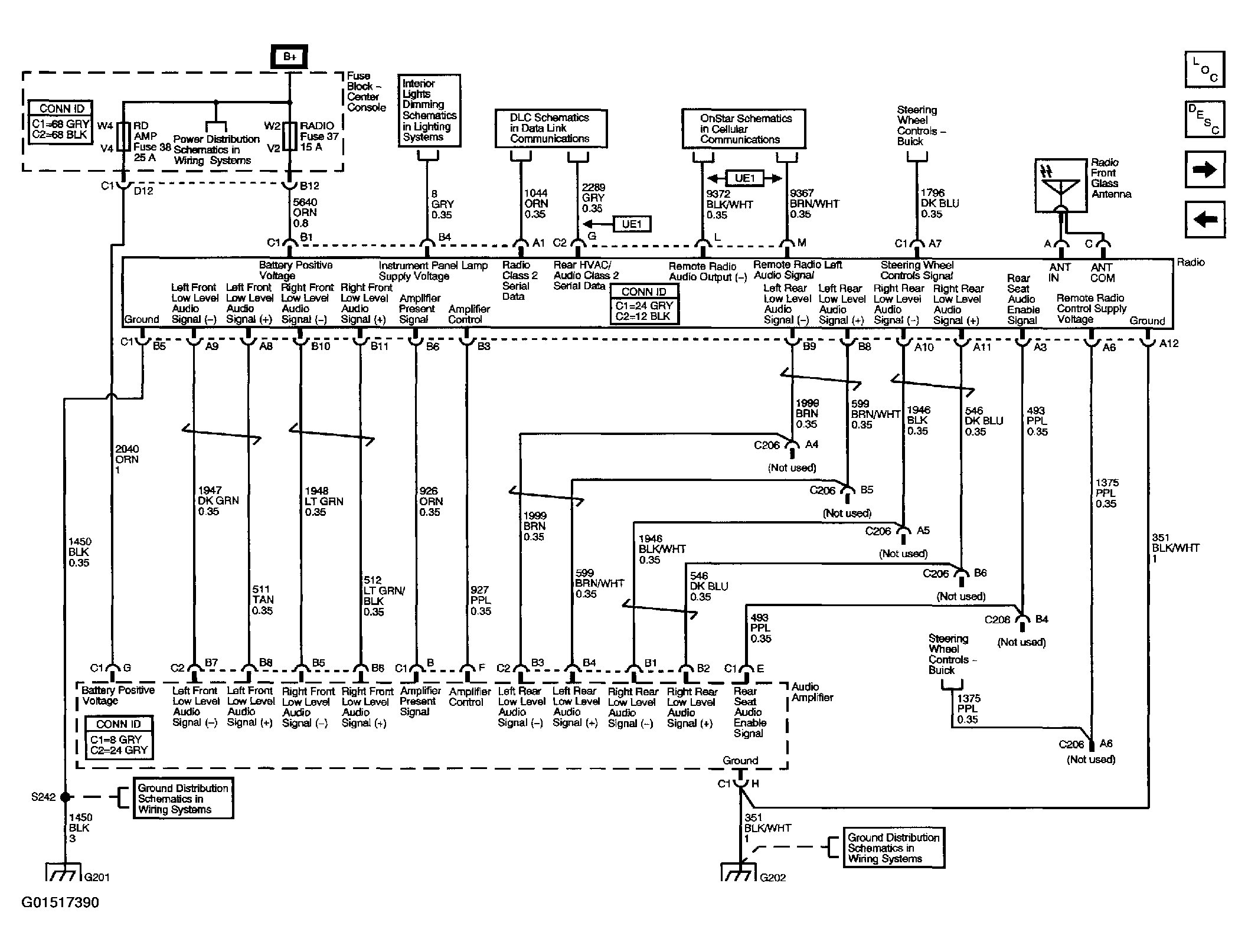

Fig 9: Uplevel Radio W/Rear Seat Audio Controls (UQ3 w/U32) Diagram - Buick

Courtesy of GENERAL MOTORS CORP.

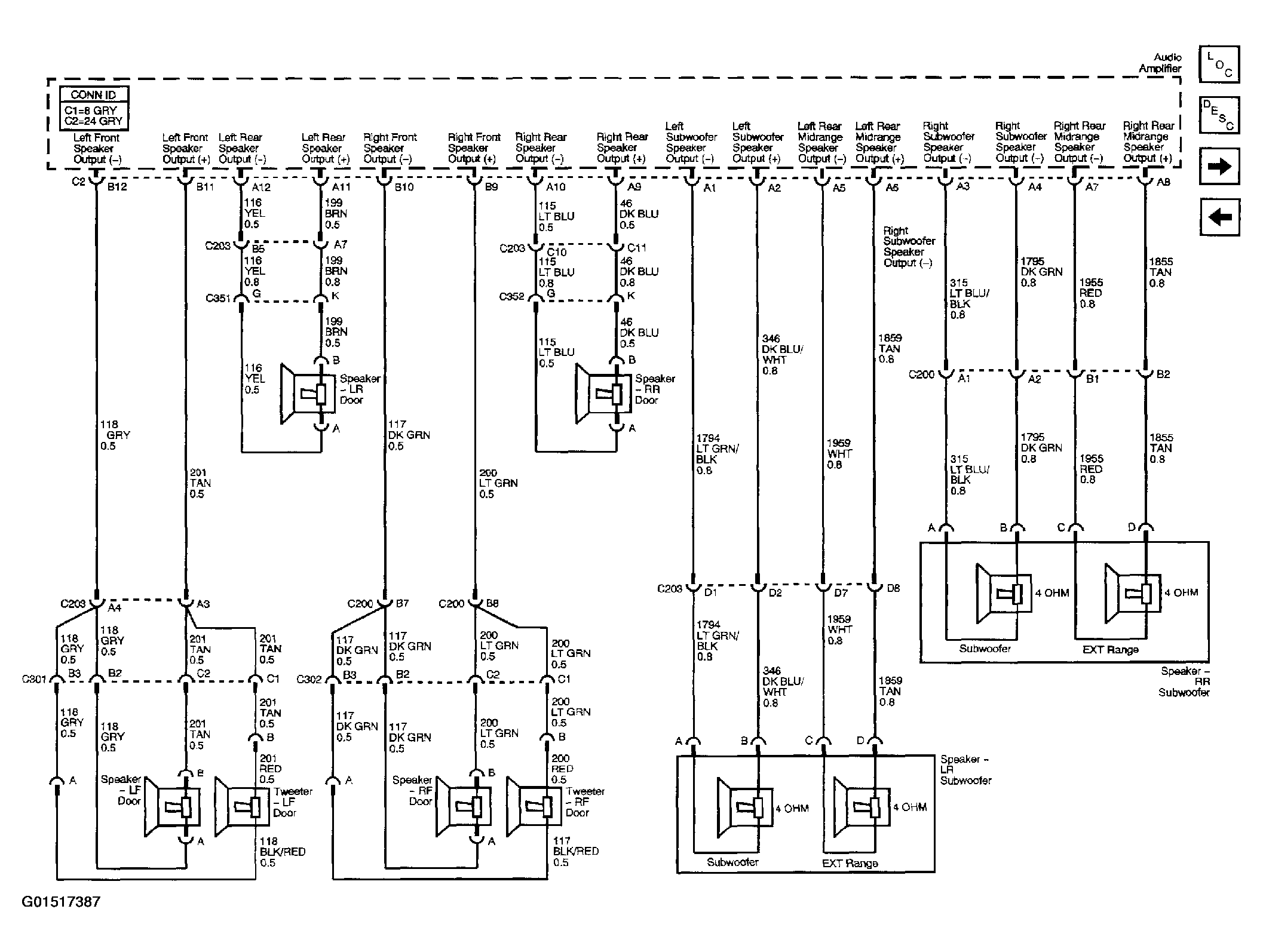

Fig 10: Radio Speakers (UQ3) Diagram - Buick

Courtesy of GENERAL MOTORS CORP.

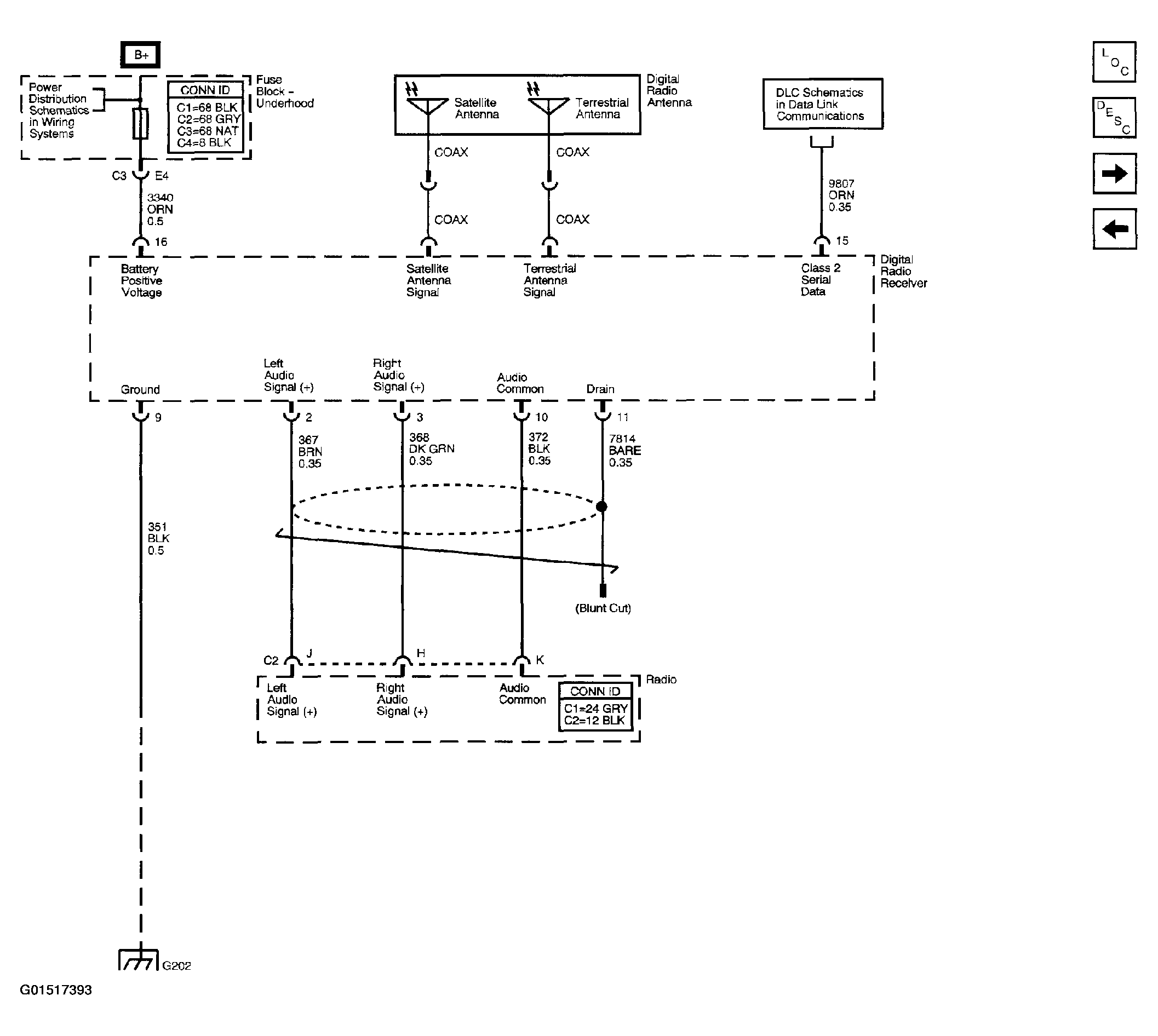

Fig 11: Digital Radio Receiver w/U2K Diagram

Courtesy of GENERAL MOTORS CORP.

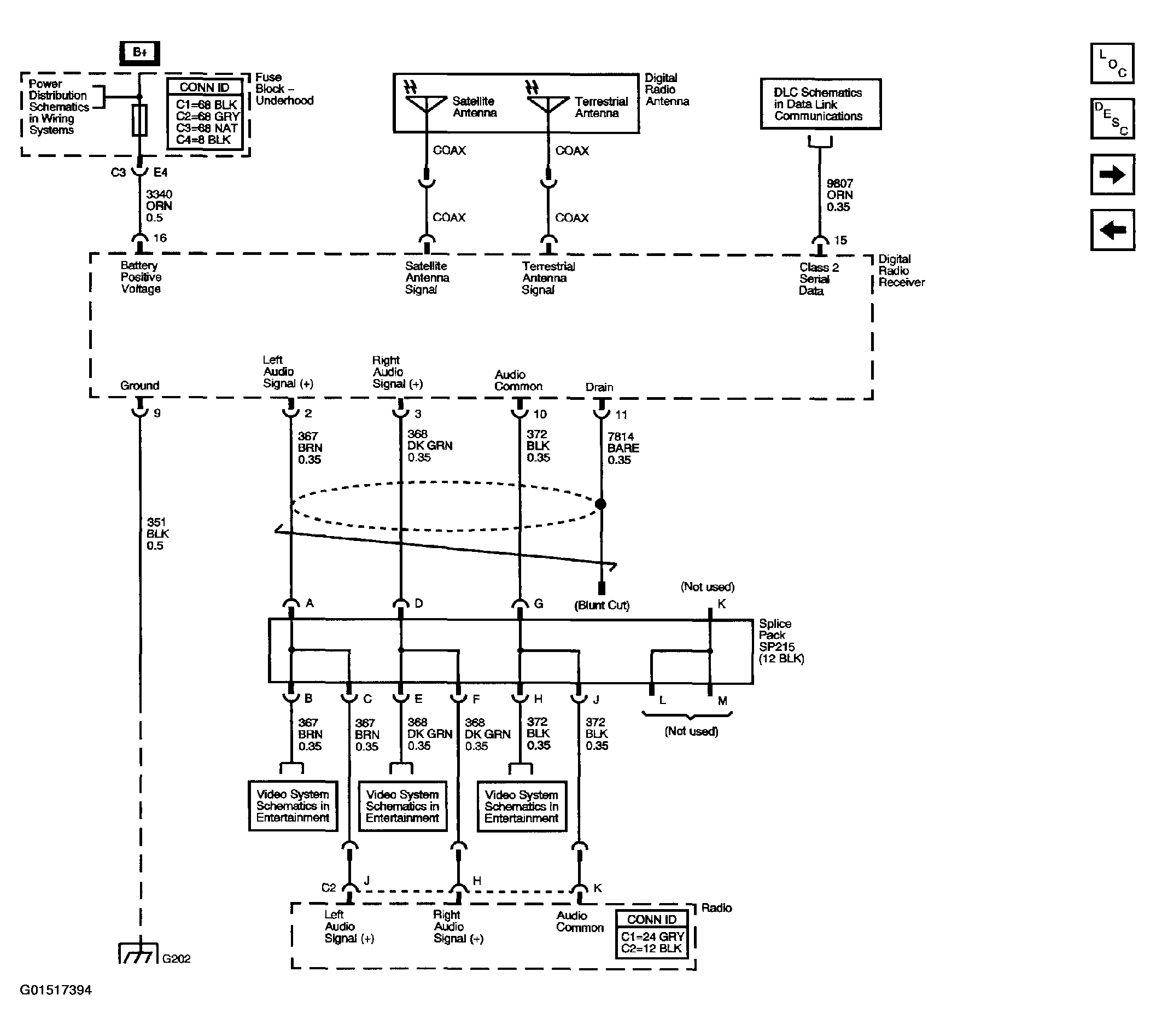

Fig 12: Digital Radio Receiver w/U2K & UE1

Courtesy of GENERAL MOTORS CORP.

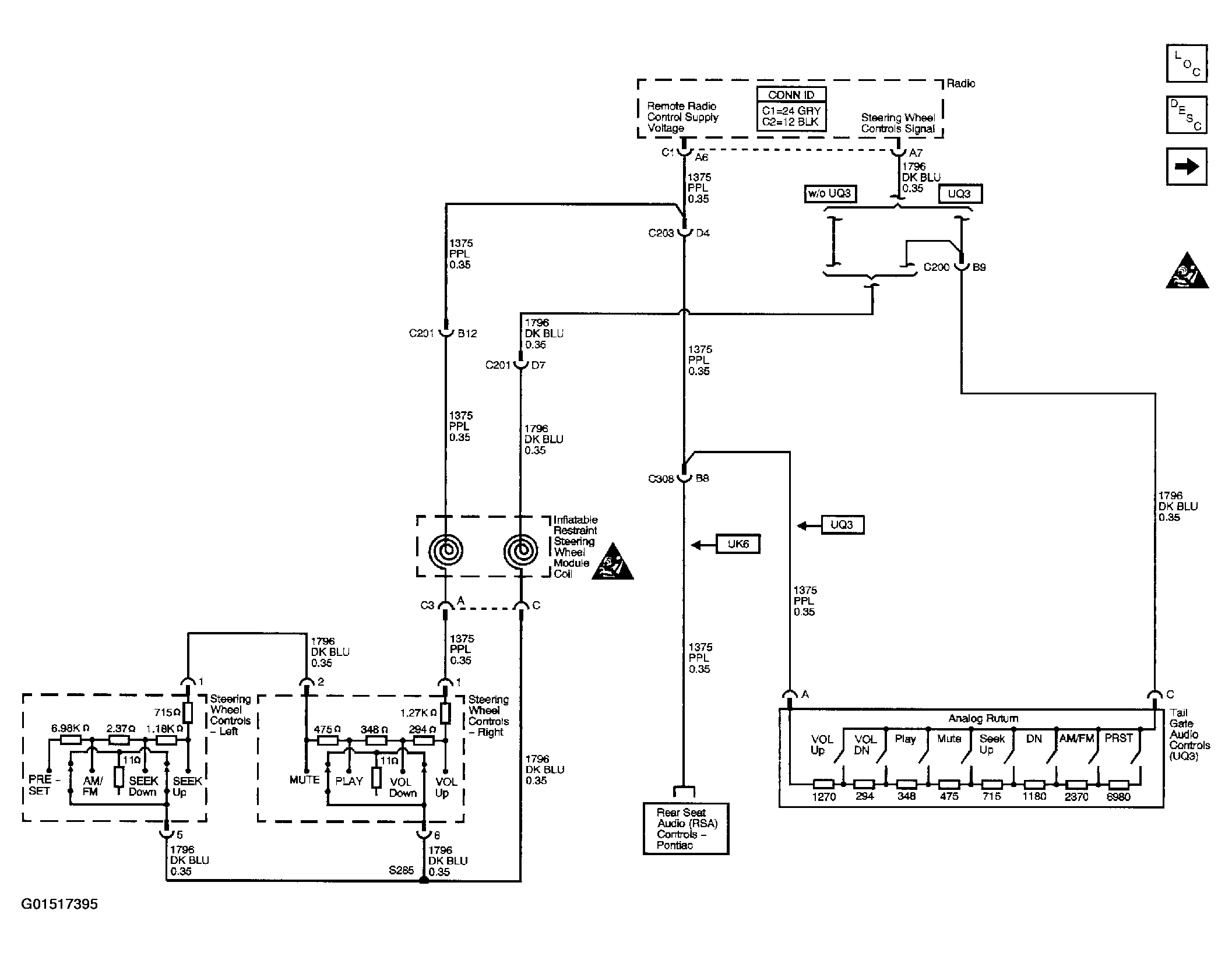

Fig 13: Steering Wheel & Tail Gate Controls Diagram - Pontiac

Courtesy of GENERAL MOTORS CORP.

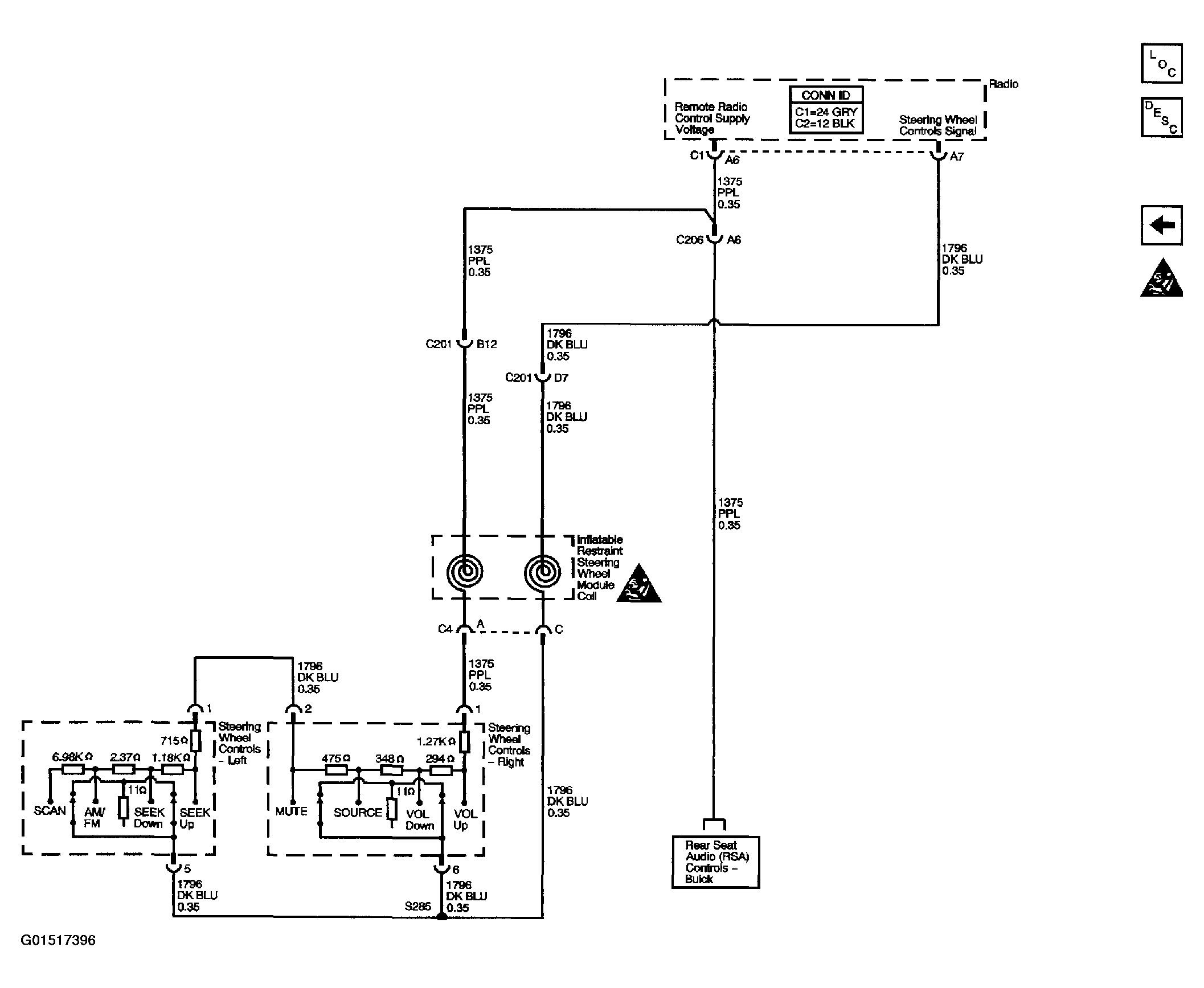

Fig 14: Steering Wheel Controls Diagram - Buick

Courtesy of GENERAL MOTORS CORP.

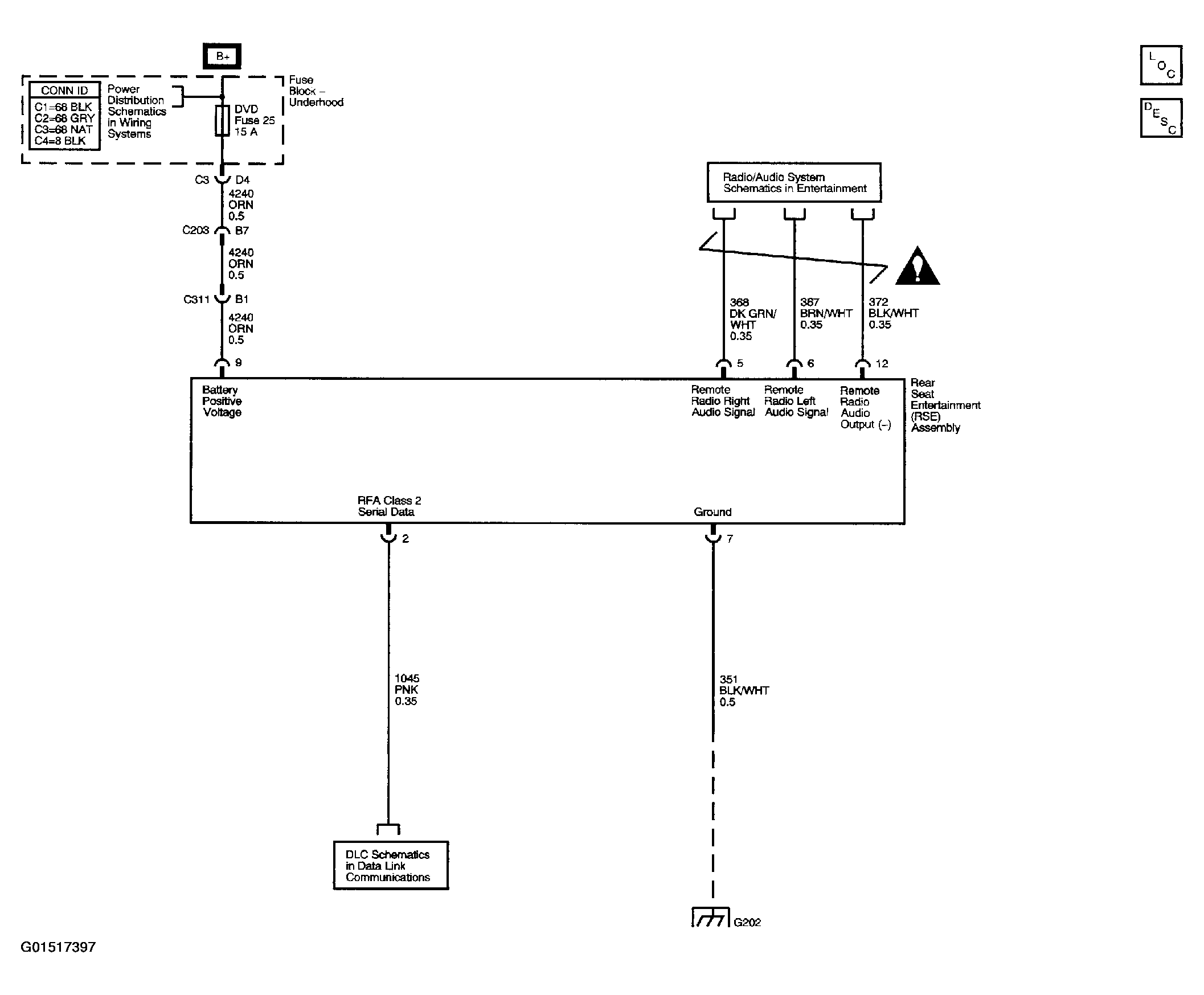

Fig 15: Video System Schematics

Courtesy of GENERAL MOTORS CORP.
