Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side instrument panel insulator.

    Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .

  2. Rotate the cruise control release switch counterclockwise until the travel stop has been reached (approximately 60 degrees).

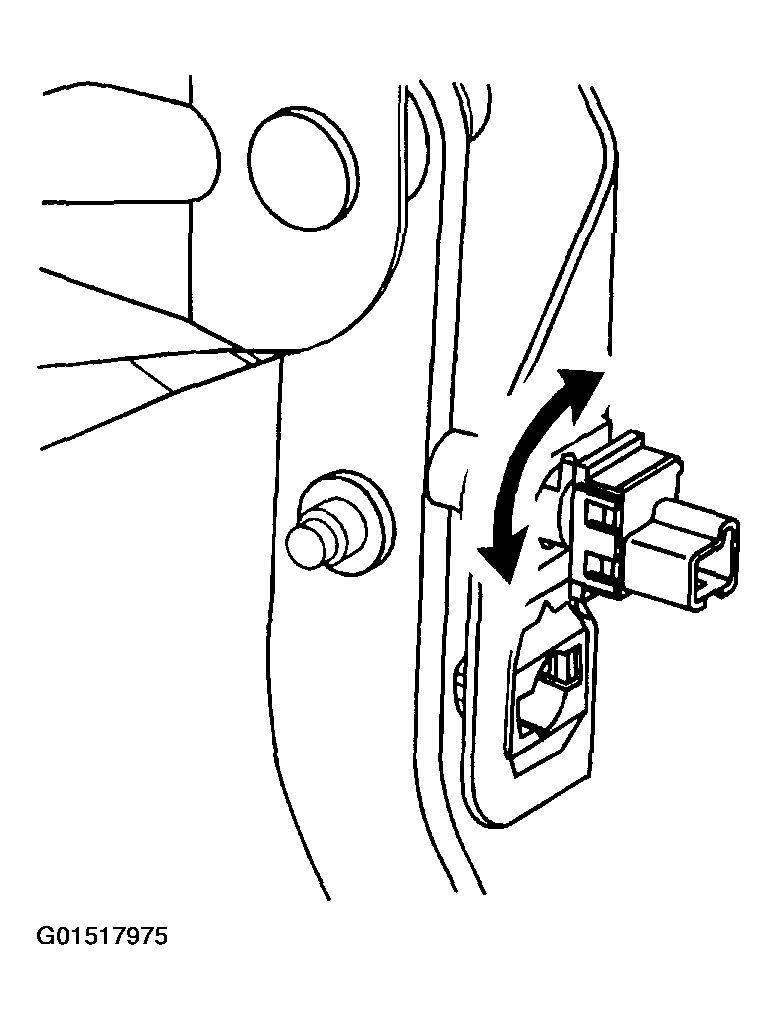

    Fig 1: Rotating Cruise Control Release Switch Counterclockwise
    G01517975Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control release switch from the retainer.
  4. Disconnect the cruise control release switch electrical connector.

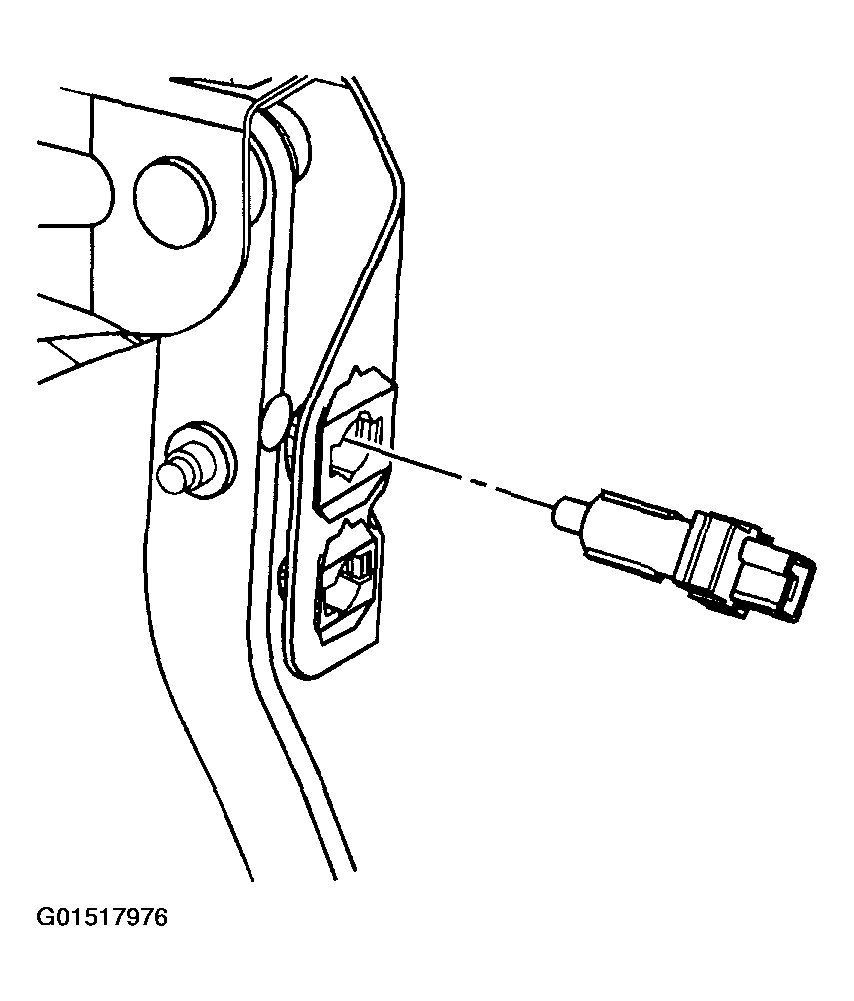

    Fig 2: Removing Cruise Control Release Switch From Retainer
    G01517976Courtesy of GENERAL MOTORS CORP.
