Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the stop lamp switch (2).
  2. Remove the pushrod retaining clip (4).

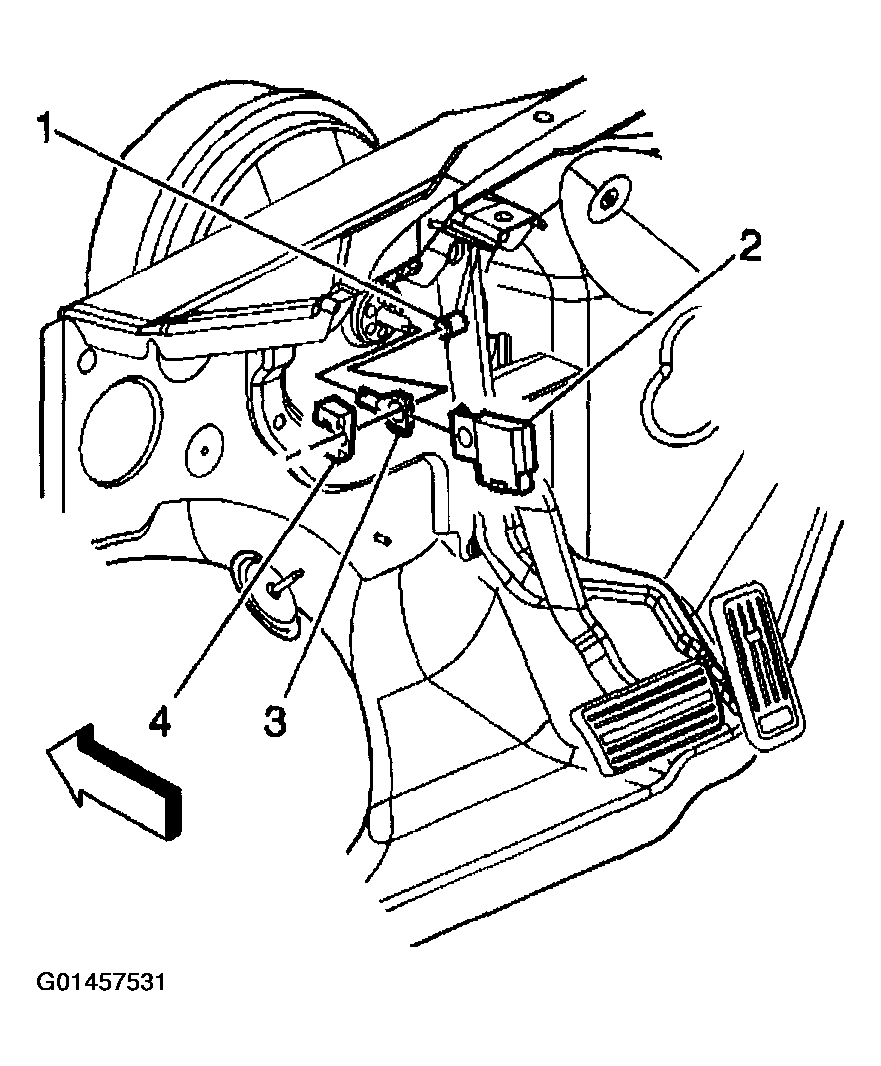

    3. Fig 1: Removing Electrical Connector, Pushrod Retaining Clip & Stop Lamp Switch
    G01457531Courtesy of GENERAL MOTORS CORP.
  3. Remove the stop lamp switch (2).
