Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster bezel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Unsnap the switch from the housing.
  3. Disconnect the electrical connectors.

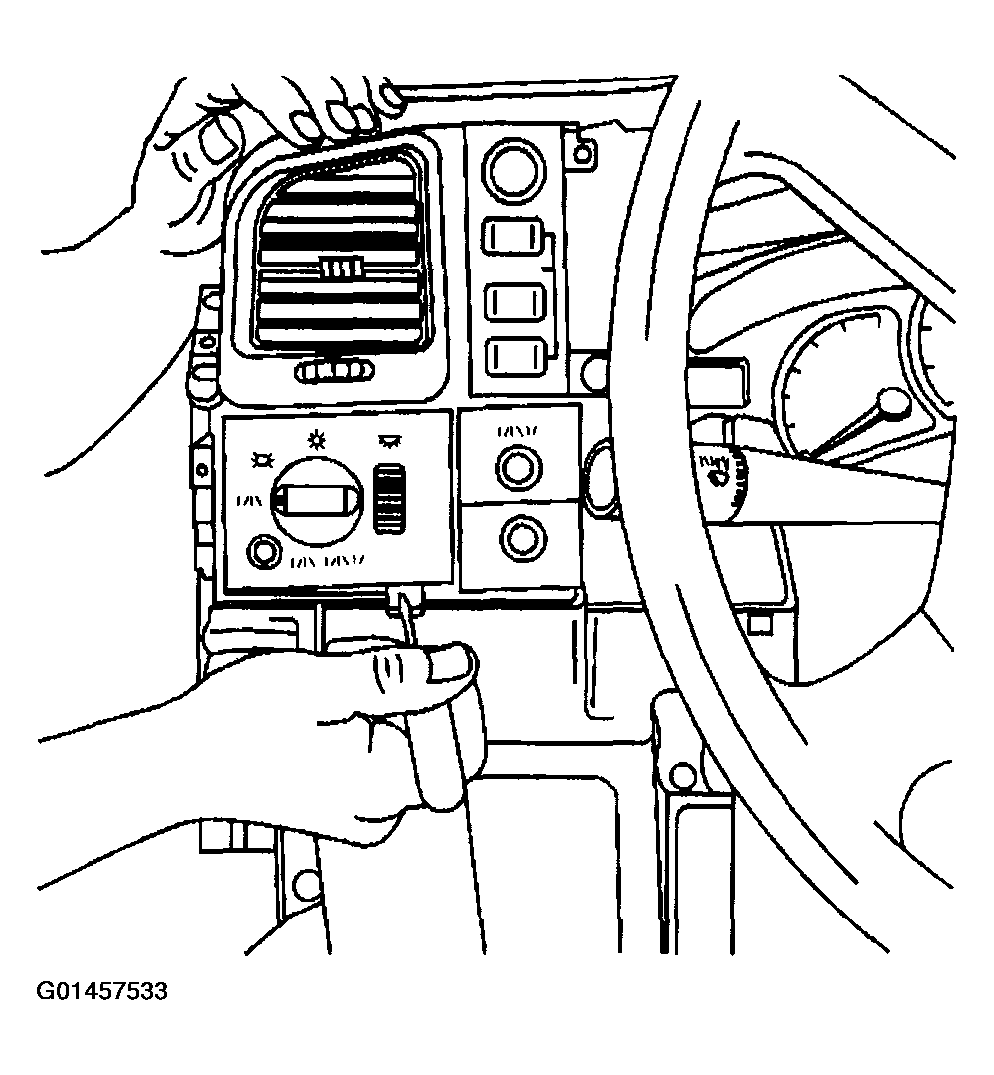

    Fig 1: Removing Instrument Cluster Bezel
    G01457533Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch.

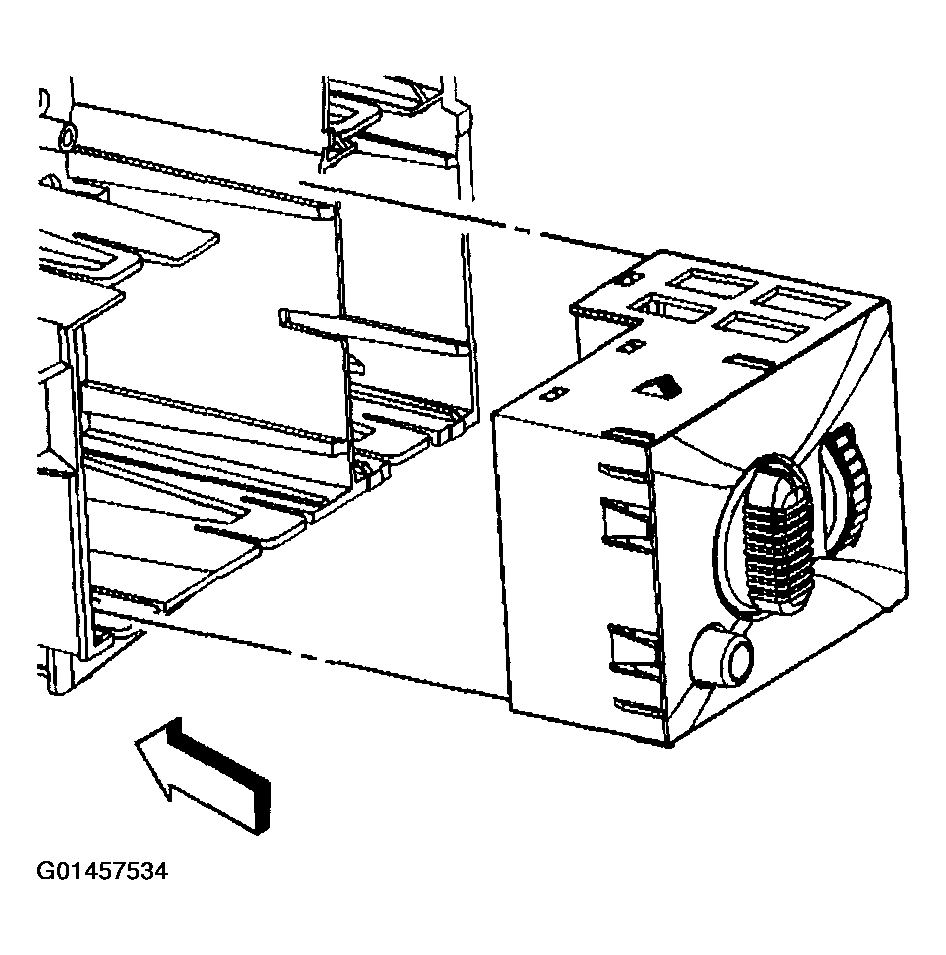

    Fig 2: Removing Switch
    G01457534Courtesy of GENERAL MOTORS CORP.
