Headliner Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Partially peel back the seaming welts.
- Remove the following parts:
- Sunroof seaming welt (vehicles with sunroof)
- Console (4 door) (See CONSOLE REMOVAL/INSTALLATION .)
- A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
- Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
- B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
- Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
- Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
- Trunk side upper trim (5 door) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
- C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
- Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
- Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION .)
- Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
- Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)

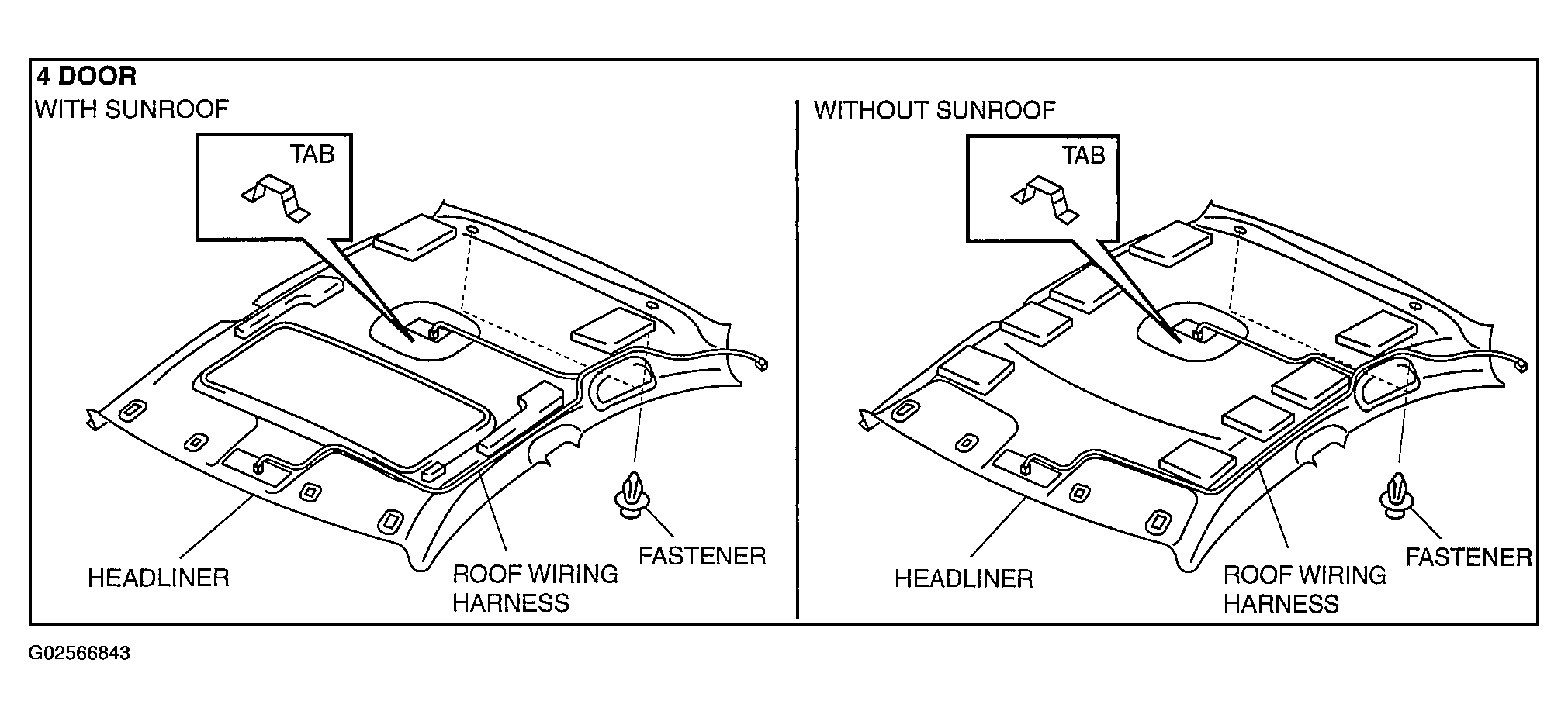

- Disconnect the roof wiring harness connector and remove the roof wiring harness connector clip from the body.

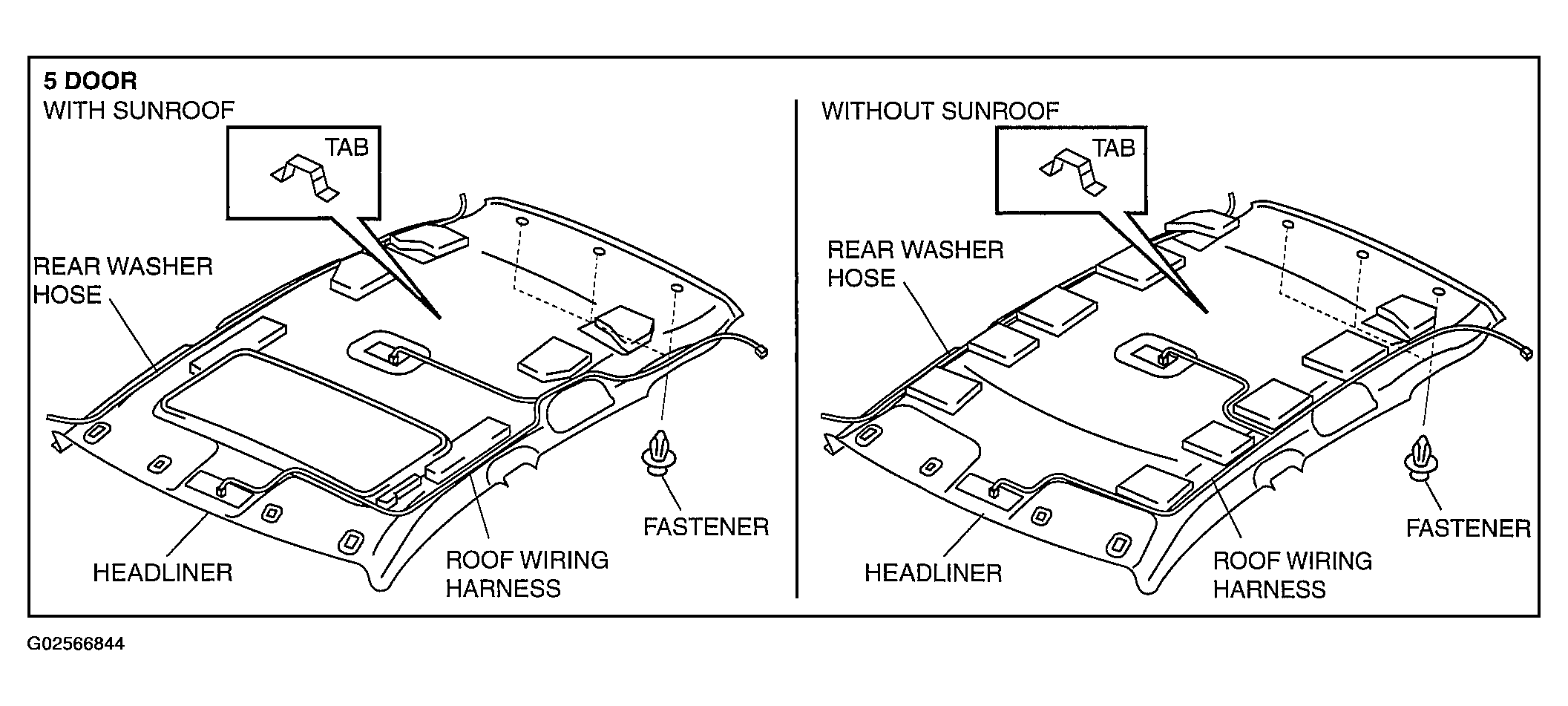

- Disconnect the rear washer hose. (5 door)
- Remove the fasteners.
- Detach the tab from the roof panel and remove the headliner.
- Take the headliner out from the opened passenger-side door. (4 door)
- Take the headliner out from the opened liftgate. (5 door)
- Install in the reverse order of removal.
