Steering Shaft Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the column bearing for excessive play and damage.
Verify that the measurement of the steering shaft indicated in the figure is as specified.
- If not within the specification replace the steering shaft component.
1. Standard 315-320 mm {12.41-12.59 in}
Fig 1: Identifying Standard Steering Shaft Length
Courtesy of MAZDA MOTORS CORP.
Inspect the tilt/telescope mechanism operation for the following.
1. Tilt/telescope lever moves smoothly from the lock to the unlock position.
2. Steering shaft is fixed firmly when the tilt/telescope lever is locked.
  - If there is any malfunction, replace the steering shaft.

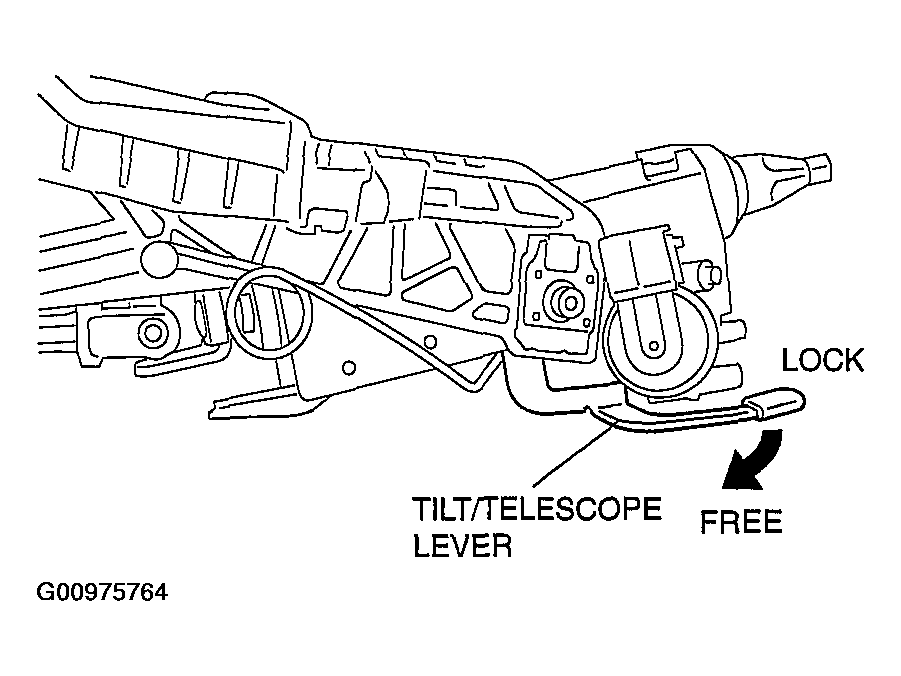

Fig 2: Inspecting Tilt/Telescope Lock Lever
Courtesy of MAZDA MOTORS CORP.
