Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the muffler nuts from the intermediate pipe.

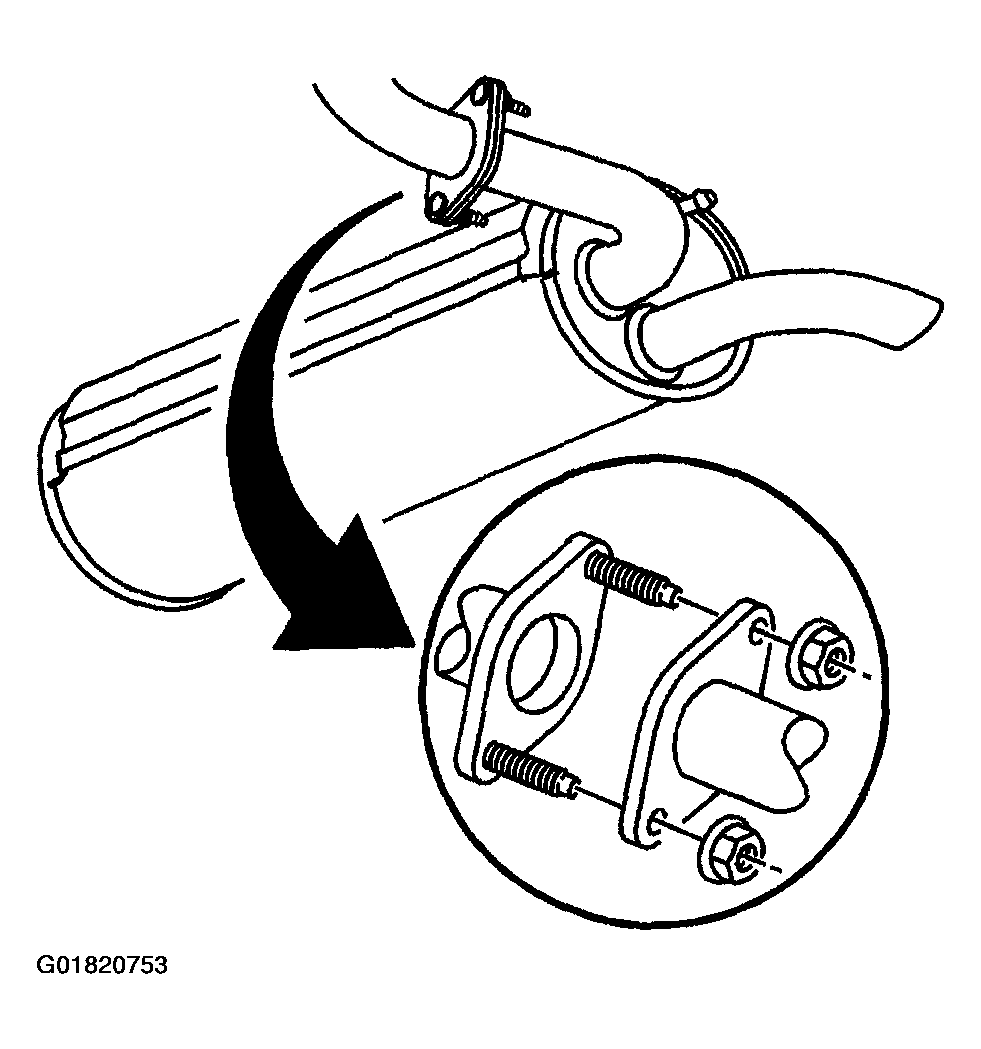

    Fig 1: Removing Exhaust Muffler To Intermediate Pipe
    G01820753Courtesy of GENERAL MOTORS CORP.
  3. Remove the muffler from the hangers.

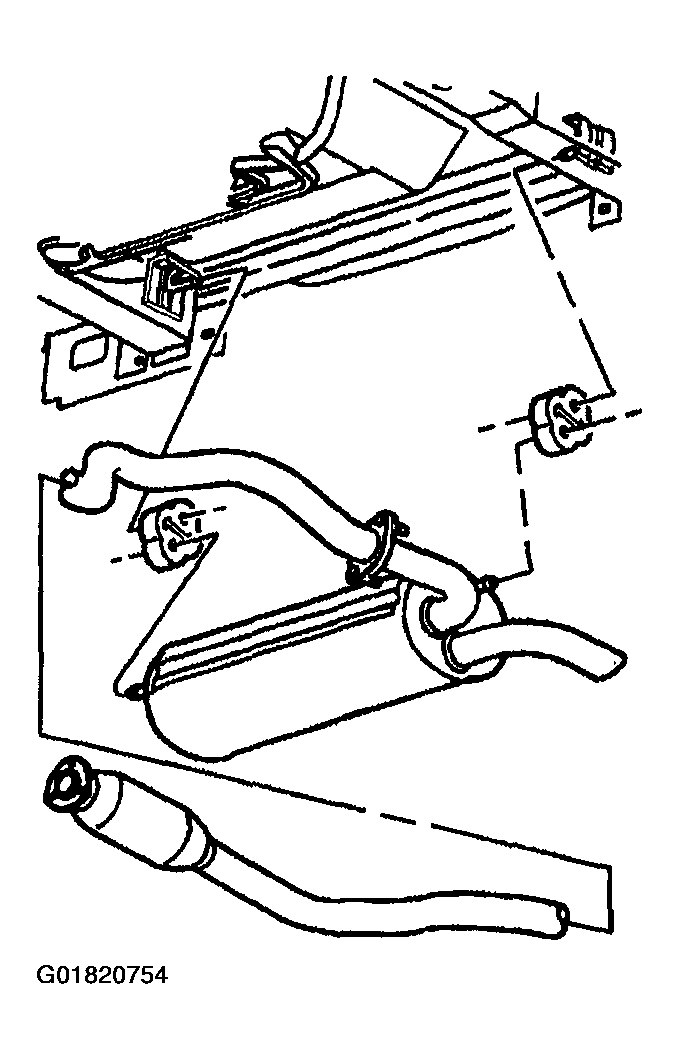

    Fig 2: Removing Muffler
    G01820754Courtesy of GENERAL MOTORS CORP.
