Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Remove intermediate pipe to muffler nuts.

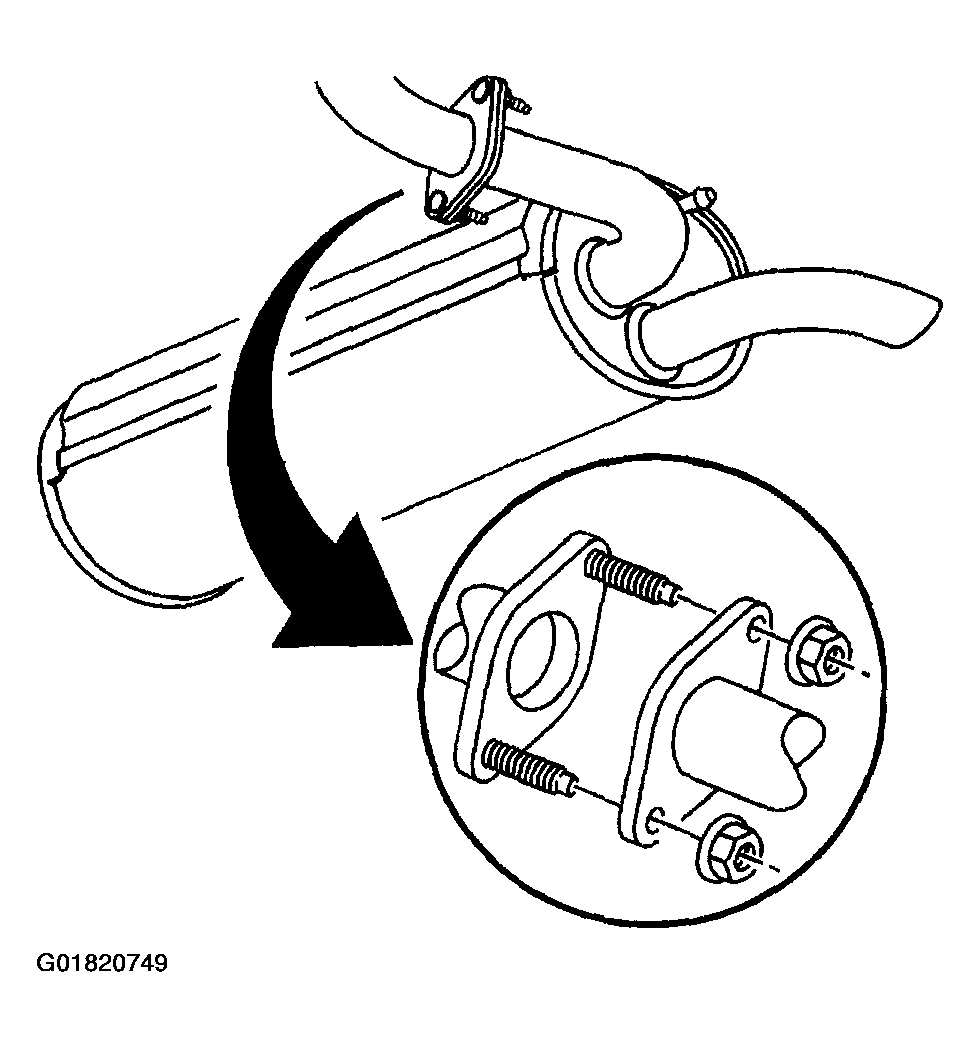

Fig 1: Removing Intermediate Pipe To Muffler Nuts
Courtesy of GENERAL MOTORS CORP.
Disconnect the exhaust muffler rear hanger insulators from the exhaust muffler.
Remove the exhaust muffler.

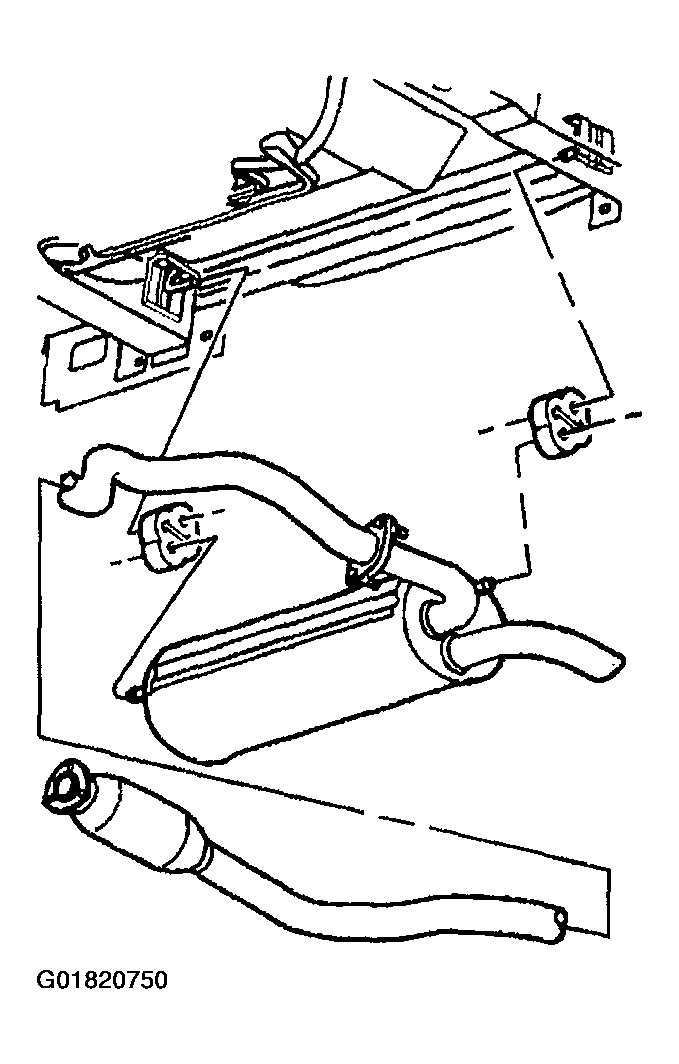

Fig 2: Removing Exhaust Muffler
Courtesy of GENERAL MOTORS CORP.
