Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the antenna lead (2) to the antenna base (3).
  2. Install the antenna base (3) to the antenna mounting spacer (1), by pushing in a upward motion.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the antenna mounting bolts to the antenna base (3).

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  4. Reposition the rear compartment carpet and close rear trunk lid.
  5. Install the antenna mast to the antenna base (3).

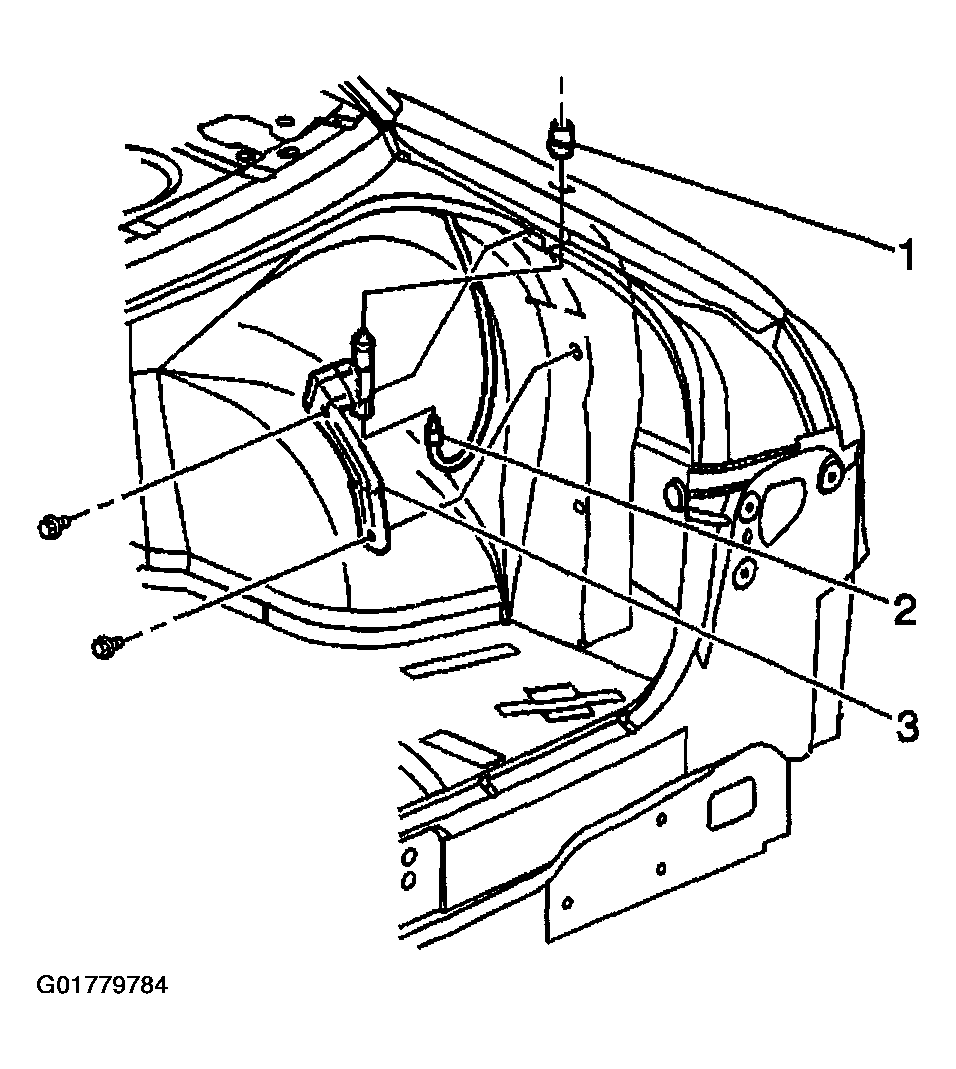

    Fig 1: Installing Fixed Antenna
    G01779784Courtesy of GENERAL MOTORS CORP.
