Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim plate from the instrument panel (IP) cluster. Refer TRIM PANEL REPLACEMENT -- IP CLUSTER .
  2. Remove the fog lamp/dimmer switch (2) from the trim panel by releasing the tabs (1) with a small flat bladed tool.

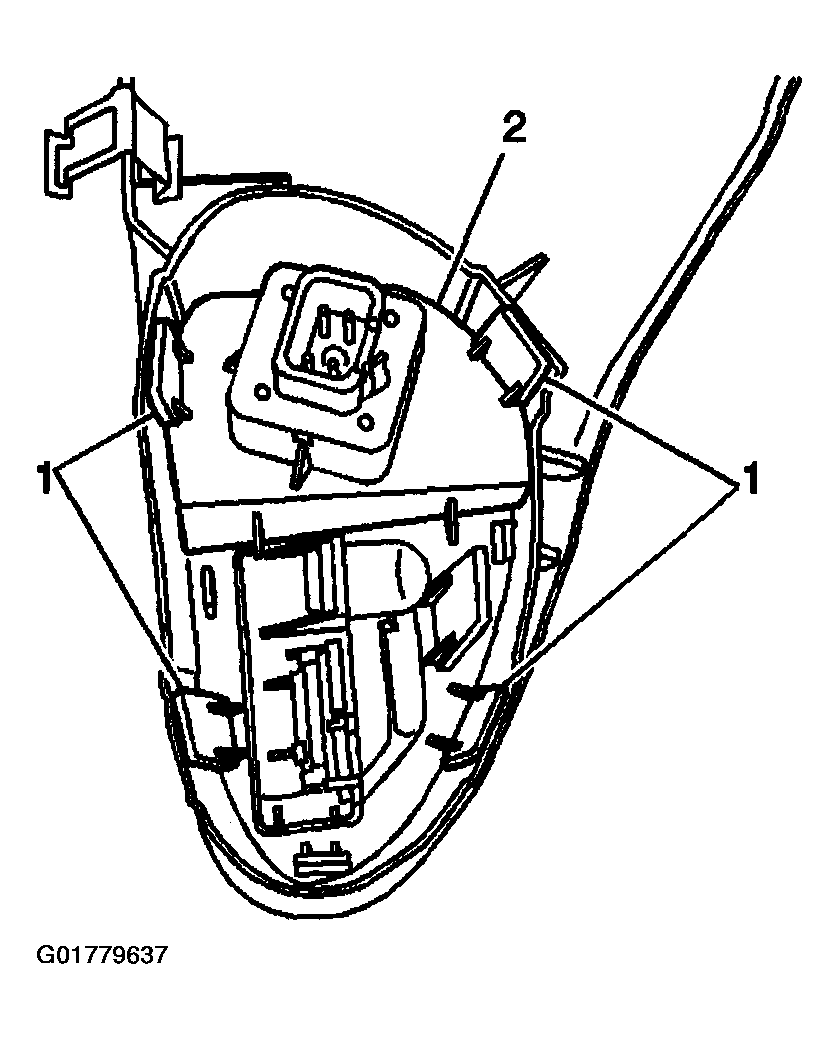

    Fig 1: Removing Front Fog Lamp Switch
    G01779637Courtesy of GENERAL MOTORS CORP.
