Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the glove box.
  2. Disconnect the electrical connectors.
  3. Use the following steps in order to remove the amplifier from the bracket:
    1. 3.1. Push the retention clip upward and in.
    2. 3.2. Rotate the amplifier.
    3. 3.3. Push the amplifier up in order to clear the amplifier mounting bracket and the HVAC module.
    4. 3.4. Remove the amplifier.

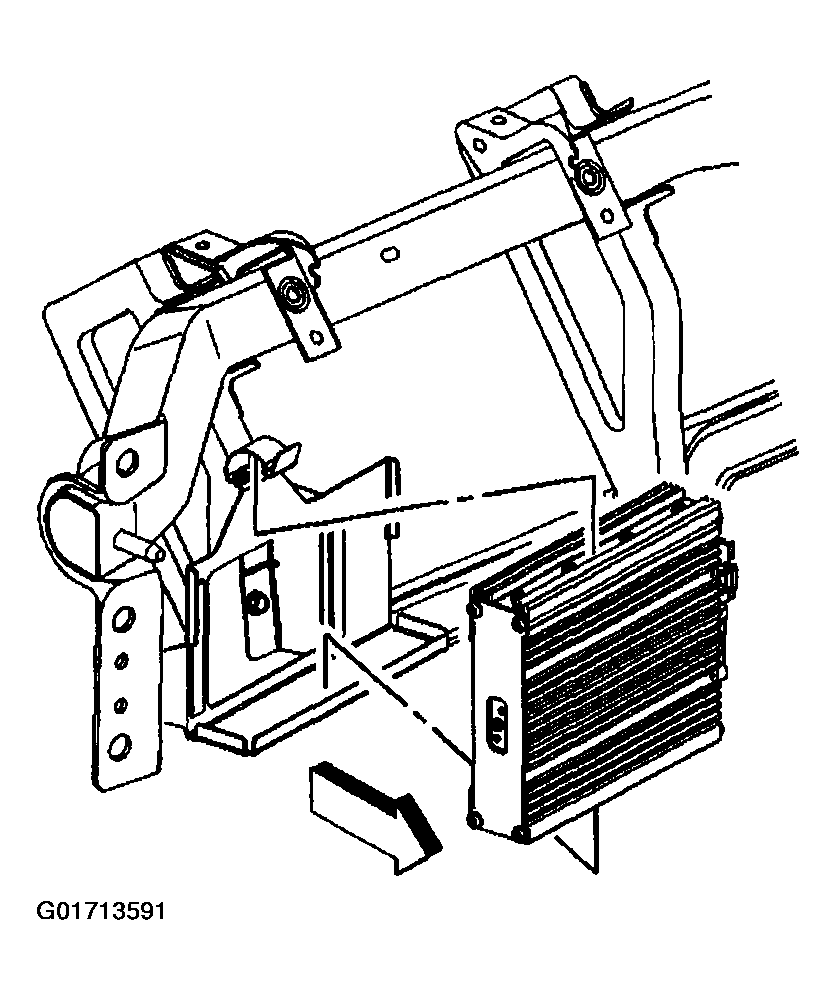

    Fig 1: Locating Amplifier
    G01713591Courtesy of GENERAL MOTORS CORP.
