Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

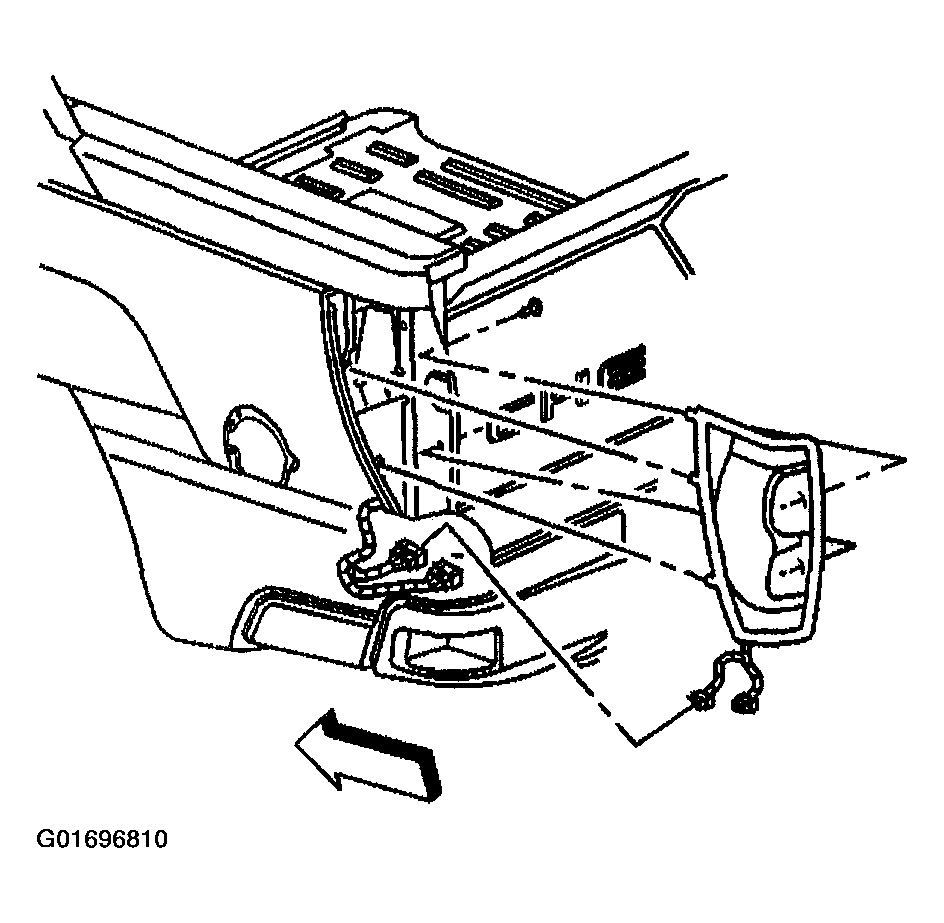

    Fig 1: Tail/Turn Signal Lamp Assembly
    G01696810Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb into the socket.
  2. Install the bulb socket to the tail/turn lamp assembly by rotating the socket 1/4 turn clockwise.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the tail/turn signal lamp assembly to the vehicle with the 2 screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  4. Close the endgate.
  5. Inspect the operation.
