Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster bezel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Unsnap the switch from the housing.

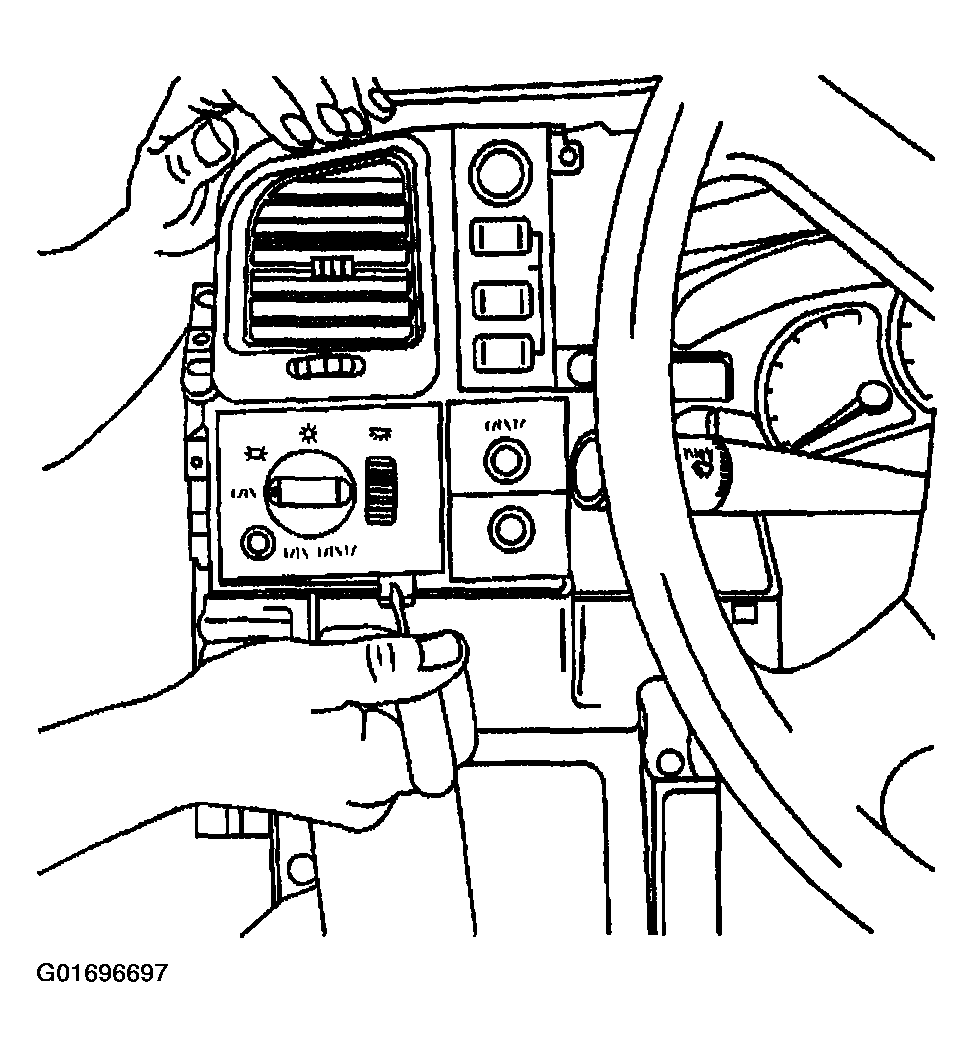

    3. Fig 1: Unsnapping Switch From Housing
    G01696697Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors.
  4. Remove the switch.

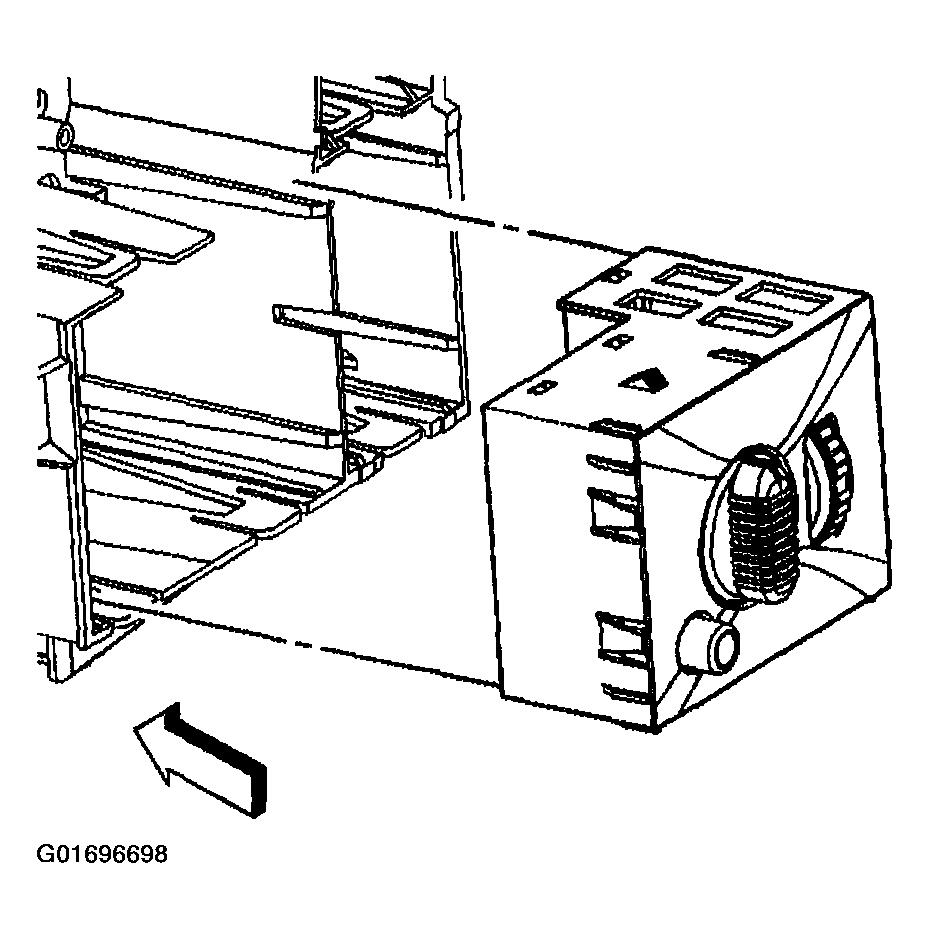

    5. Fig 2: Headlamp Switch
    G01696698Courtesy of GENERAL MOTORS CORP.
