Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the side rail lamp socket.

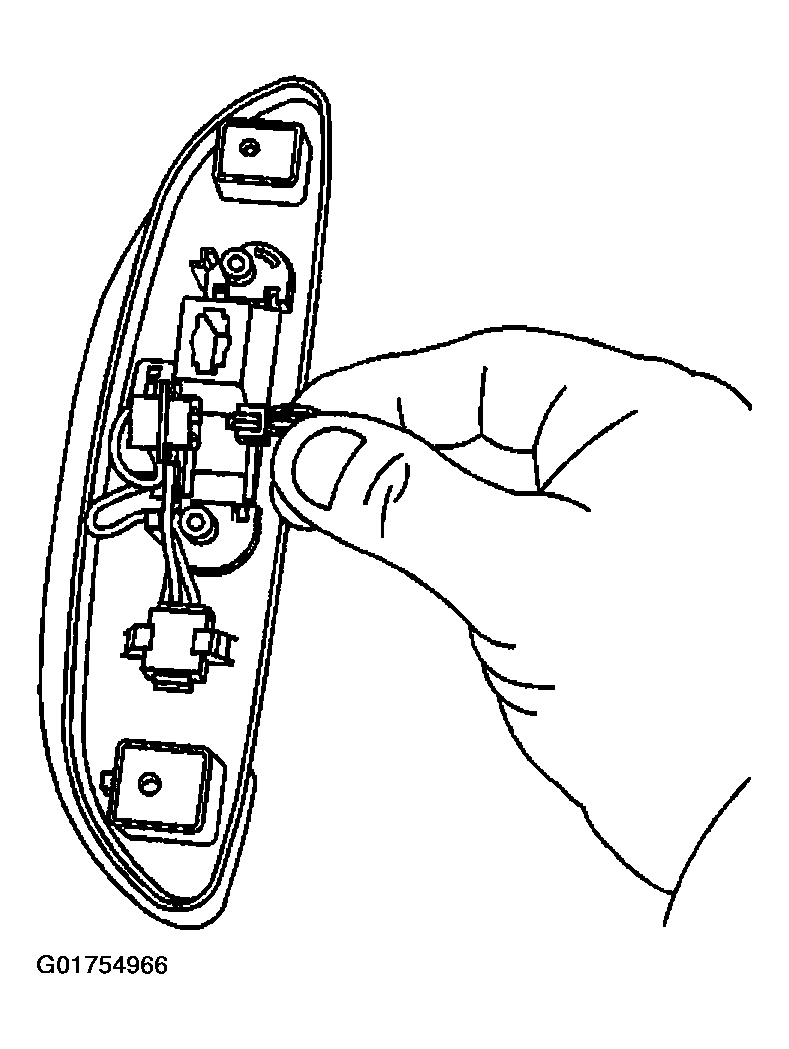

    Fig 1: Identifying Side Rail Lamp Bulb
    G01754966Courtesy of GENERAL MOTORS CORP.
  2. Install the socket to the side rail lamp housing.

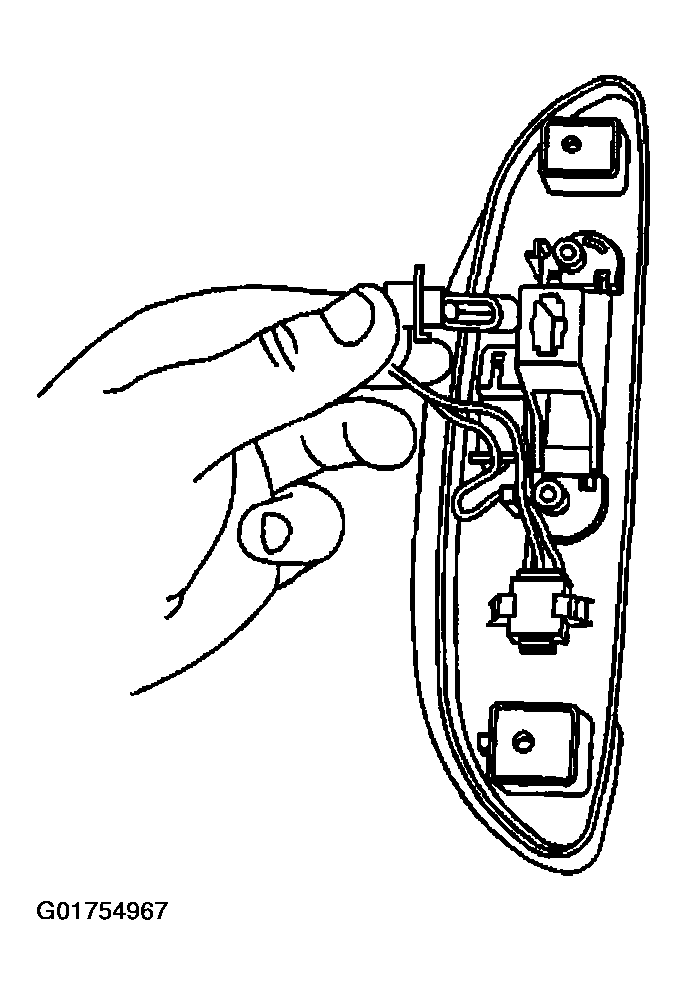

    Fig 2: Identifying Side Rail Lamp Housing Socket
    G01754967Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the side rail lamp.

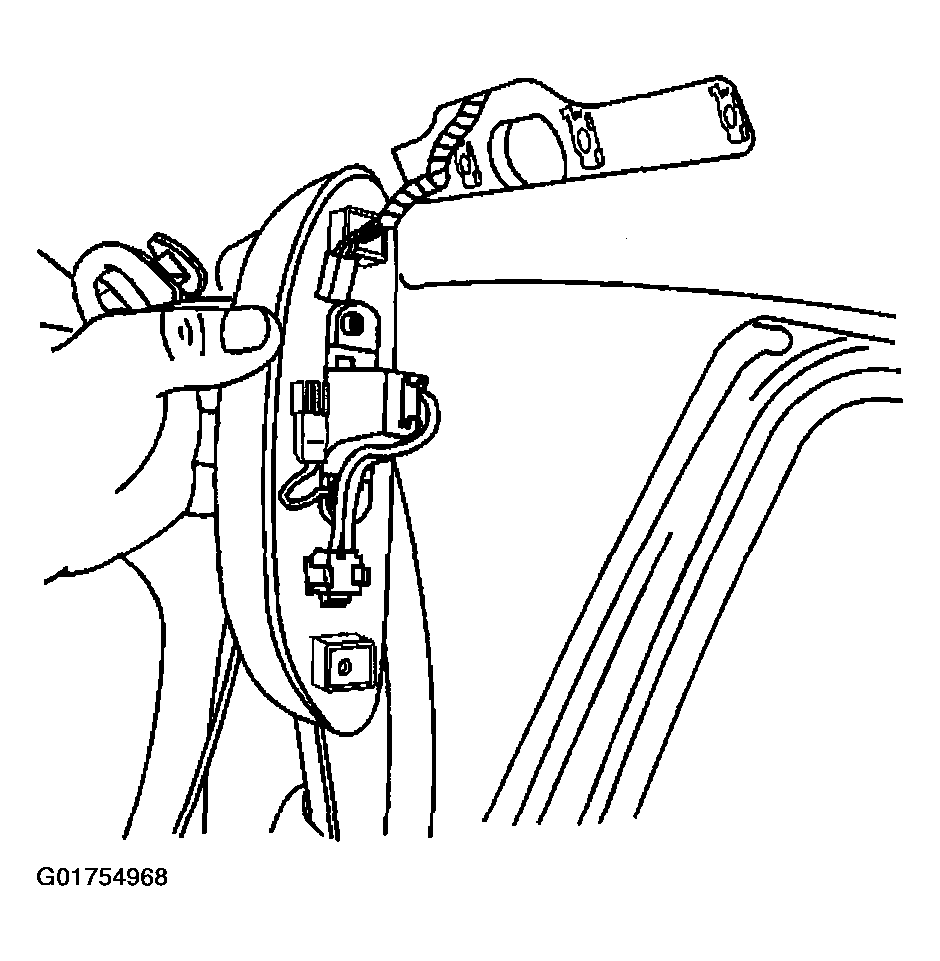

    Fig 3: Identifying Side Rail Lamp Electrical Connector
    G01754968Courtesy of GENERAL MOTORS CORP.
  4. Install the side rail lamp/assist handle to the roof.
    Fig 4: Installing Side Rail Lamp/Assist Handle
    G01754969Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  5. Install the screws to the assist handle. Tighten the screws to 3 N.m (27 in lbs).

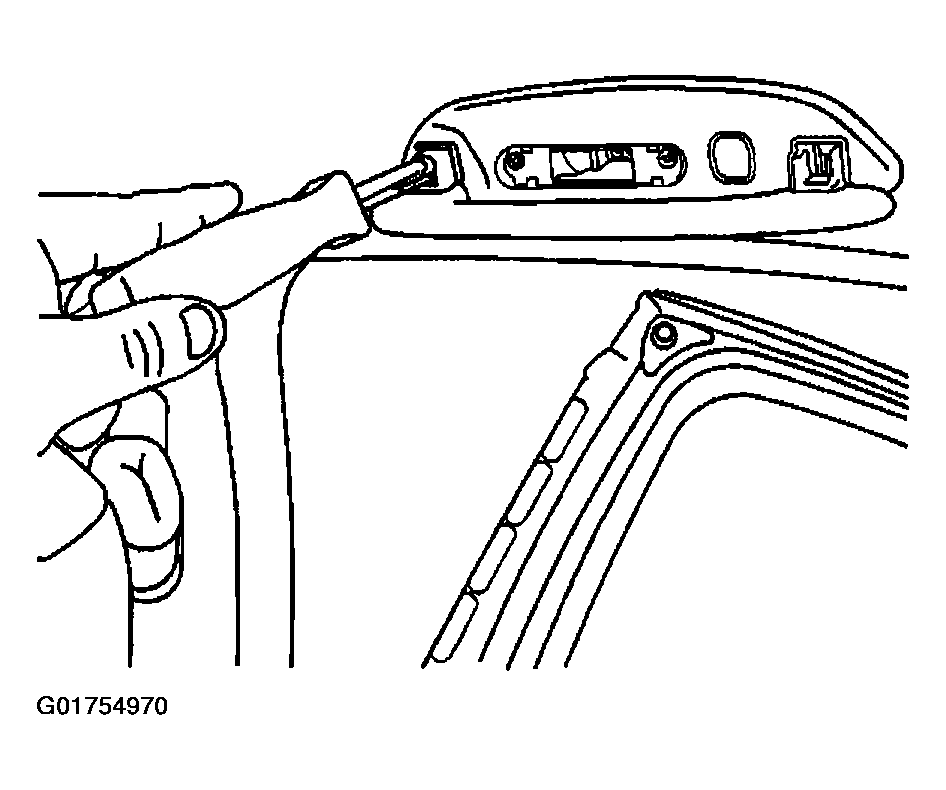

    Fig 5: Identifying Assist Handle Screws
    G01754970Courtesy of GENERAL MOTORS CORP.
