Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hook of the wiper arm through the opening in the wiper blade.
    Fig 1: Installing Wiper Arm Through Opening In Wiper Blade
    G01616234Courtesy of GENERAL MOTORS CORP.
  2. Position the wiper blade pivot in the inside radius of the wiper arm hook.
  3. Press the wiper blade pivot into the wiper arm hook until the pivot locks into the hook.
  4. Operate the windshield wipers and inspect for proper operation.

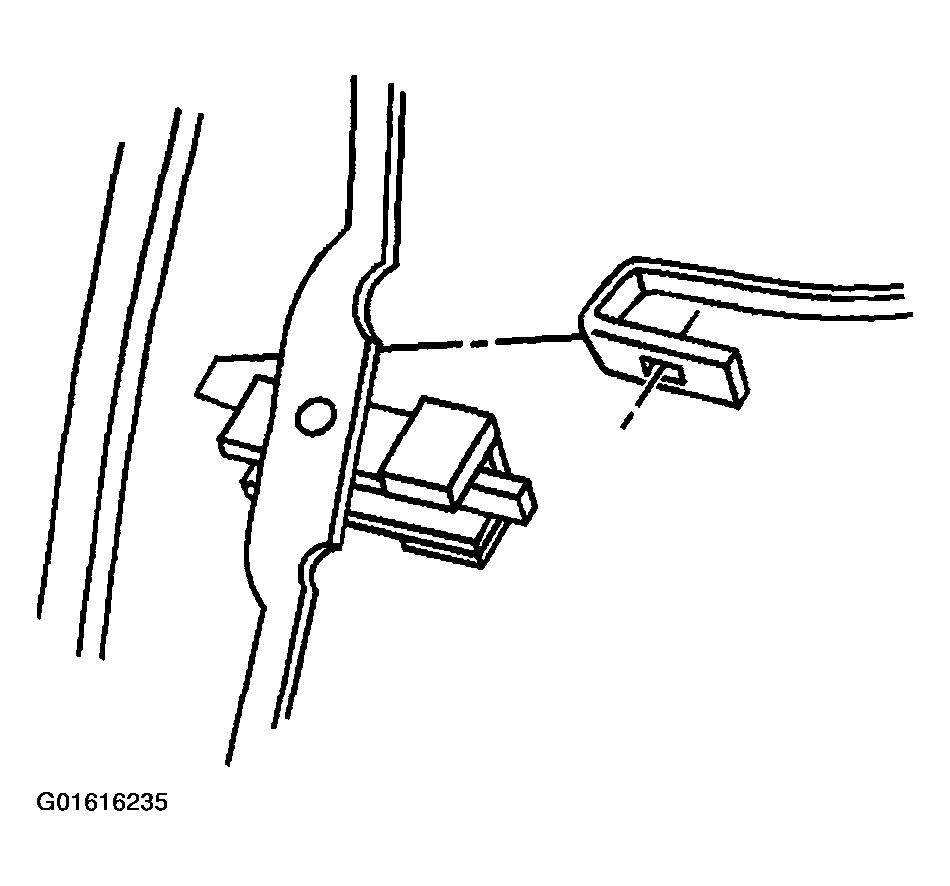

    Fig 2: Connecting Wiper Blade To Wiper Arm
    G01616235Courtesy of GENERAL MOTORS CORP.
