Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the washer solvent from the washer solvent container.
  2. Remove the washer solvent container filler neck. Refer to Washer Solvent Container Filler Neck Replacement .
  3. Remove the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT .
  4. Remove the washer solvent container screws.

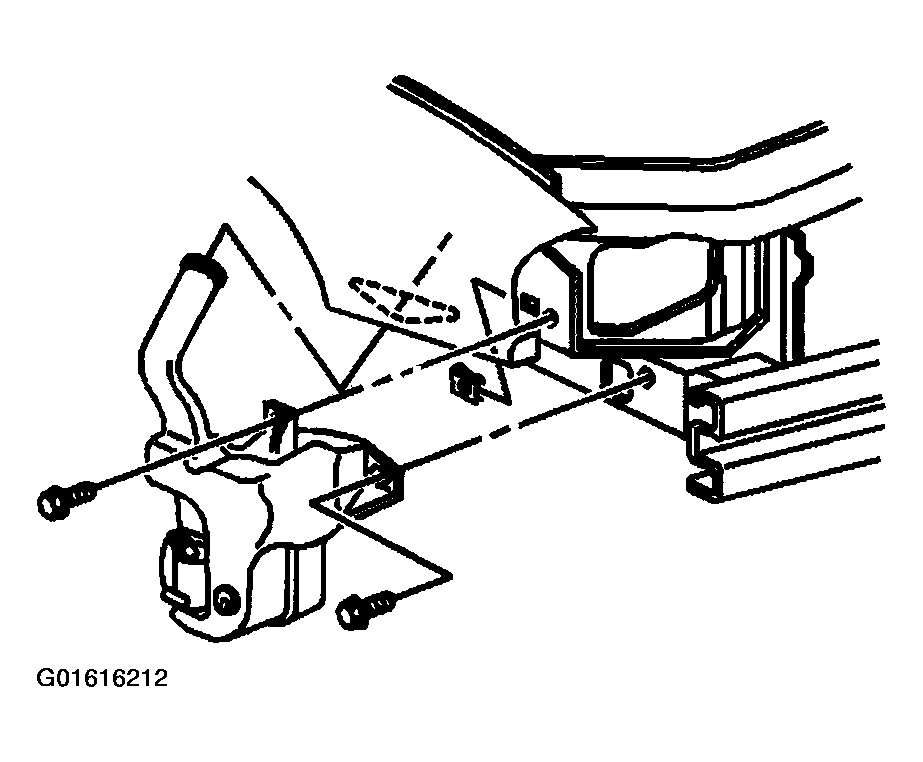

    Fig 1: Washer Solvent Container
    G01616212Courtesy of GENERAL MOTORS CORP.
  5. Remove the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
  6. Disconnect the washer pump hose.
  7. Disconnect the washer pump electrical connector.
  8. Disconnect the washer solvent level sensor electrical connector.
    Fig 2: Washer Solvent Container Level Sensor
    G01616213Courtesy of GENERAL MOTORS CORP.
  9. Remove the washer solvent container bracket screw.
  10. Remove the washer solvent container from the right frame rail.

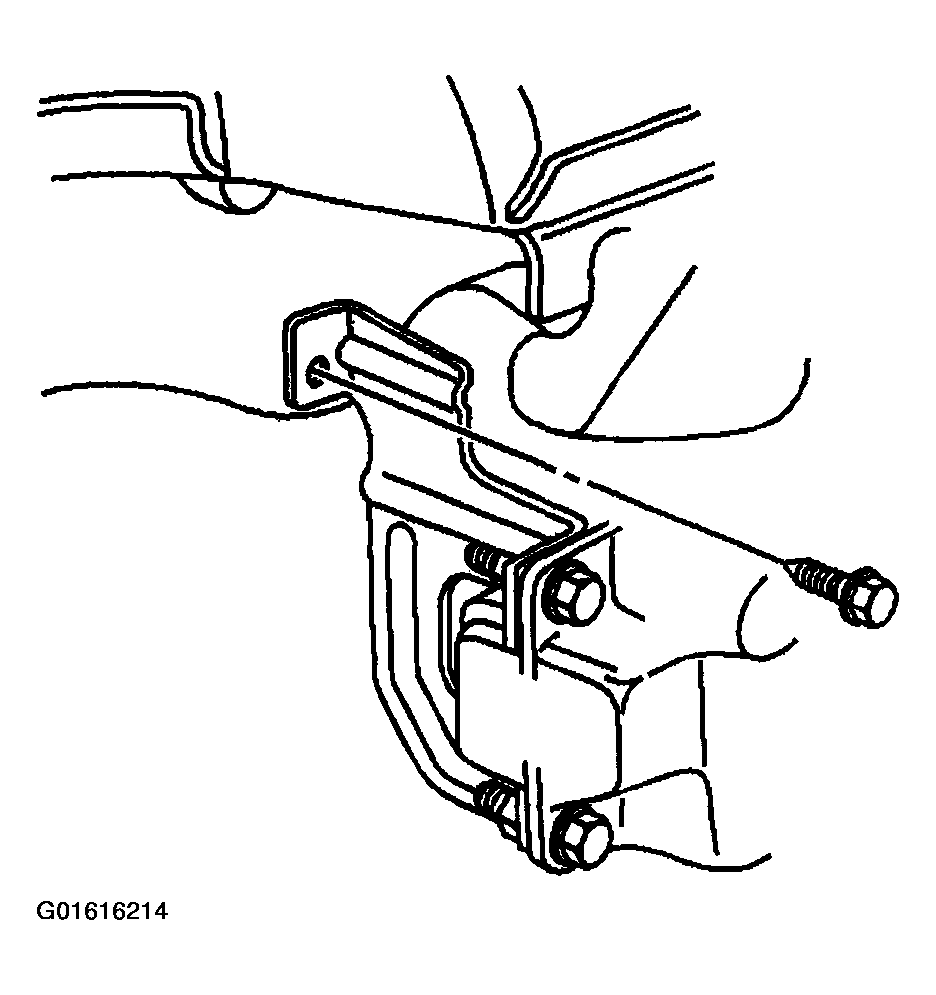

    Fig 3: Washer Solvent Container Bracket & Screws
    G01616214Courtesy of GENERAL MOTORS CORP.
