Steering Wheel Controls Schematics

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

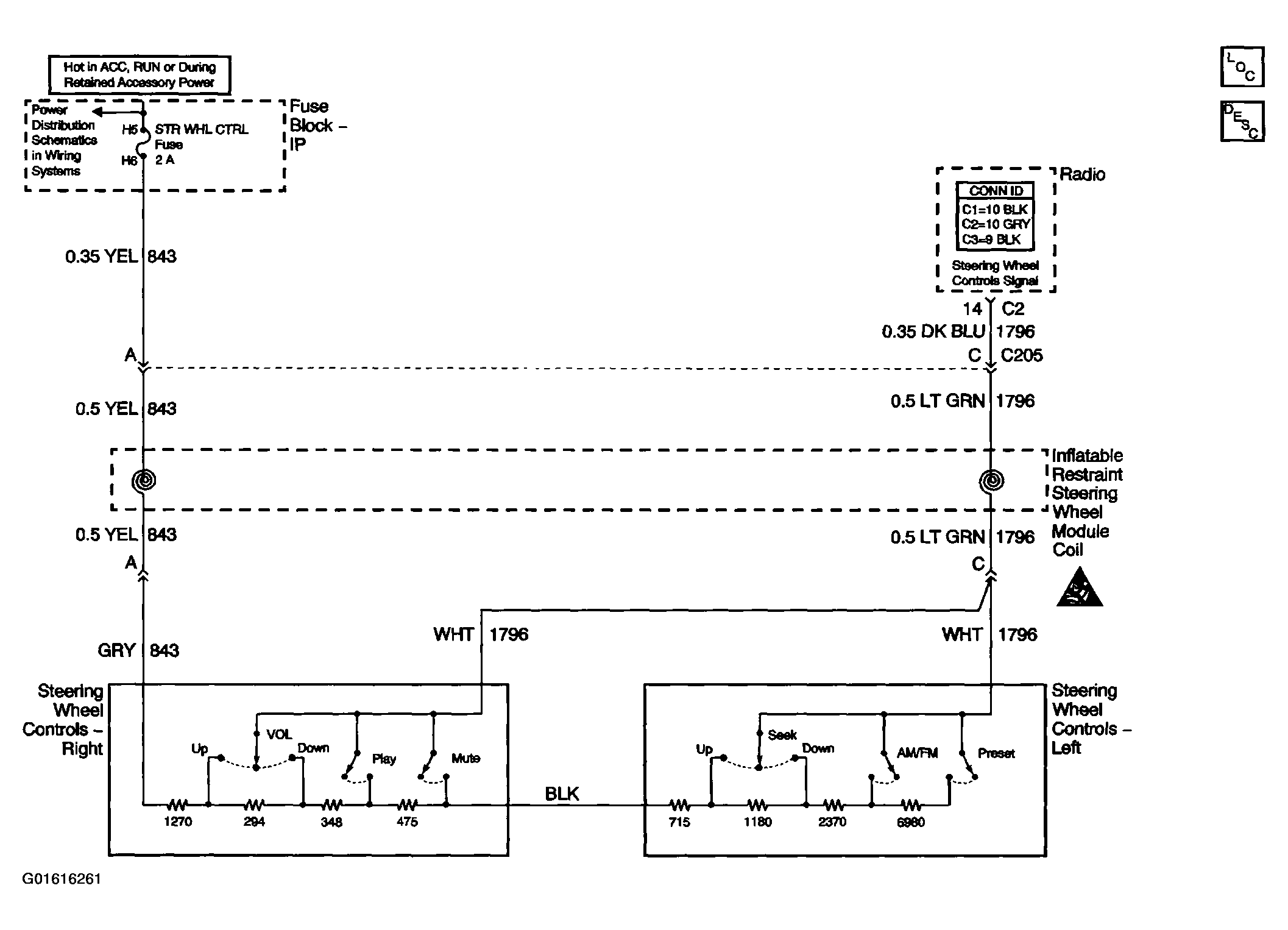

Fig 1: Steering Wheel Controls Schematics
G01616261Courtesy of GENERAL MOTORS CORP.
