Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor water deflector to the wiper drive system module.
  2. Install the wiper motor water deflector push-in retainer.
  3. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.

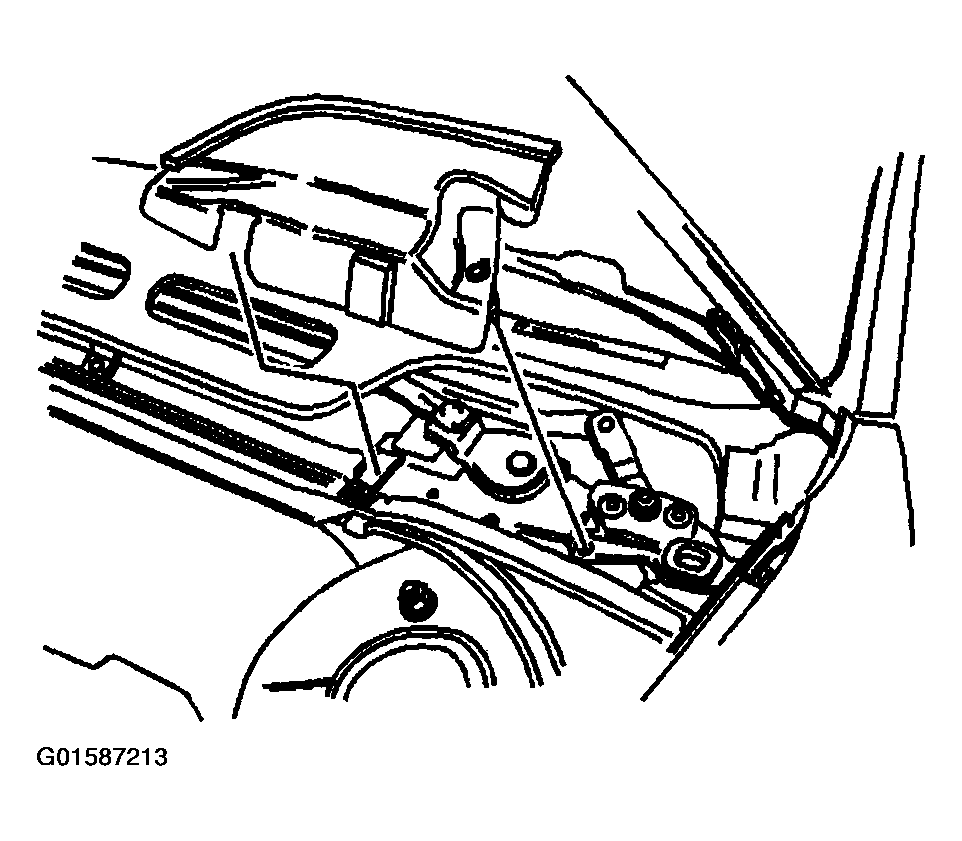

    Fig 1: Positioning Wiper Motor Water Deflector
    G01587213Courtesy of GENERAL MOTORS CORP.
