Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the washer solvent from the washer solvent container.
  2. Remove the washer solvent container filler neck. Refer to WASHER SOLVENT CONTAINER FILLER NECK REPLACEMENT  .
  3. Remove the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT in Lighting Systems.
  4. Remove the washer solvent container screws.

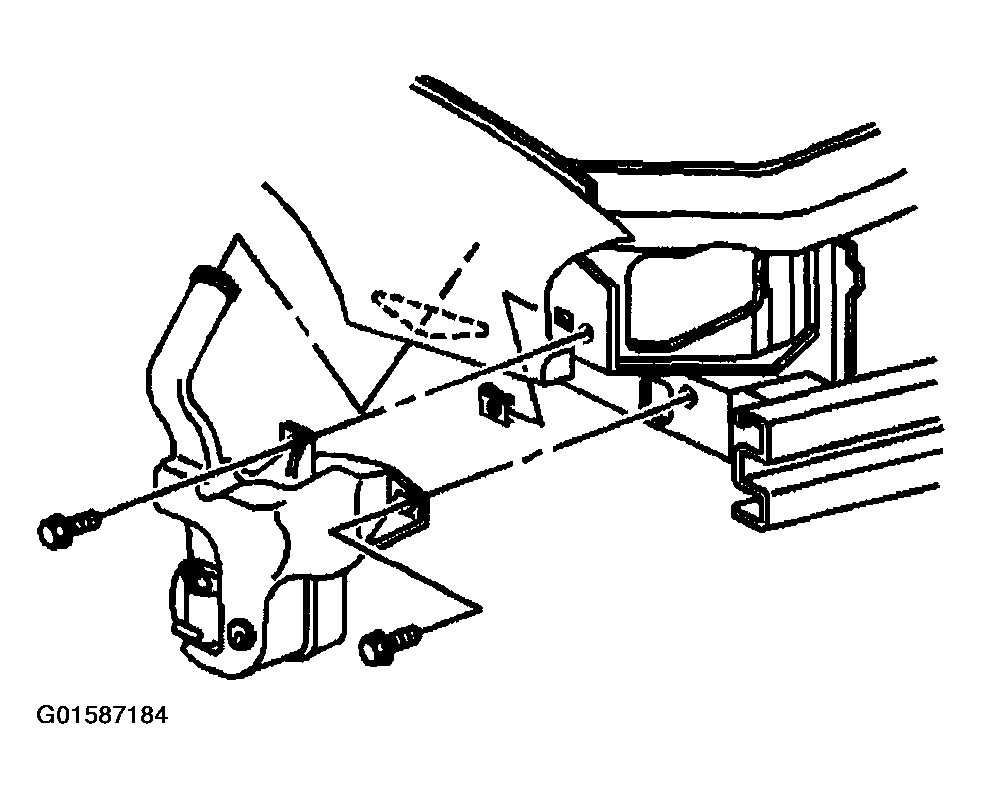

    Fig 1: Removing Washer Solvent Container Screws
    G01587184Courtesy of GENERAL MOTORS CORP.
  5. Remove the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.
  6. Disconnect the washer pump hose.
  7. Disconnect the washer pump electrical connector.
  8. Disconnect the washer solvent level sensor electrical connector.
    Fig 2: Disconnecting Water Pump & Washer Solvent Level Sensor Electrical Connectors
    G01587185Courtesy of GENERAL MOTORS CORP.
  9. Remove the washer solvent container bracket screw.
  10. Remove the washer solvent container from the right frame rail.

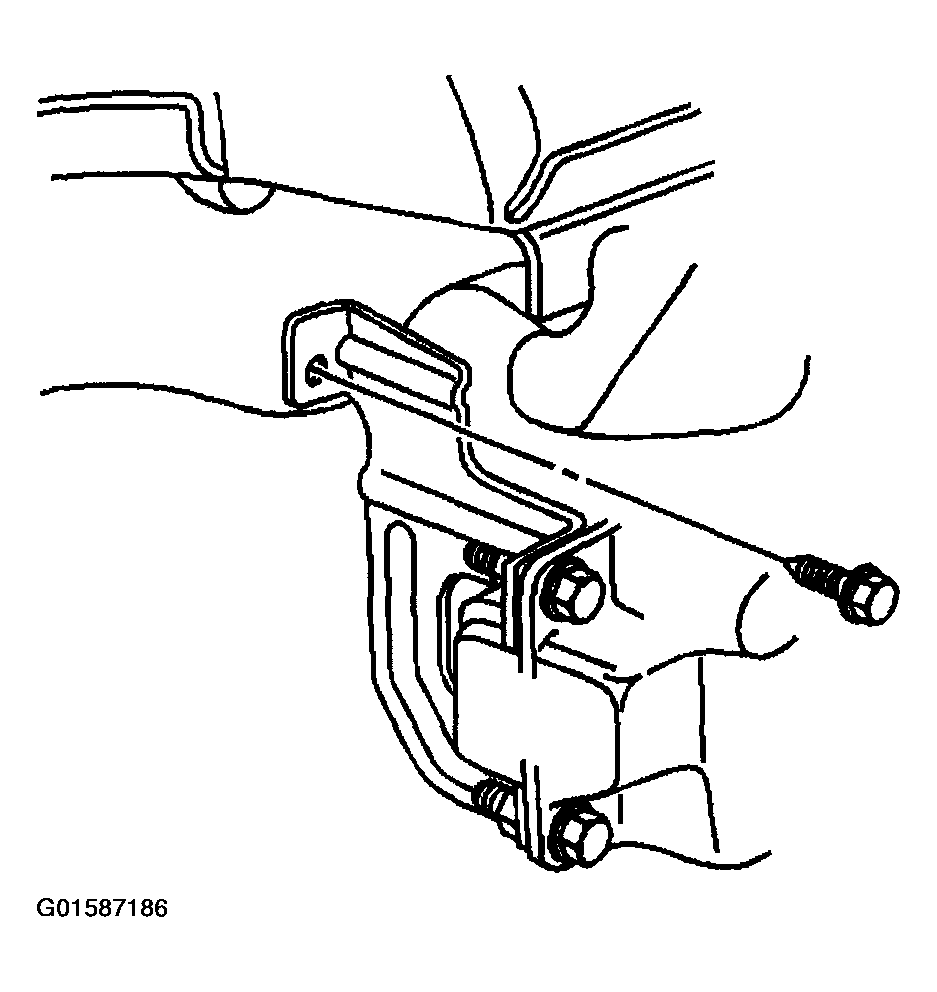

    Fig 3: Removing Washer Solvent Container Bracket Screw
    G01587186Courtesy of GENERAL MOTORS CORP.
