Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper arm so that the wiper blade aligns with the mark made on the windshield before removal.
  2. Install the wiper arm onto the drive shaft.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the nut on the drive shaft.

    Tighten

    Tighten the nut to 30 N+ACQAJA-m (22 lb ft).

  4. Install the cover on the nut.
  5. Connect the washer hose.
  6. Clean the locating mark or masking tape from the windshield.
  7. Operate the wipers and inspect for proper operation.

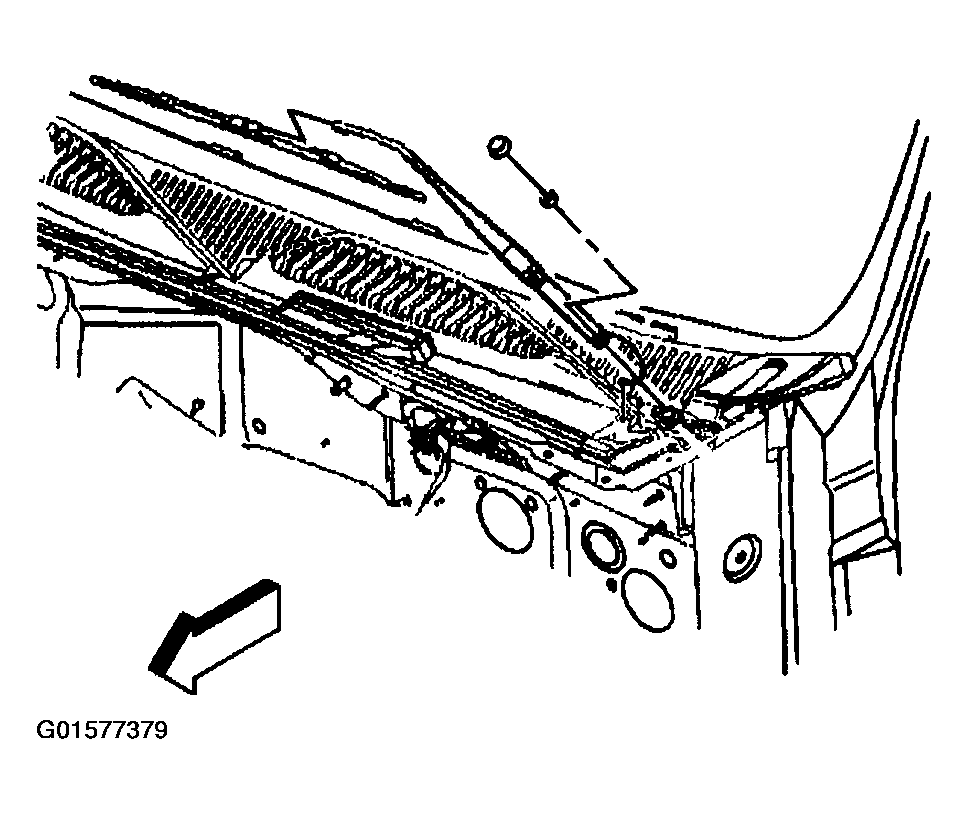

    Fig 1: Installing Wiper Arm
    G01577379Courtesy of GENERAL MOTORS CORP.
