Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb into the socket.

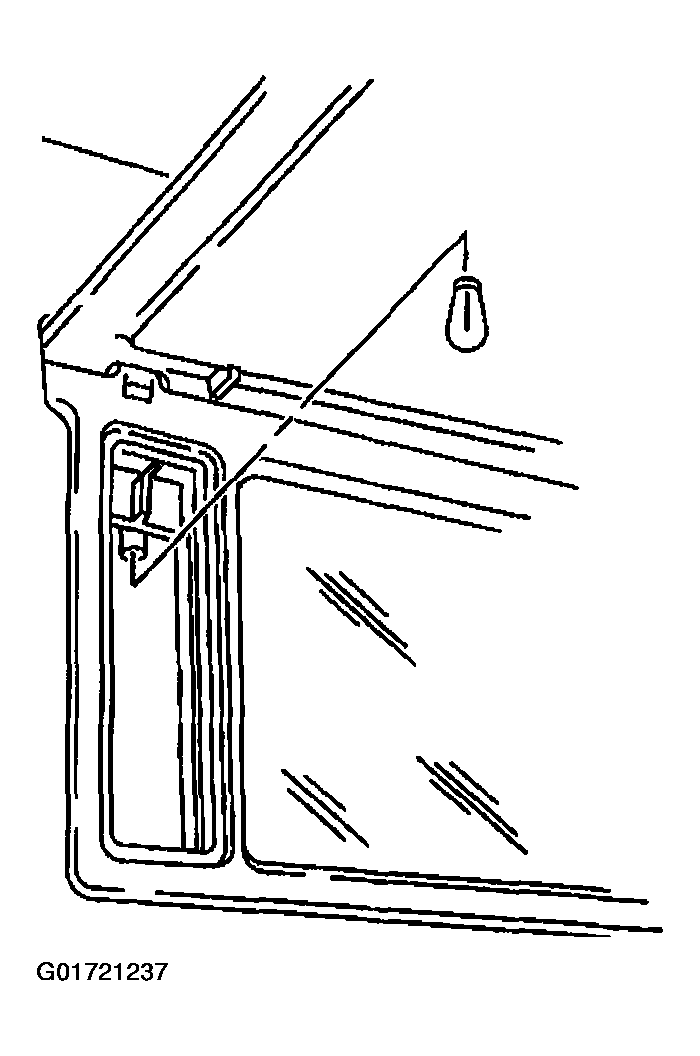

Fig 1: Installing Vanity Mirror Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
Position the vanity mirror lamp lens to the sunshade.
Align the lens tabs into the housing slots and insert the upper edge of the lens first.

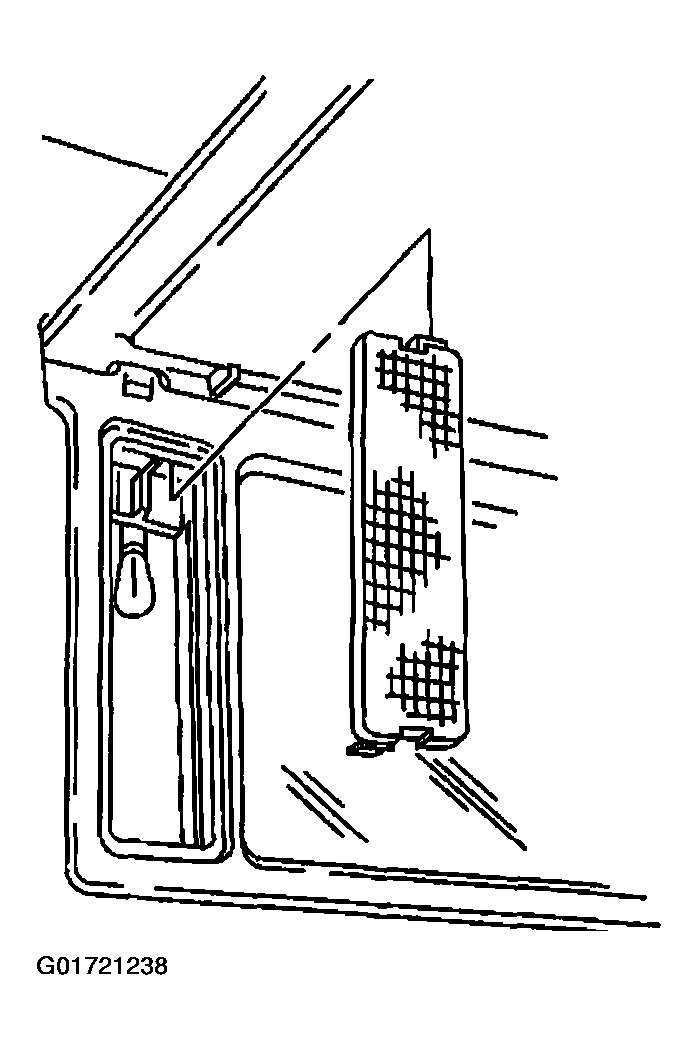

Fig 2: Positioning Vanity Mirror Lamp Lens
Courtesy of GENERAL MOTORS CORP.

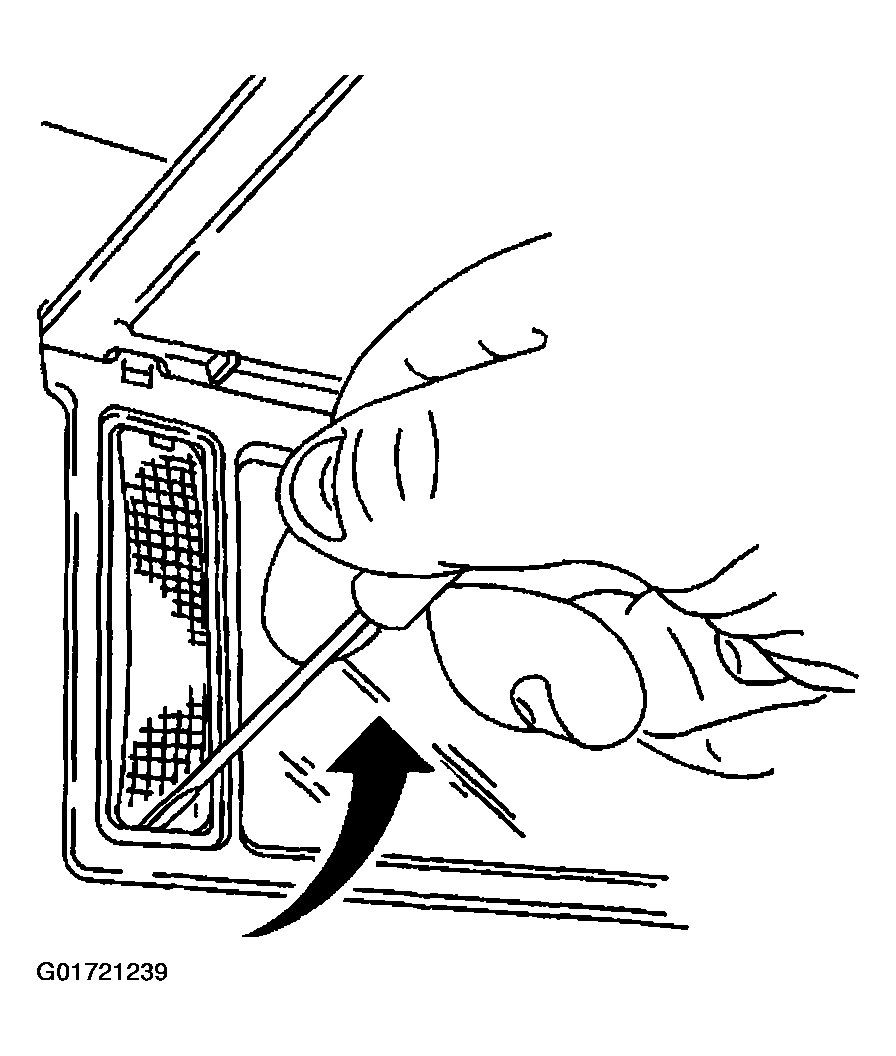

Insert a small flat-bladed tool at the lower edge of the vanity mirror lamp lens then press up to fully install the lens.
Close the lamp cover door and raise the sunshade.

Fig 3: Installing Mirror Vanity Lamp Lens
Courtesy of GENERAL MOTORS CORP.
