Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license plate.
  2. Remove the screws from the license plate lamp.
    Fig 1: Removing License Plate Lamp Screws
    G01721318Courtesy of GENERAL MOTORS CORP.
  3. Remove the license plate lamp from the end gate.
  4. Remove the license plate lamp socket, turning counterclockwise.
  5. Remove the bulb from the license plate lamp socket.

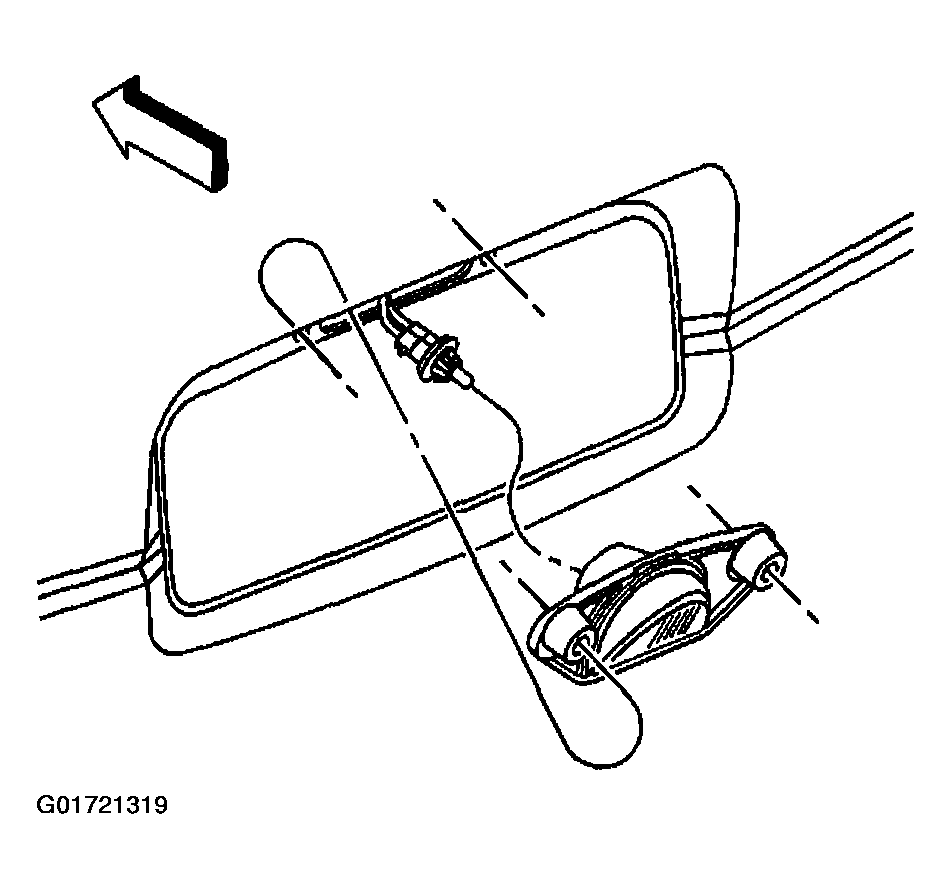

    Fig 2: Removing License Plate Lamp Socket
    G01721319Courtesy of GENERAL MOTORS CORP.
