Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the high mounted stop lamp plastic retainer nuts to the roof panel pressing into place until fully seated.
    Fig 1: High Mounted Stop Lamp Plastic Retainer Nuts
    G01721307Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the high mounted stop lamp.
  3. Position the high mounted stop lamp retainer tabs to the slots in the roof panel.

    Press the high mounted stop lamp in place until fully seated.

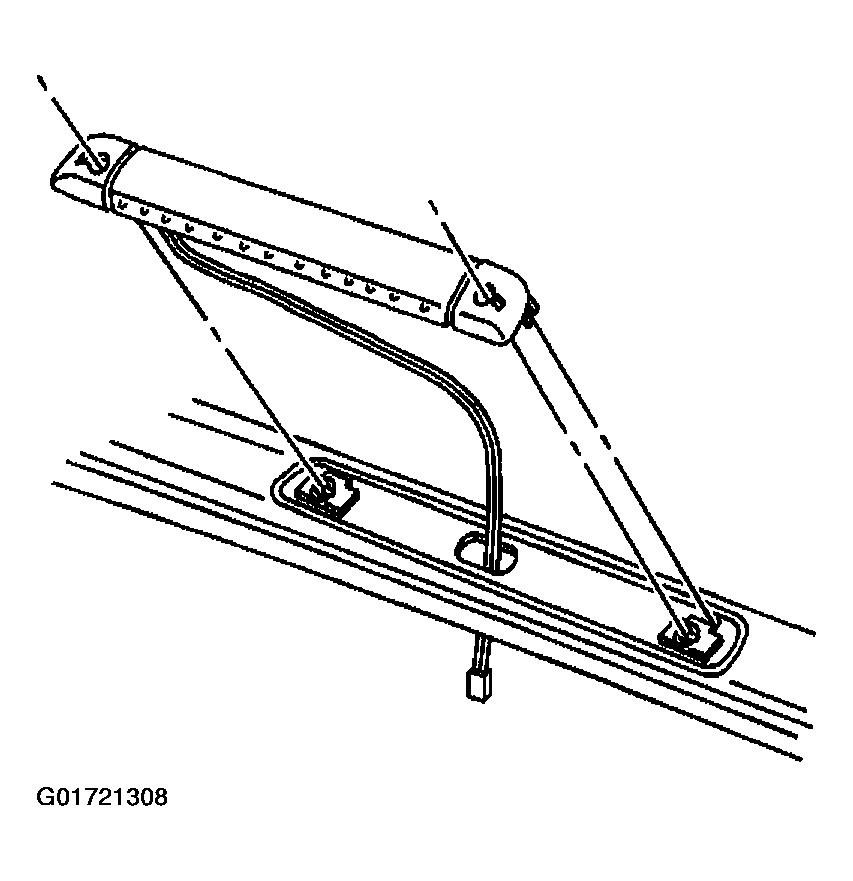

    Fig 2: Positioning High Mounted Stop Lamp
    G01721308Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the screws to the high mounted stop lamp.

    Tighten

    Tighten the high mounted stop lamp screws to 2 N.m (18 lb in).

    Fig 3: Installing High Mounted Stop Lamp Screws
    G01721309Courtesy of GENERAL MOTORS CORP.
