Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .
  2. Grasp the headlamp switch and pull firmly to release the retaining tabs from the I/P carrier.

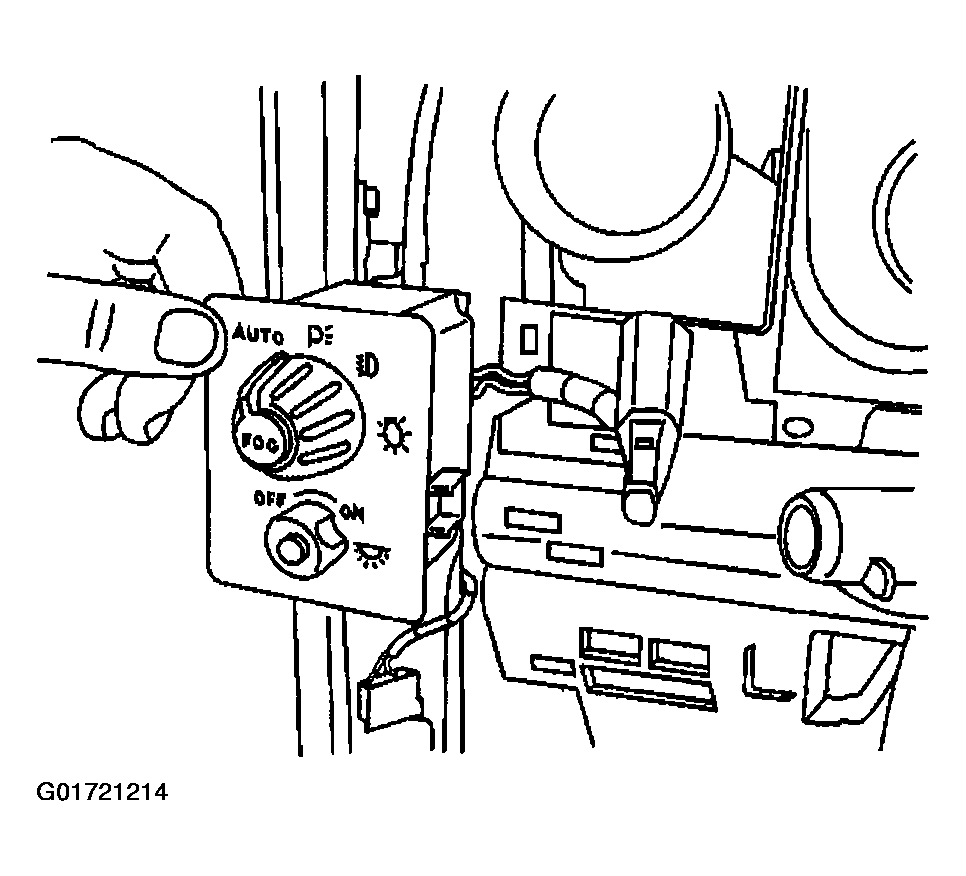

    Fig 1: Releasing Headlamp Switch Retaining Tabs From I/P Carrier
    G01721214Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the headlamp switch.
  4. Remove the headlamp switch.

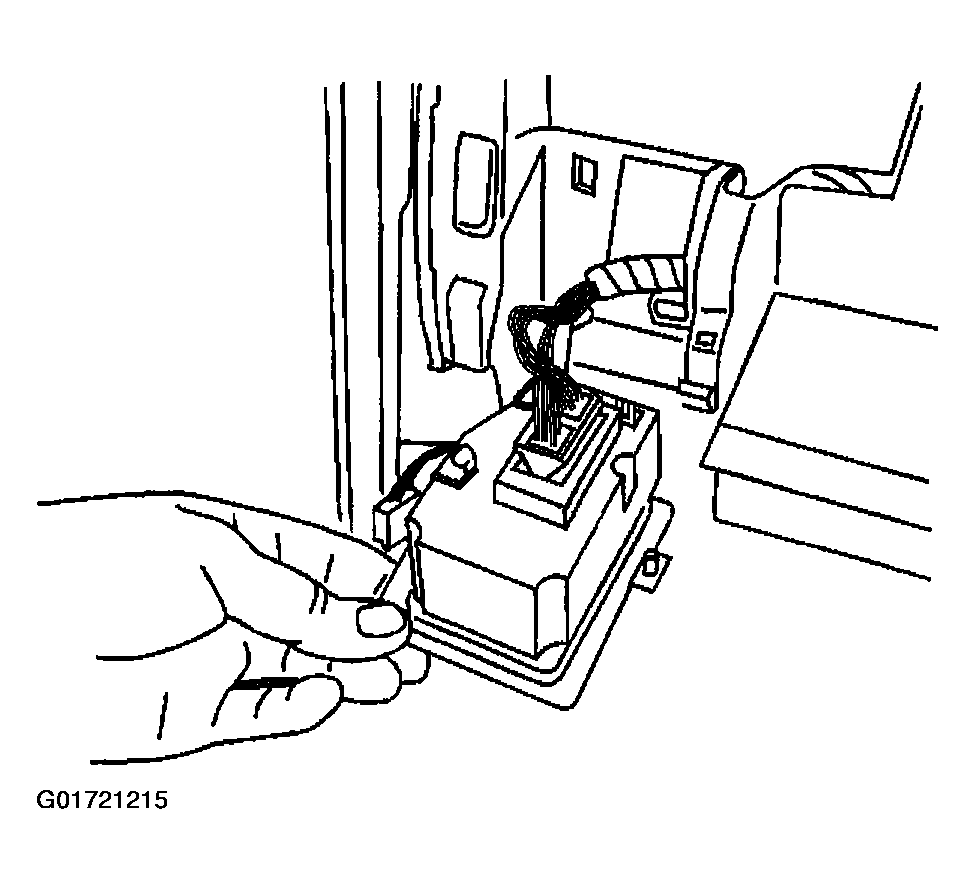

    Fig 2: Removing Headlamp Switch
    G01721215Courtesy of GENERAL MOTORS CORP.
