Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the fog lamp switch.

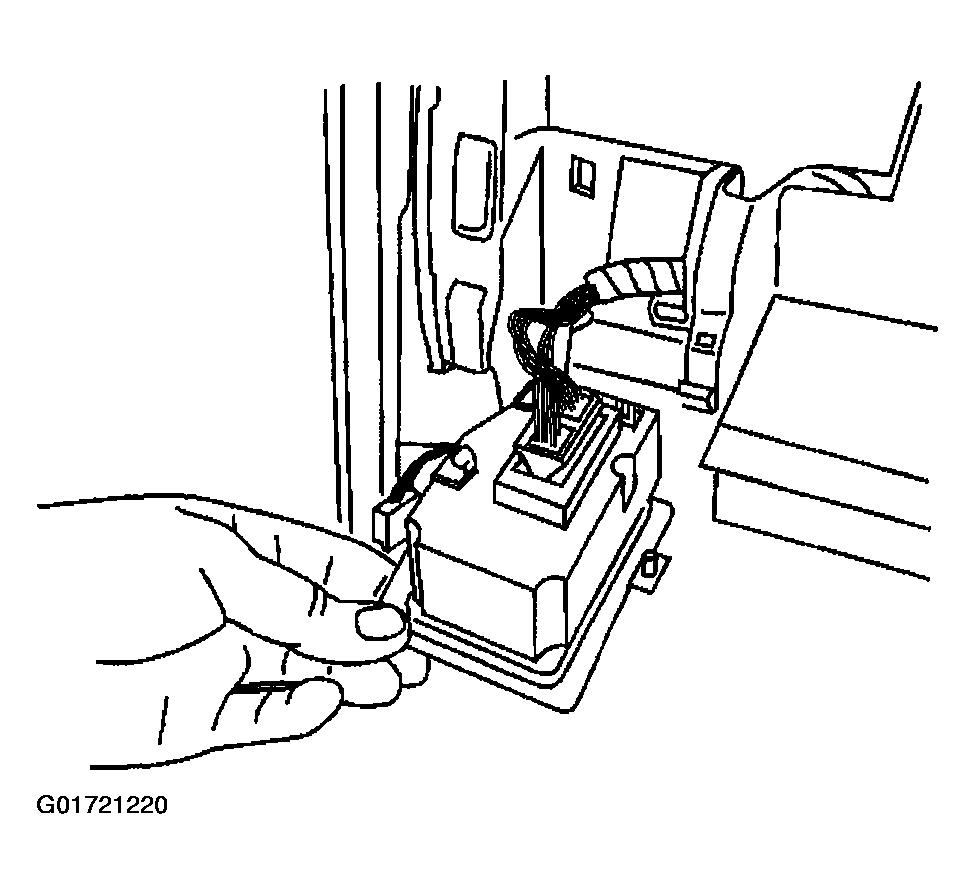

    Fig 1: Connecting Fog Lamp Switch Electrical Connector
    G01721220Courtesy of GENERAL MOTORS CORP.
  2. Position the fog lamp switch to the retainers in the I/P carrier.
  3. Install the fog lamp switch to the I/P carrier. Press the switch into place until fully seated.
  4. Install the I/P cluster trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .

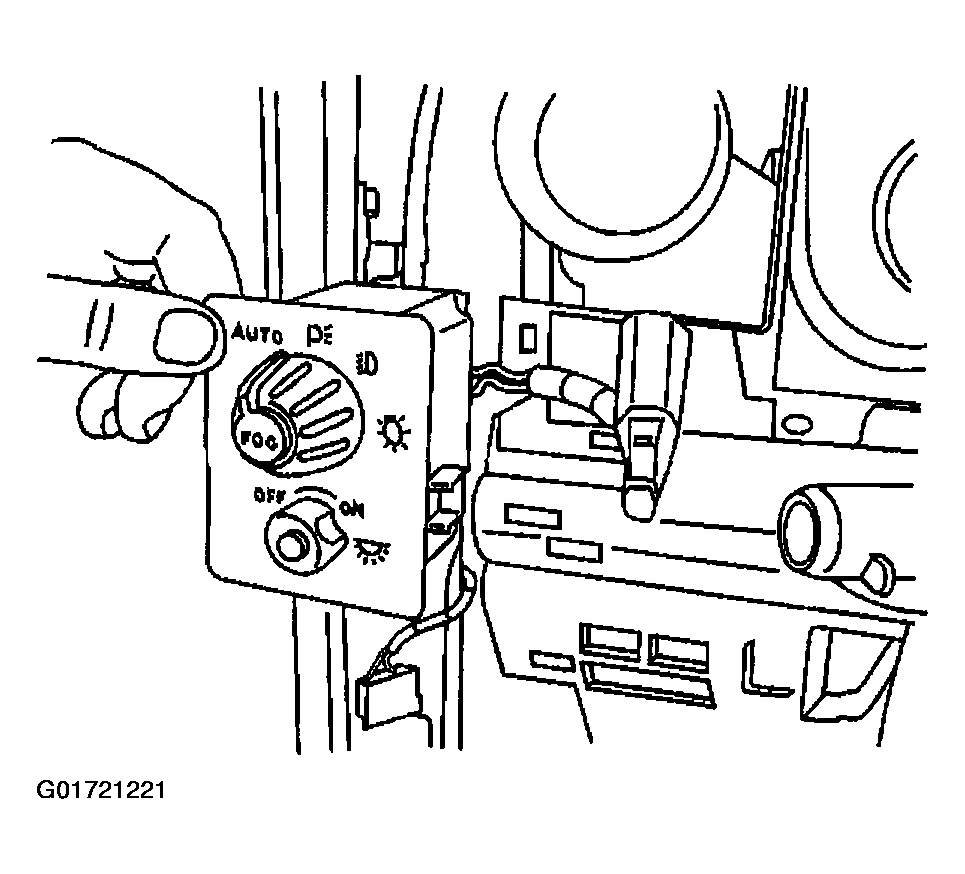

    Fig 2: Positioning Fog Lamp Switch Retaining Tabs From I/P Carrier
    G01721221Courtesy of GENERAL MOTORS CORP.
