Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp bulb to the fog lamp, turning clockwise, if required.
    Fig 1: Installing Fog Lamp Bulb
    G01721278Courtesy of GENERAL MOTORS CORP.
  2. Install the fog lamp to the front bumper fascia.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the fog lamp nuts to the fog lamp.

    Tighten

    Tighten the fog lamp nuts to 10 N.m (89 lb in).

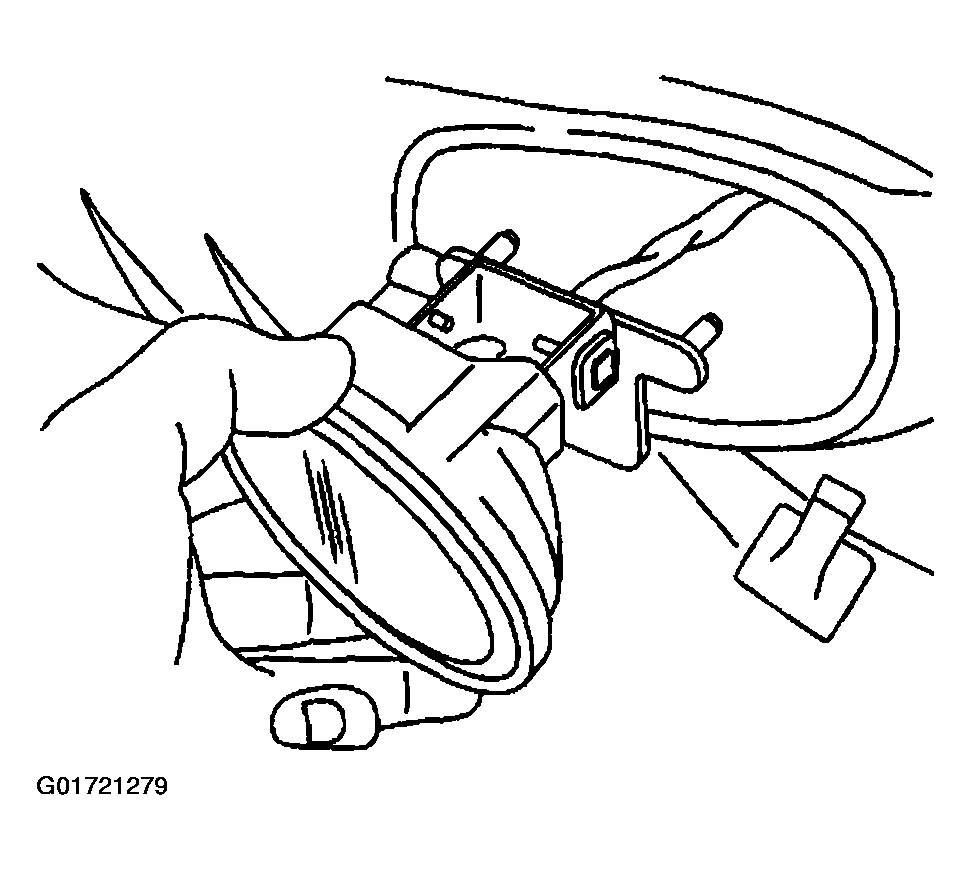

    Fig 2: Installing Fog Lamp (Aztek)
    G01721279Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the fog lamp.
  5. Lower the vehicle.
  6. Check and adjust the fog lamp aim as necessary. Refer to Fog Lamp Aiming Procedure .

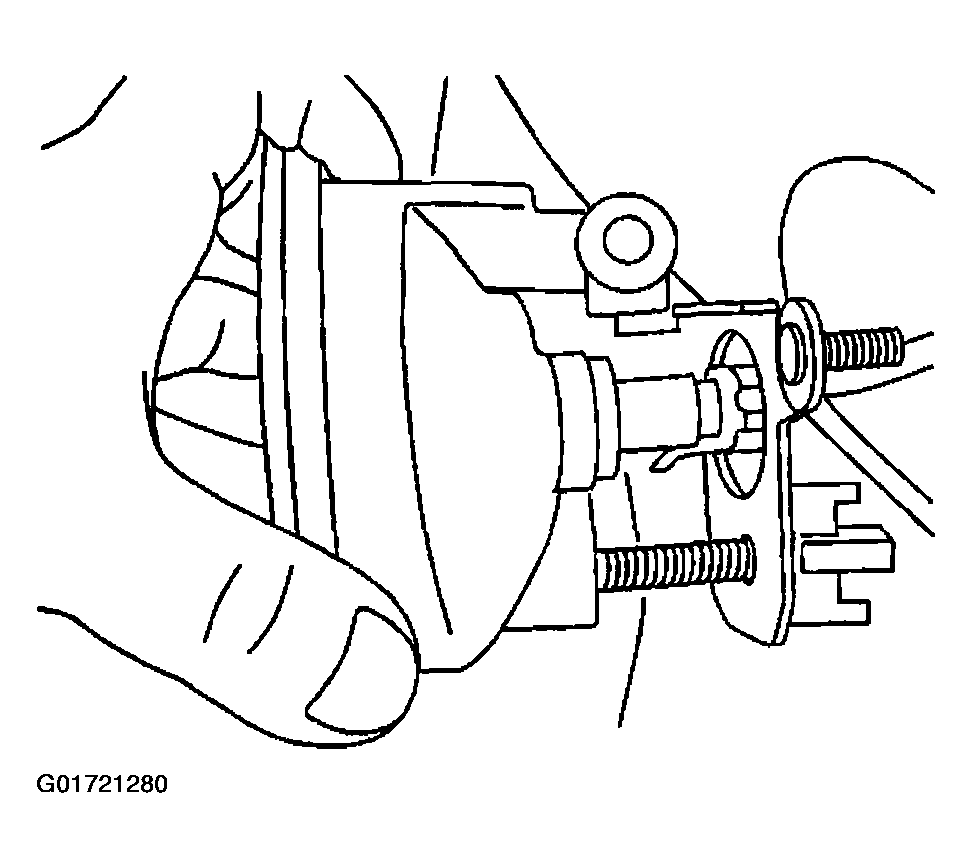

    Fig 3: Connecting Fog Lamp Electrical Connector
    G01721280Courtesy of GENERAL MOTORS CORP.
