Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lift gate applique. Refer to LIFT GATE APPLIQUE REPLACEMENT .
  2. Remove the backup lamp bulb/sockets from the applique by rotating counterclockwise.
  3. Remove the backup lamp bulbs from the socket, if required.

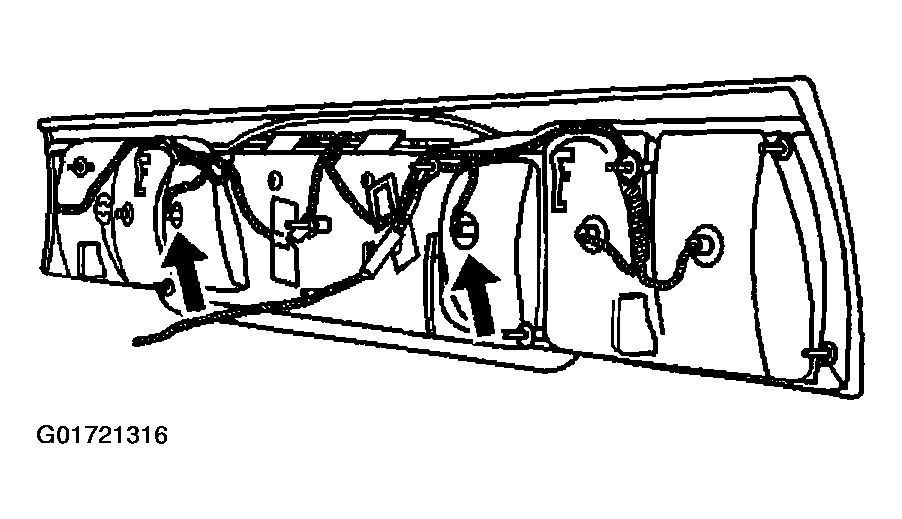

    Fig 1: Removing Backup Lamp Bulbs
    G01721316Courtesy of GENERAL MOTORS CORP.
