Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the backup lamp bulbs to the socket, if removed.
  2. Install the backup lamp bulb/socket to the applique by rotating clockwise.
  3. Install the lift gate applique. Refer to LIFT GATE APPLIQUE REPLACEMENT .

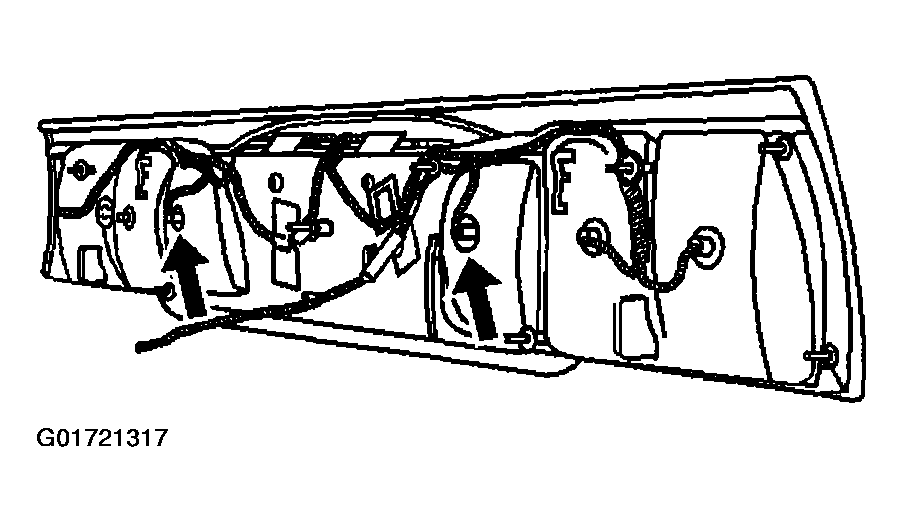

    Fig 1: Installing Backup Lamp Bulbs
    G01721317Courtesy of GENERAL MOTORS CORP.
